Section 5: Technical data
Form QTC3-NM1
Issue date: 12/19/2023
55
Isolator information
1 in. deflection spring isolator cross-reference
Mount
Type
Dimension Data (In.)
W D L B C T H
Type a 3 5/8 7 3/4 6 1/2 4 3/4 1/2 5 5/8
type b 3 5/8 10 1/2 9 1/4 7 3/4 9/16 6

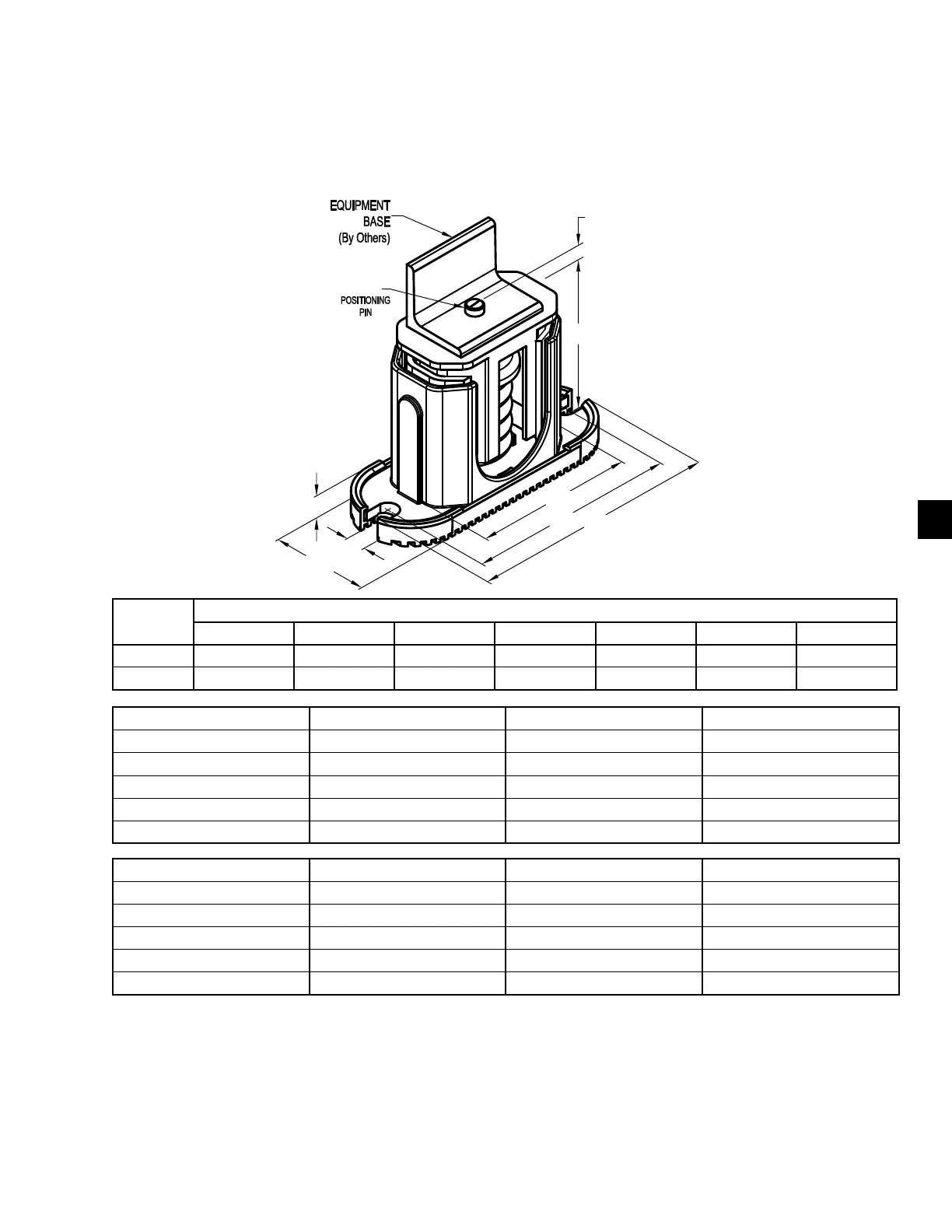

LD13759A
W"
D"
L"
B"
C"
H"
T"
Ø1/2"
5/8"
type a model p/n RATED CAPACITY (LB) DEFLECTION RATED (IN.) COLOR CODE
029-25334-002 (433668) 675 1.320 DK. PURPLE
029-25334-003 (433669) 900 1.020 DK. GREEN
029-25334-004 (433670) 1200 0.900 GRAY
029-25334-005 (433871) 1360 0.770 WHITE
029-25334-006 (433872) 1785 0.880 GRAY/RED
Type b model p/n RATED CAPACITY (LB) DEFLECTION RATED (IN.) COLOR CODE
029-25334-008 (433997) 1350 1.320 DK. PURPLE
029-25334-009 (433998) 1800 1.020 DK. GREEN
029-25334-010 (433999) 2400 0.900 GRAY
029-25334-012 (434000) 2720 0.770 WHITE
029-25334-013 (434001) 3570 0.880 GRAY / RED
