Quantech
107
Section 5: Technical data
Form QTC3-NM1
Issue date: 12/19/2023
55
Clearances
See Figure 37 below for minimum clearances for all
QTC3 units.
NOTES:
1. No obstructions allowed above the unit.
2. Only one adjacent wall may be higher than the unit.
3. Adjacent units should be 10 ft (3 m) apart.

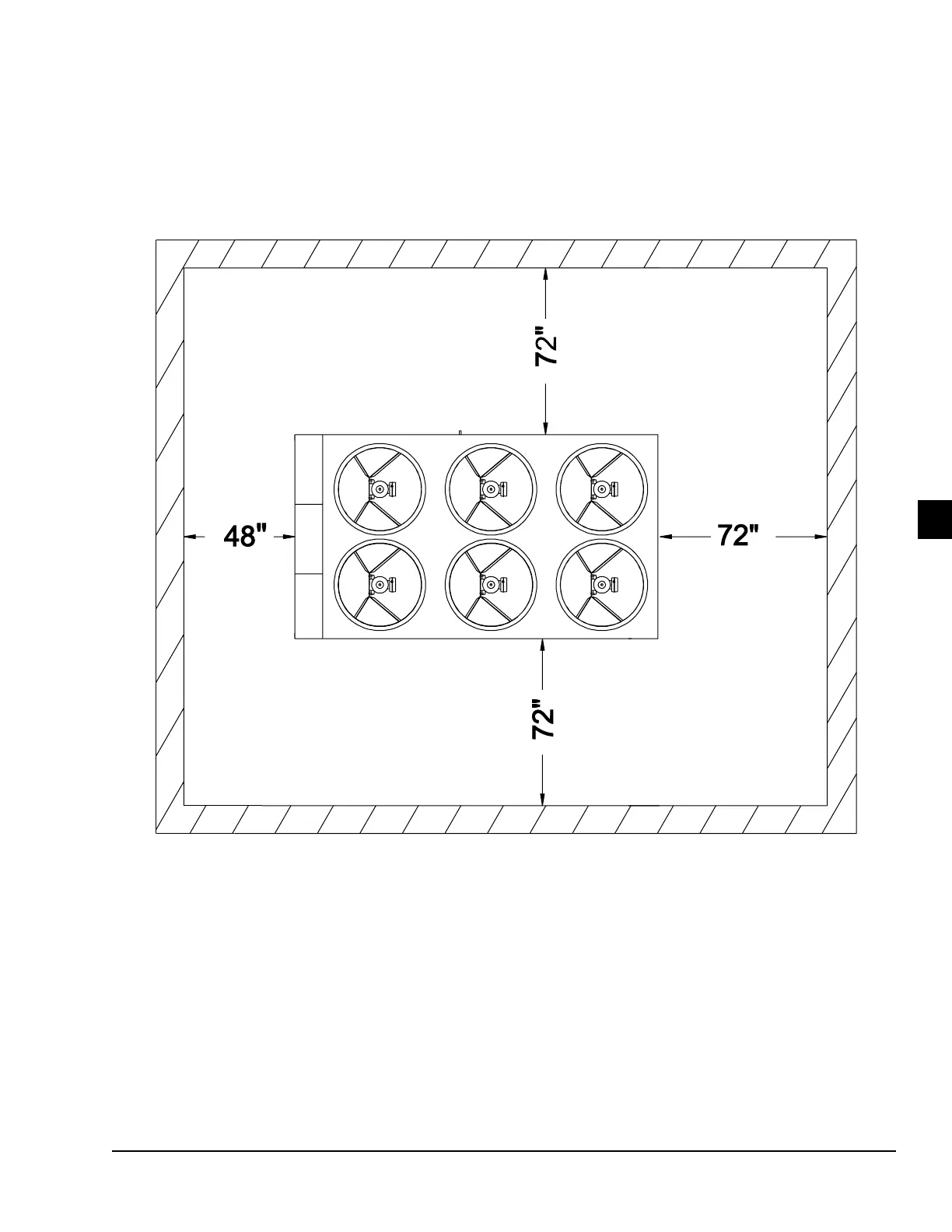

Figure 37: Unit Clearances – All Models
(1.3 m)
(2 m)
(2 m)
(2 m)
