Section 5: Technical data
Form QTC3-NM1
Issue date: 12/19/2023
55
Twelve fan units
Dimensions – 3205THE, 3225THE
035-24059-017 REV-
LD26943
POWER ENTRY
330.2 [13.00] WIDE X 177.8 [7.00] HIGH
CONTROL PANEL BOTTOM DETAIL
20.7 [0.81]
1177 [46.35]
5” VICTAULIC
INLET
5” VICTAULIC
OUTLET
137.5
[5.43]
5” VICTAULIC INLET
5” VICTAULIC OUTLET
2938.4 [115.69]
3” VICTAULIC OUTLET
3” VICTAULIC OUTLET
588.3
[23.16]
6968.9 [274.37] - FRAME LENGTH
7006.0 [275.83] - OVERALL LENGTH
4986.1 [196.30]
6459.3 [254.30]
3154.3 [124.18]
2061.5 [81.16]
1256.1 [49.45]
411.4 [16.20]
1275.7 [50.22]
1085.1 [42.72]
732.9 [28.85]
685.7 [27.00]
(OPTIONAL HEAT
RECOVERY UNIT)
2241.5 [88.25] - FRAME WIDTH
2253.344 [88.71]
OVERALL WIDTH
FRAME HEIGHT
2251.4 [88.64]
2397.7 [94.40]
1611.6 [63.45]
1305.1 [51.38]
1839.5 [72.42]
1753.2 [69.03]
194.6 [7.66]
36.4 [1.43]
ORIGIN
80.3 [3.16]
2077.3 [81.78]
15.9mm [5/8”] DIA
MOUNTING HOLES (TYP.)
Note:
Placement on a level surface free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reliable
operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airow
patterns and possible diminished performance. Johnson Control’s unit controls will optimize operation without nuisance high-pressure safety
cutouts; however, the system designer must consider potential performance degradation. Access to the unit control center assumes the unit is
no higher than on spring isolators. Recommended minimum clearances: Side to wall – 6 ft; rear to wall – 6 ft; control panel to end wall – 4 ft;
top – no obstructions allowed; distance between adjacent units – 10 ft. No more than one adjacent wall may be higher than the unit.

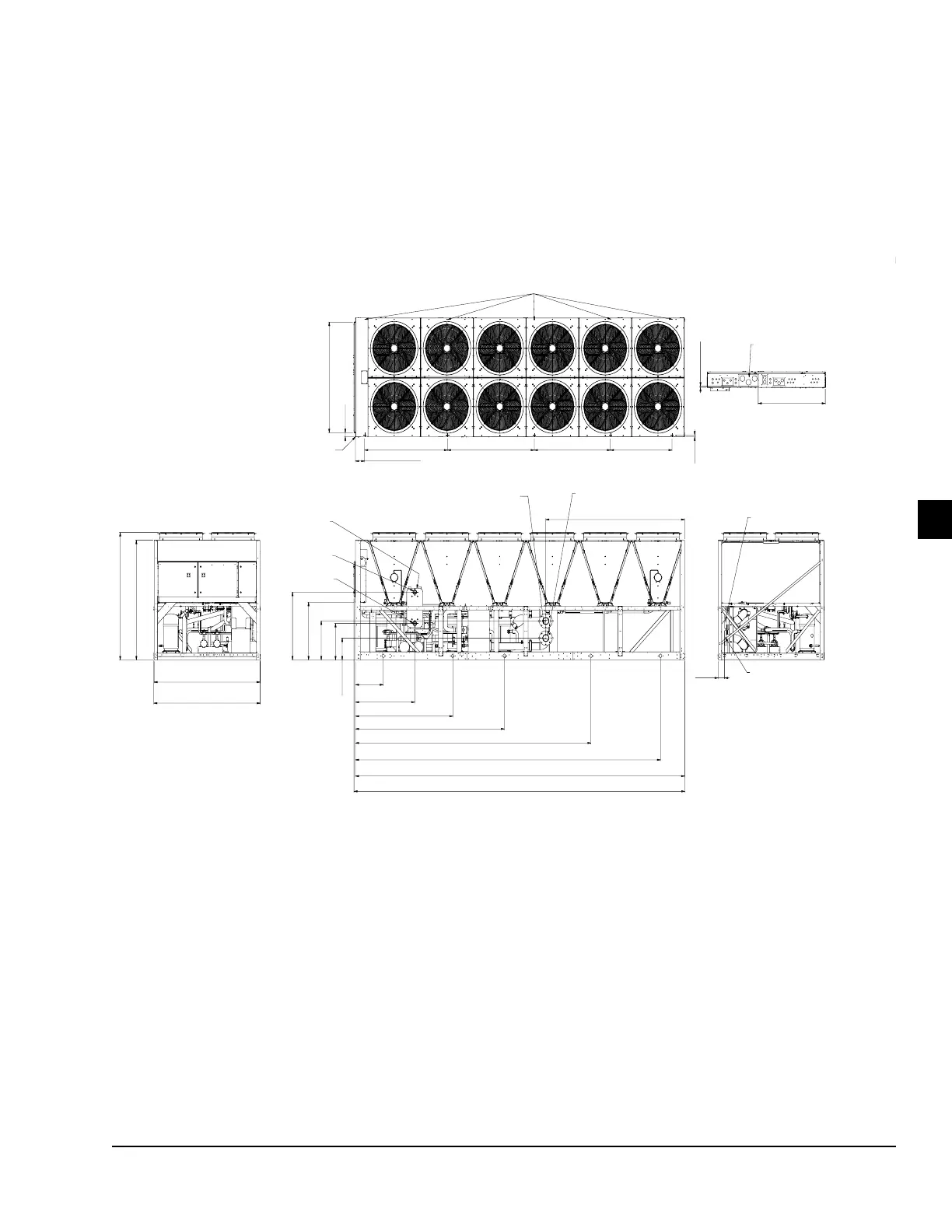

Figure 35: Twelve Fan Units Dimensions - 3205THE, 3225THE
