Section 6: Commissioning
Determining proper oil levels
The following charts list the proper oil levels in tandem
and trio compressor manifold sets.
TANDEM
COMPRESSOR
COMPRESSOR
STATUS
OIL LEVEL
1 on 1/8 to full SG
2 on Bottom of SG
1 o󰀨 Bottom of SG
2 on 1/8 to full SG
1 on 1/8 to full SG
2 o󰀨 Bottom of SG
TRIO
COMPRESSOR
COMPRESSOR
STATUS
OIL LEVEL
1 on 1/8 to full SG
2 on Bottom of SG
3 on 1/8 to full SG
1 on 1/8 to full SG
2 o󰀨 Bottom of SG
3 on 1/8 to full SG
1 o󰀨 Bottom of SG
2 on Bottom of SG
3 on 1/8 to full SG
1 on 1/8 to full SG
2 on Bottom of SG
3 o󰀨 Bottom of SG
1 on 1/8 to full SG
2 o󰀨 Bottom of SG
3 o󰀨 Bottom of SG
1 o󰀨 Bottom of SG
2 o󰀨 Bottom of SG
3 on 1/8 to full SG
1 o󰀨 Bottom of SG
2 on 1/8 to full SG
3 o󰀨 Bottom of SG
1 2
LD29440

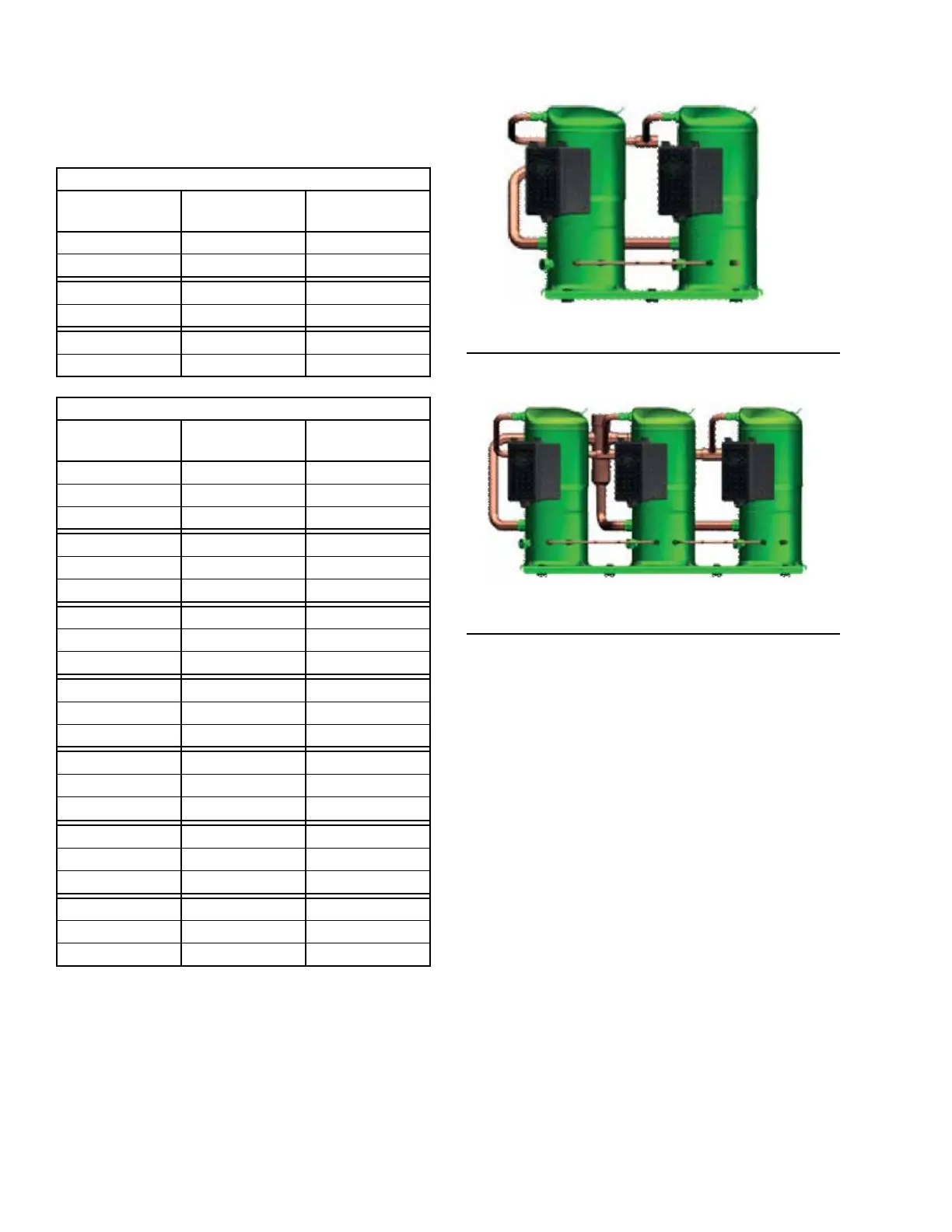

Figure 41: Tandem Set
123
LD29441
Figure 42: Trio Set
