Section 6: Commissioning
Leave all other settings not listed in the following table in their default values.
Table 14: Drive programming parameters
Parameter code Description Setting
9902 Function select 0
9905 Motor rated voltage See motor nameplate
(208 V, 230 V, 460 V)
9906 Motor rated current See motor nameplate
9907 Motor frequency See motor nameplate
(50 Hz, 60 Hz)
1103 Command source mode 0
1300 Analog input 1 signal format U 0-10
1301 Analog input 1 oset 23.5
1302 Analog input 1 scaling 1850
2007 Min frequency limit 0
2008 Max frequency limit See motor nameplate
(50 Hz, 60 Hz)
2102 Stop mode 0
2202 Accel time 30.0
2203 Decel time 30.0
2601 Energy optimizer 0

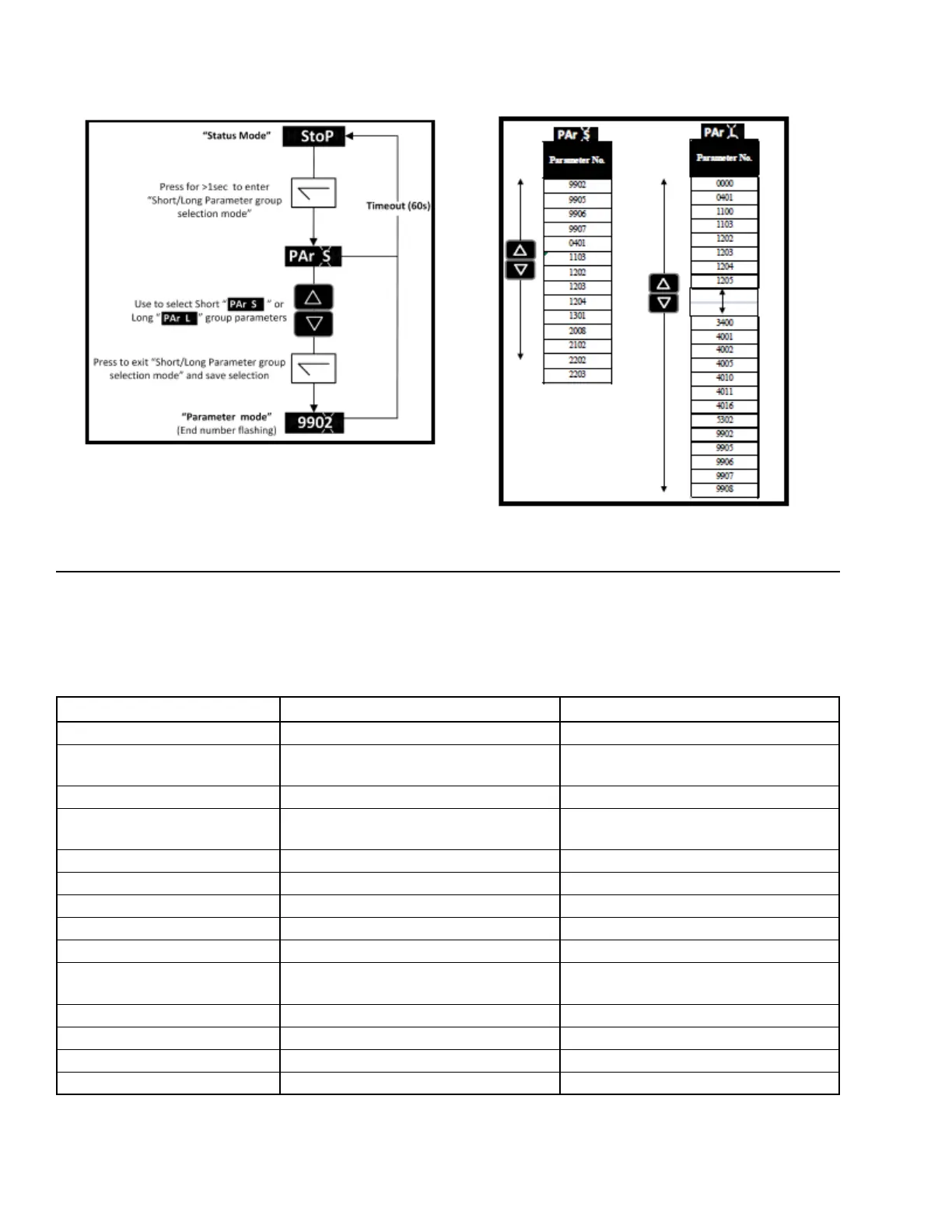

GROUP NAVIGATION PARAMETER STRUCTURE
LD29434
Figure 39: Drive Display
