Quantech QWC3050T-200T - Page 103

SECTION 5 – TECHNICAL DATA
FORM QWC3-NM1
ISSUE DATE:11/20/2020
QUANTECH
103
5
ENGLISH

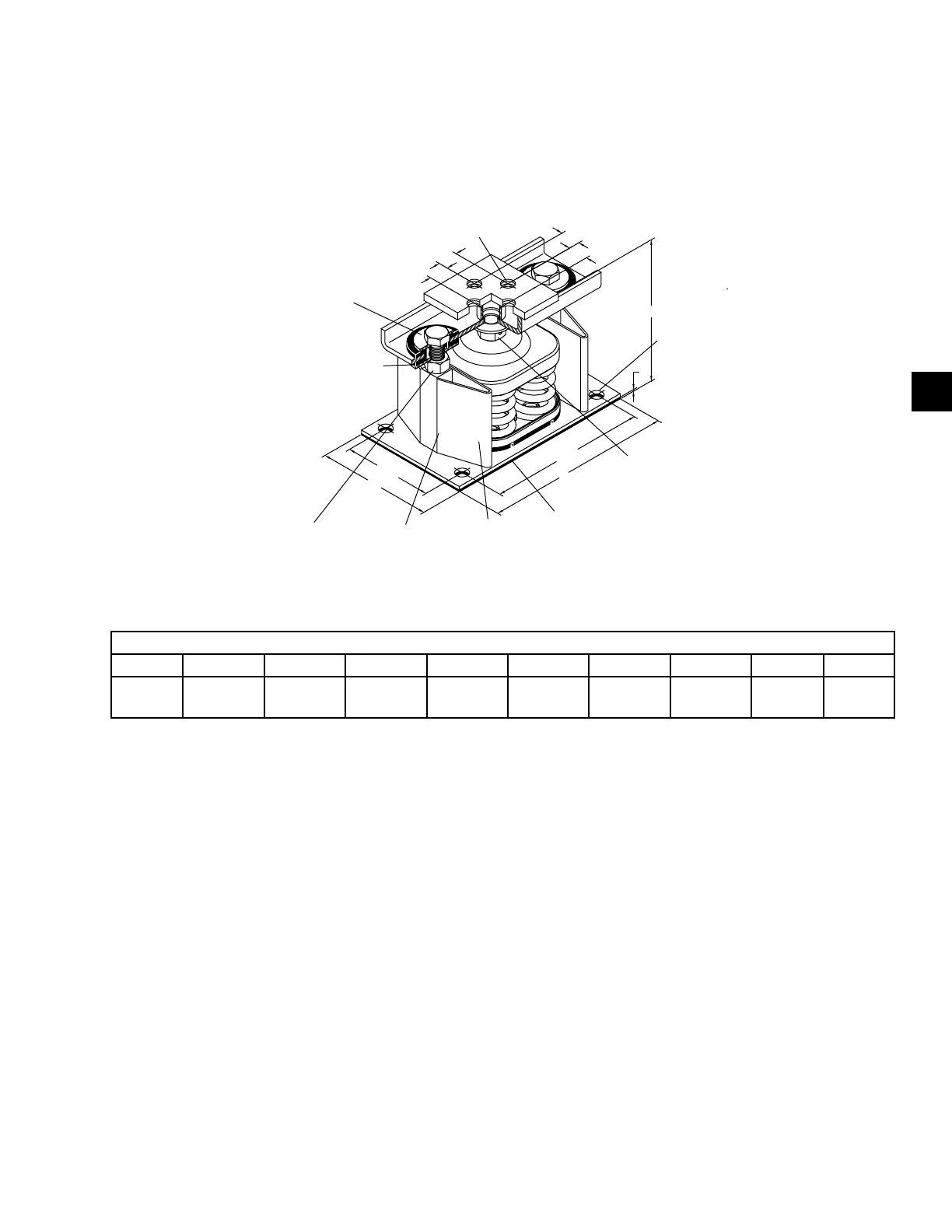

SIZE H T D E L HCL W HCW MBD
2-C2
8 1/2
(215.9)
3/8
(9.5)
5/8
(15.9)
1 3/8
(34.9)
14
(355.6)
12 1/4
(311.2)
5 1/4
(133.4)
3 1/ 2
(88.9)
5/8 “
SLRS SEISMIC DEFLECTION SPRING ISOLATOR CROSS-REFERENCE











































Units shipped before June 15, 2008
