SECTION 5 – TECHNICAL DATA
FORM QWC3-NM1
ISSUE DATE:11/20/2020
QUANTECH
91
5

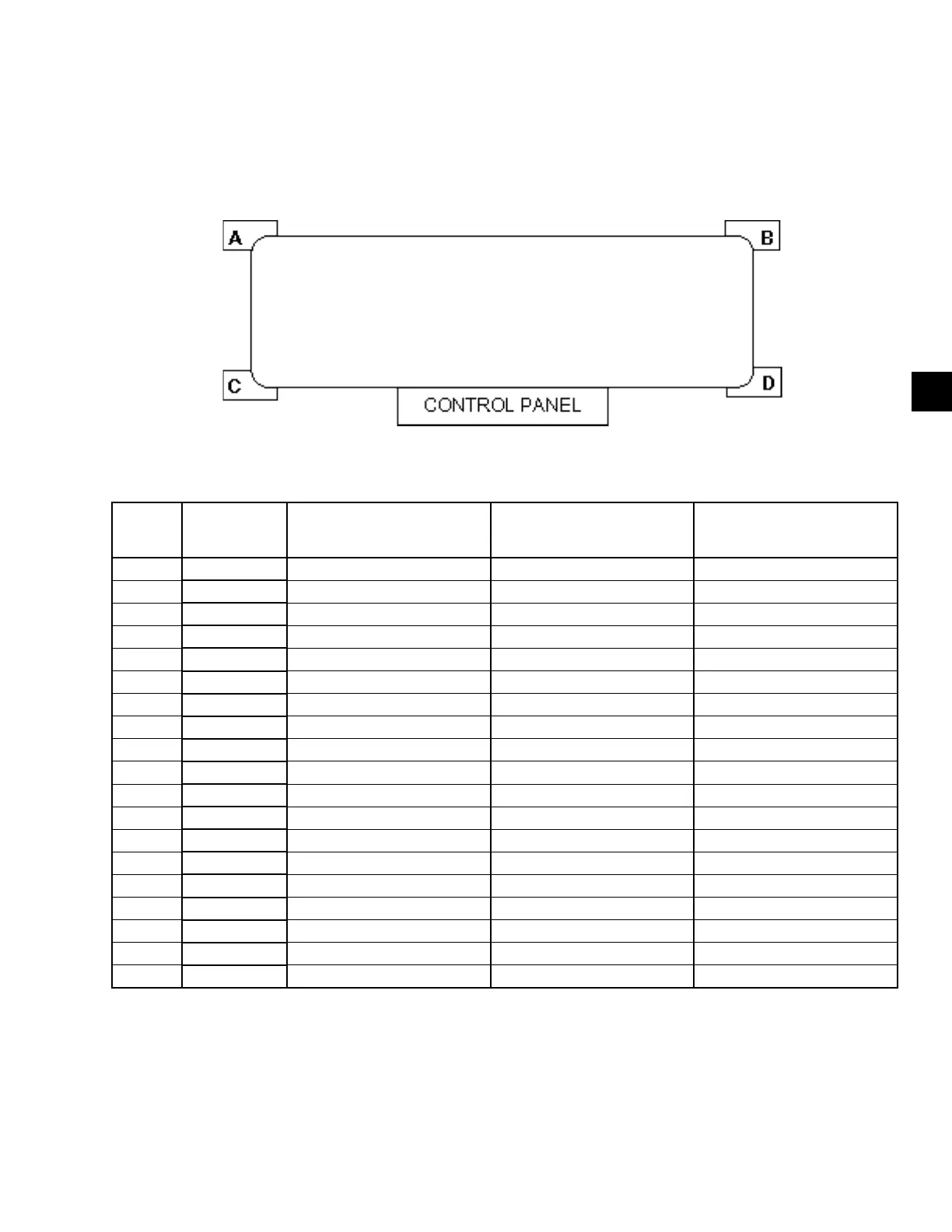

ISOLATOR SELECTION DATA
MODEL EFFICIENCY
ELASTOMERIC
ISOLATOR
1” DEFLECTION
ISOLATOR
SEISMIC
ISOLATOR
050T SE RD-4 Brick Red CP-1D-1360 White Red/Black
060T SE RD-4 Brick Red CP-1D-1360 White Pink
070T SE RD-4 Brick Red CP-1D-1785N Gray/Red Pink
080T SE RD-4 Brick Red CP-2D-1800 Dark Green Pink
090T SE RD-4 Brick Red CP-1D-1785N Gray/Red Pink
100T SE RD-4 Brick Red CP-2D-1800 Dark Green Pink
115T SE RD-4 Brick Red CP-2D-1800 Dark Green Pink
130T SE RD-4 Brick Red C2P-1D-2400 Gray Pink/Gray
150T SE RD-4 Charcoal C2P-1D-2720 White Pink/Gray/Orange
170T SE RD-4 Charcoal C2P-1D-2720 White Pink/Gray
200T SE RD-4 Charcoal C2P-1D-3570 Gray/Red Pink/Gray/Orange
060T HE RD-4 Brick Red CP-1D-1785N Gray/Red Pink
070T HE RD-4 Brick Red CP-2D-1800 Dark Green Pink
080T HE RD-4 Brick Red CP-2D-1800 Dark Green Pink/Gray
090T HE RD-4 Charcoal C2P-1D-2400 Gray Pink/Gray
095T HE RD-4 Charcoal C2P-1D-2400 Gray Pink/Gray
115T HE RD-4 Brick Red C2P-1D-2400 Gray Pink/Gray
130T HE RD-4 Charcoal C2P-1D-2720 White Pink/Gray
150T HE RD-4 Charcoal C2P-1D-3570 Gray/Red Pink/Gray/Orange
Units shipped on or after June 15, 2008
