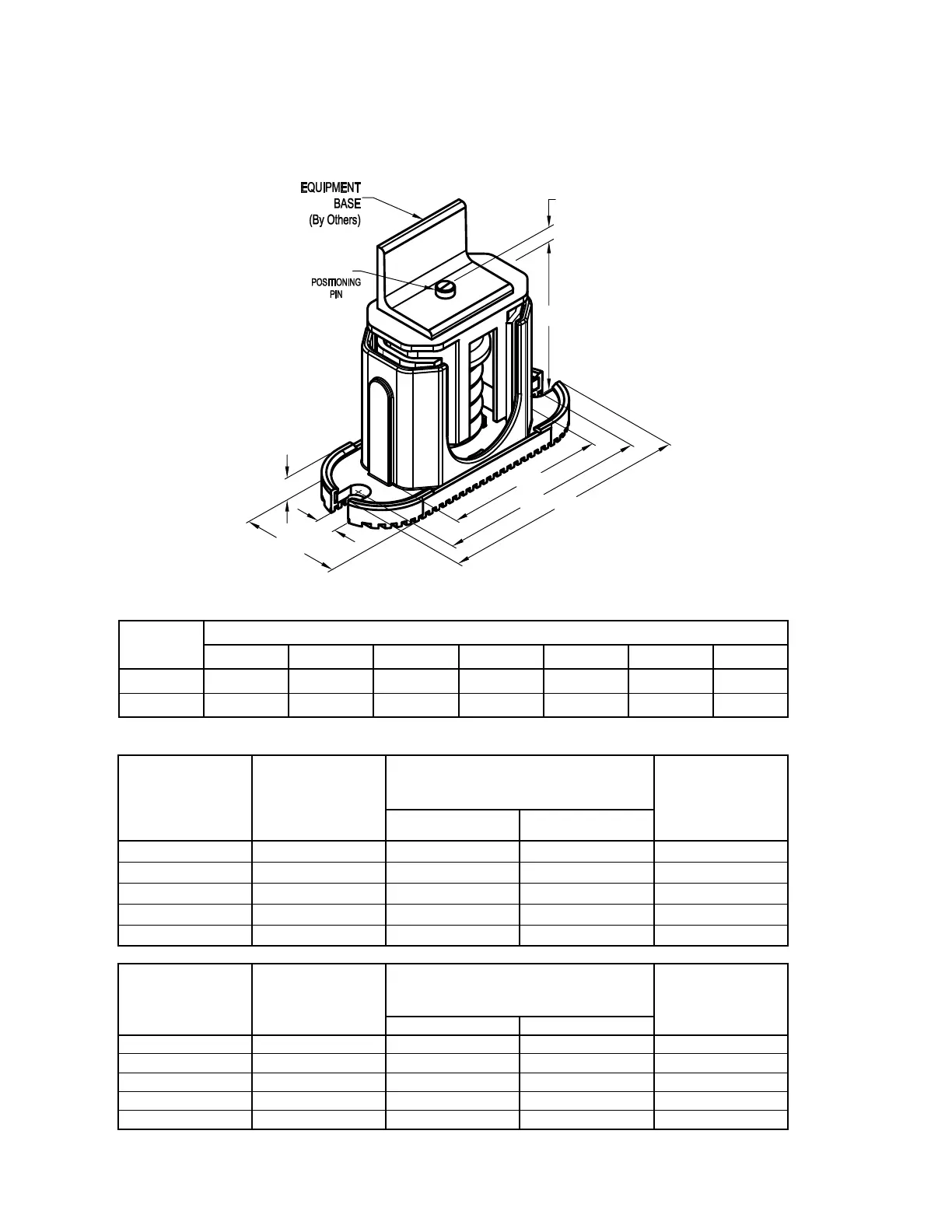

ONE INCH DEFLECTION SPRING ISOLATORS CROSS-REFERENCE
Units shipped on or after June 15, 2008
LD13759A
W"
D"
L"
B"
C"
H"
T"
Ø1/2"
5/8"
CPX-X-
MOUNT
TYPE
DIMENSION DATA (INCHES)
W D L B C T H
CP 3 5/8 7-3/4 6-1/2 4-3/4 1/2 5-5/8
C2P 3 5/8 10-1/2 9-1/4 7-3/4 9/16 6
MODEL
NUMBER
COLOR
CODE
RATED CAPACITY (FOR UNITS WITH
ALL LOAD POINTS LESS THAN
1785 LBS (810 KG)
QUANTECH P/N
(LBS.) (KG)
CP-1D-510 BLACK Up thru 434 Up thru 197 029-25334-002
CP-1D-900 DARK GREEN 435 thru 765 198 thru 347 029-25334-003
CP-1D-1200 GRAY 766 thru 1020 348 thru 463 029-25334-004
CP-1D-1360 WHITE 1021 thru 1156 464 thru 524 029-25334-005
CP-1D-1785N GRAY/RED 1157 thru 1785 525 thru 810 029-25334-006
MODEL
NUMBER
COLOR
CODE
RATED CAPACITY (FOR UNITS WITH
ANY LOAD POINT ABOVE 1518 LBS
(689 KG)
QUANTECH P/N
(LBS.) (KG)
C2P-1D-1350 DARK PURPLE Up thru 1148 Up to 521 029-25334-008
C2P-1D-1800 DARK GREEN 1149 thru 1530 522 - 694 029-25334-009
C2P-1D-2400 GRAY 1531 thru 2040 695 - 925 029-25334-010
C2P-1D-2720 WHITE 2041 thru 2312 926 - 1049 029-25334-012
C2P-1D-3570N GRAY/RED 2313 thru 3570 1050 - 1619 029-25334-013
