Quantum Fireball Plus AS 10.2/20.5/30.0/40.0/60.0 GB AT 3-1
Chapter 3
Chapter 3Chapter 3
Chapter 3
INSTALLATION
INSTALLATIONINSTALLATION
INSTALLATION
This chapter explains how to unpack, configure, mount, and connect the Quantum
Fireball Plus AS 10.2/20.5/30.0/40.0/60.0 GB AT hard disk drive prior to
operation. It also explains how to start up and operate the drive.
3.1
3.13.1
3.1 SPACE REQUIREMENTS
SPACE REQUIREMENTSSPACE REQUIREMENTS
SPACE REQUIREMENTS
The Quantum Fireball Plus AS hard disk drives are shipped without a faceplate.

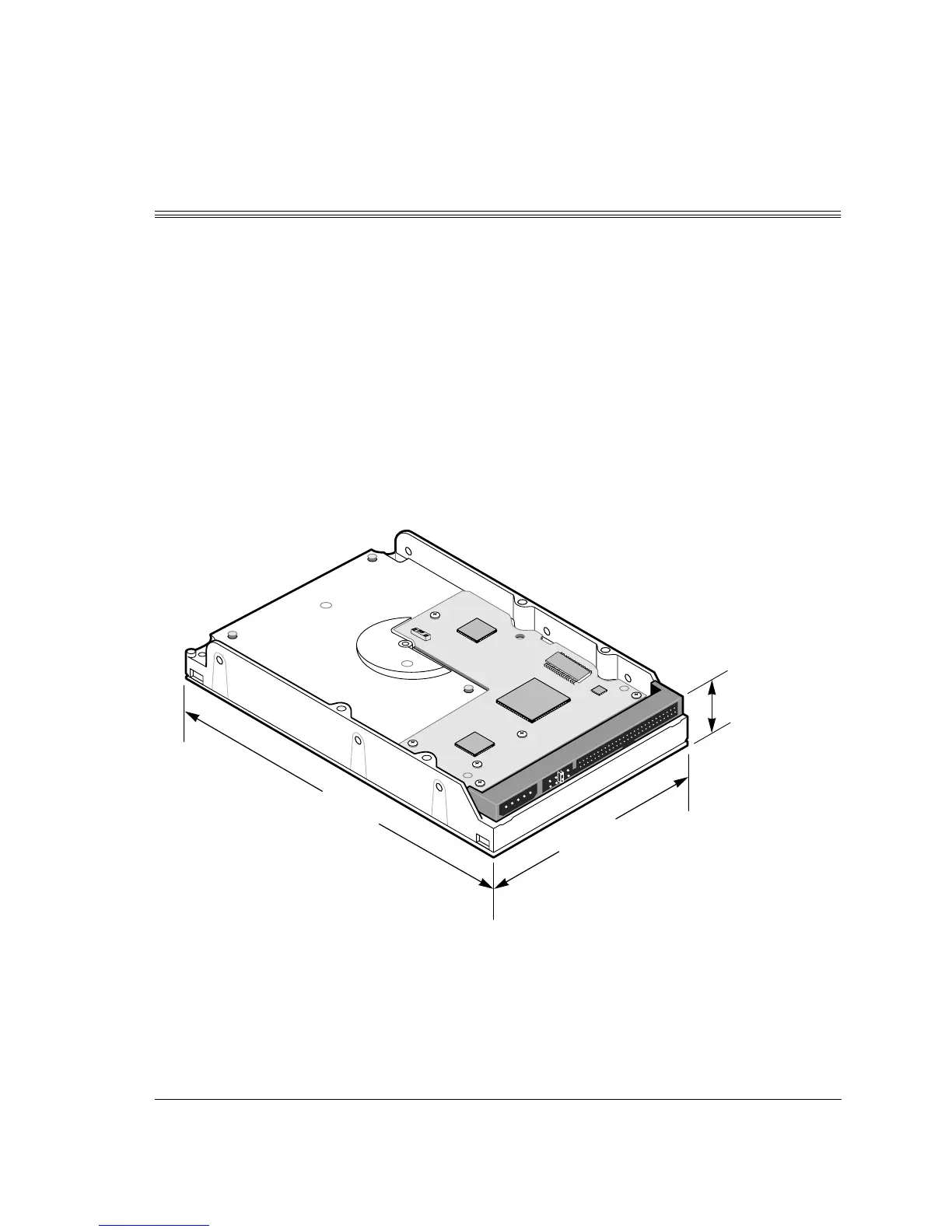

Figure 3-1 shows the external dimensions of the Quantum Fireball Plus AS 10.2/
20.5/30.0/40.0/60.0 GB AT drives.
Figure 3-1
Figure 3-1 Figure 3-1
Figure 3-1
Mechanical Dimensions of Quantum Fireball Plus AS Hard Disk Drive
26.1 mm (max)
(1.00 inches)
101.6 ± 0.25 mm
(4.00 inches)
147 mm (max)
(5.75 inches)
