Quatech Serial Device Server User Manual

Introduction Quatech SDS User’s Manual
Network port
All SDS devices have one eight-pin RJ-45 Ethernet port on the back
panel.

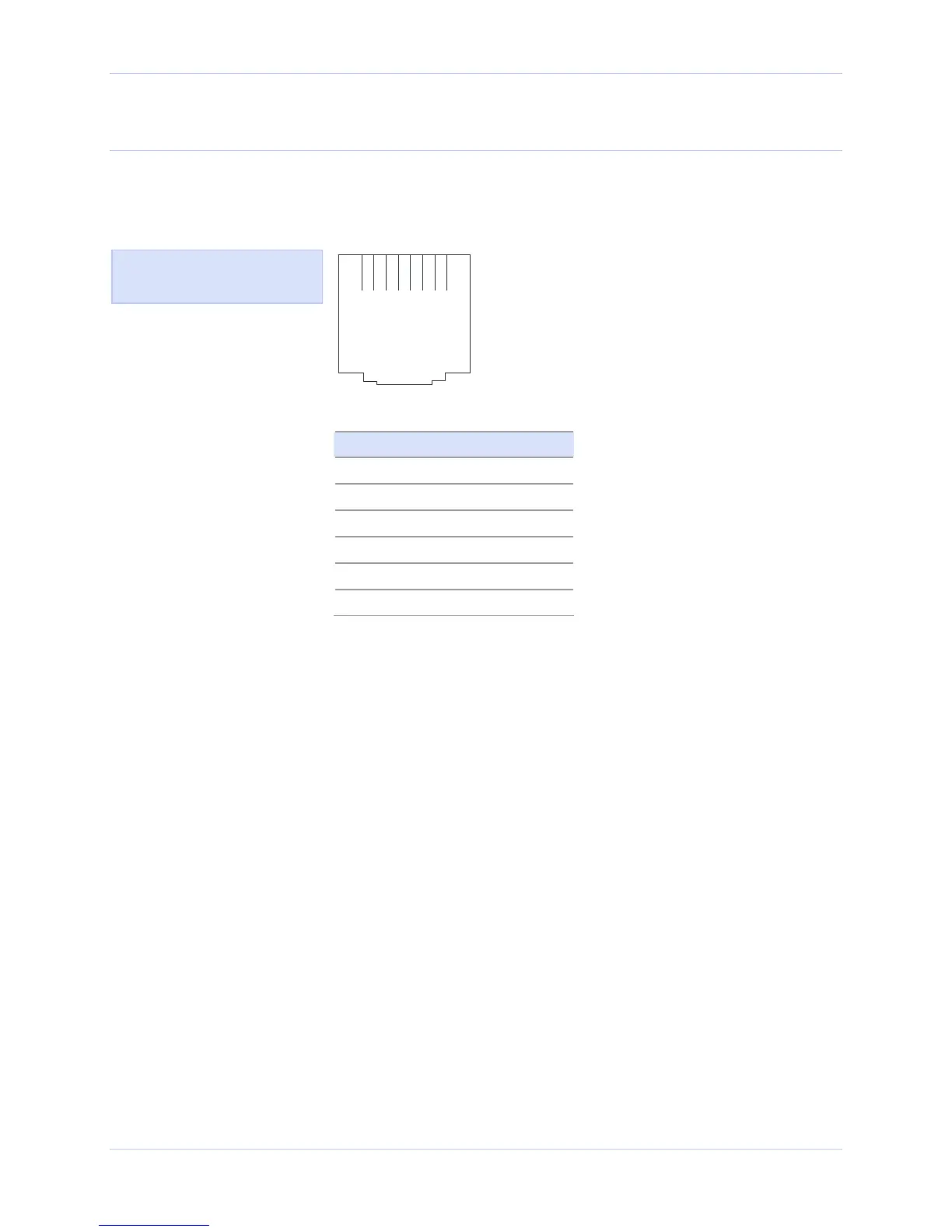

Figure 4 - RJ-45 Ethernet port pinout
1 2 3 4 5 6 7 8
Figure 5 and Table 7 show the
Ethernet RJ-45 pinouts and
signal descriptions.
Table 7 - RJ-45 Ethernet port signals
Ethernet signal description RJ-45
Transmit Data (TxD+) 1
Transmit Data (TxD–) 2
Receive Data (RxD+) 3
No connection 4, 5
Receive Data (RxD–) 6
No connection 7, 8
Page 12 940-0183-153 July 2005
