Quatech SDS User’s Manual Installing the device drivers

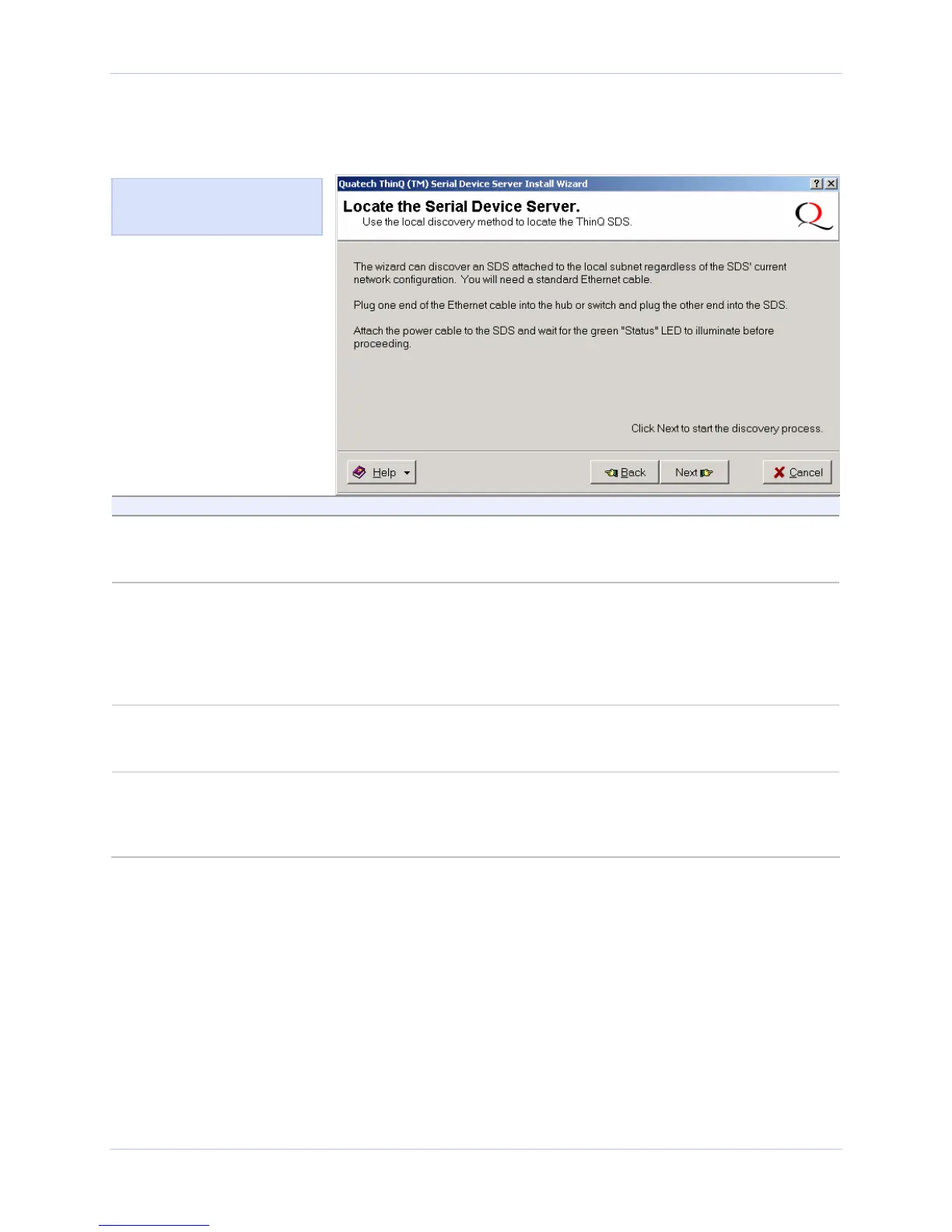

Figure 38 - Locate the Serial Device Server local discovery screen
Step Procedure Description
Step 49 Connect the SDS to a local hub or switch. Use a standard Ethernet cable to connect
the Ethernet port on the SDS to the hub
or switch. Continue with □ Step 50.
Step 50 Connect power to the SDS. Connect the cable attached to the power
source to the SDS. Plug the connector of
the unattached power cable into the
power source’s socket. Plug the other end
of the cable into a power outlet. The SDS
powers up.
Step 51 Confirm that the SDS is ready to proceed. The Status LED to the left of the power
jack should glow green and the Power
LED should glow blue.
Step 52 Click the Next button to continue. The Search network for Serial Device
Servers screen displays and the Wizard
searches the local subnet for active serial
device servers. Go to
□ Step 10.
Figure 39 illustrates the Locate
the Serial Device Server local
discovery prompt.
July 2005 940-0183-153 Page 41
