Quectel EP06 Series User Manual

LTE-A Module Series
EP06 Series Hardware Design
EP06_Series_Hardware_Design 26 / 56
"*" means under development.
3.7.1. WAKE_N Signal*
The WAKE_N signal is an open collector signal, but a host pull-up resistor and
AT+QCFG="risignaltype","physical" command are required. When a URC is returned, a low level
pulse will be outputted. The state of WAKE_N signal is shown below.
URC return
High
Low
TBD
(external
pull-up)

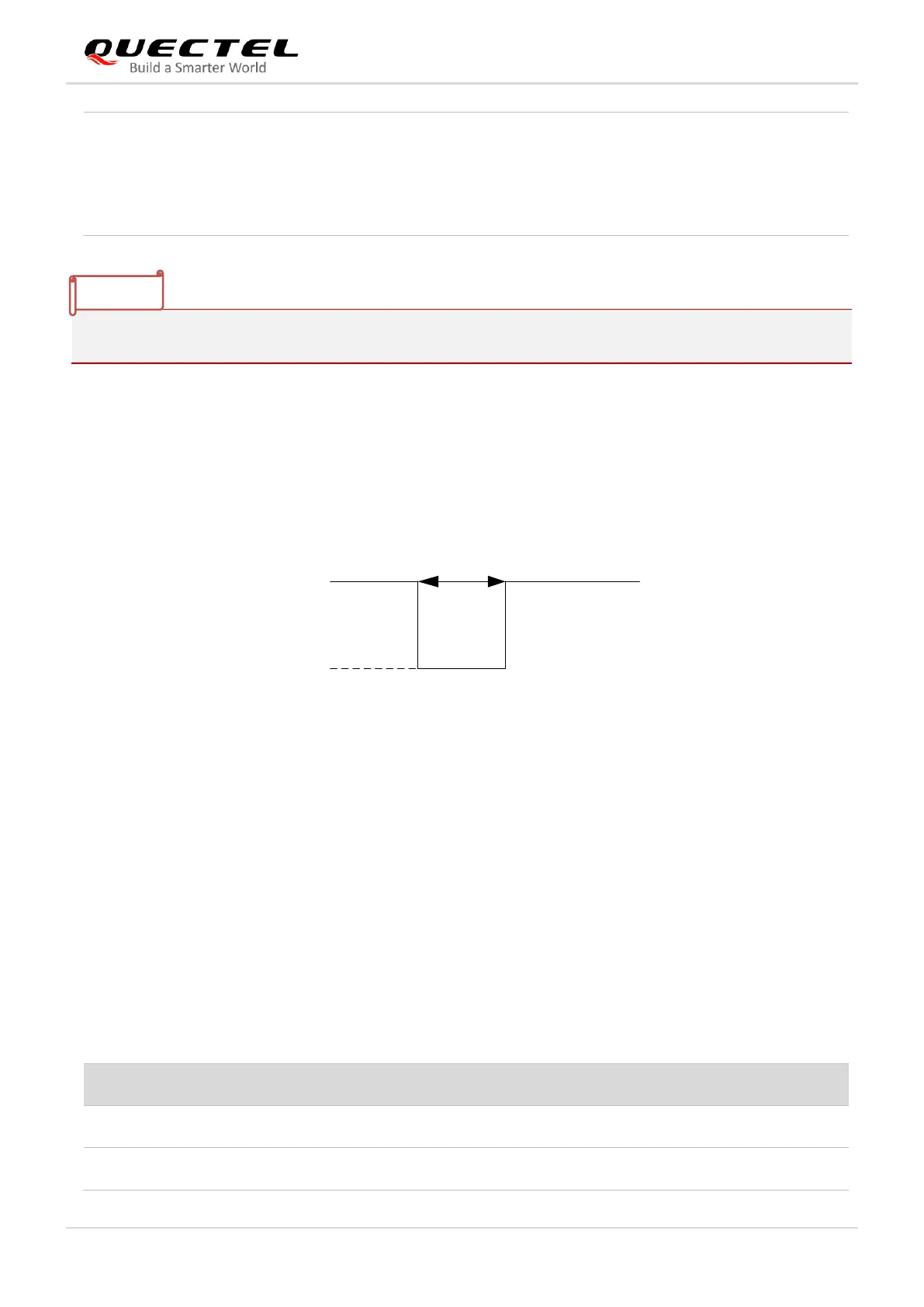

Figure 9: WAKE_N Behavior
3.7.2. W_DISABLE_N Signal*
The module provides a W_DISABLE_N signal to disable or enable the RF function (excluding GNSS).
W_DISABLE_N for RF function control is disabled by default, and AT+QCFG="airplanecontrol",1 can
be used to enable the function.
W_DISABLE_N is pulled up by default. Driving it low sets the module into airplane mode.
Table 10: RF Function Status
42
WWAN_LED_N
OD
It is an open collector and active
low signal.
It allows the module to provide RF
status indication via LED devices
provided by the system.
Active low.
W_DISABLE_N Level
AT Commands
RF Function Status
High Level
AT+CFUN=1
Enabled
High Level
AT+CFUN=0
Disabled
NOTE
