LTE-A Module Series
EP06 Series Hardware Design
EP06_Series_Hardware_Design 52 / 56
7.2. Standard Dimensions of Mini PCI Express
The following figure shows the standard dimensions of Mini PCI Express. Refer to document [6] for
detailed dimensions.

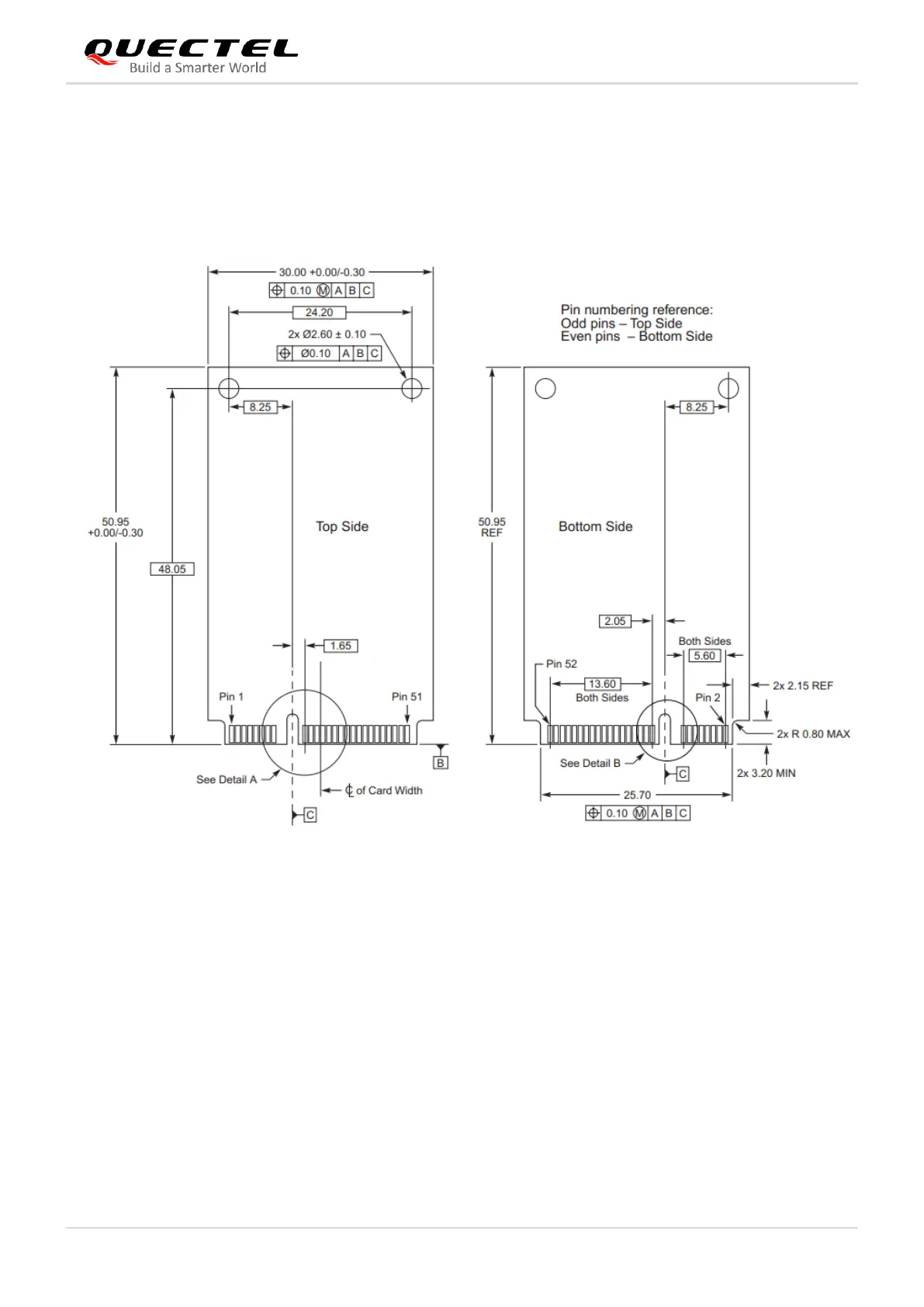

Figure 19: Standard Dimensions of Mini PCI Express
EP06 Mini PCIe adopts a standard Mini PCI Express connector which compiles with the directives and
standards listed in the document [6]. The following figure takes the Molex 679100002 as an example.
