LTE-A Module Series
EP06 Series Hardware Design
EP06_Series_Hardware_Design 53 / 56

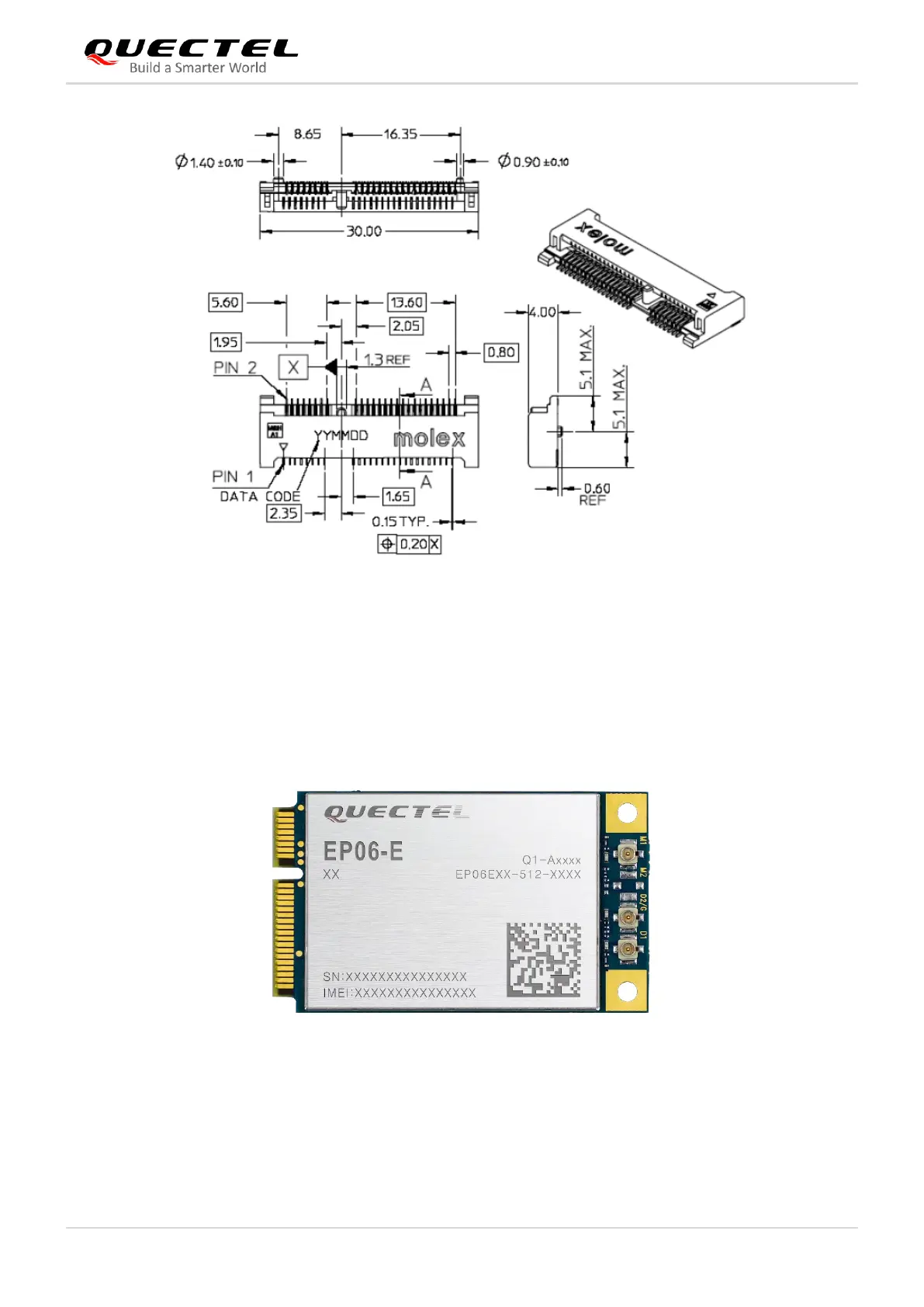

Figure 20: Dimensions of the Mini PCI Express Connector (Molex 679100002)
7.3. Top and Bottom Views
Figure 21: Top View of the Module
