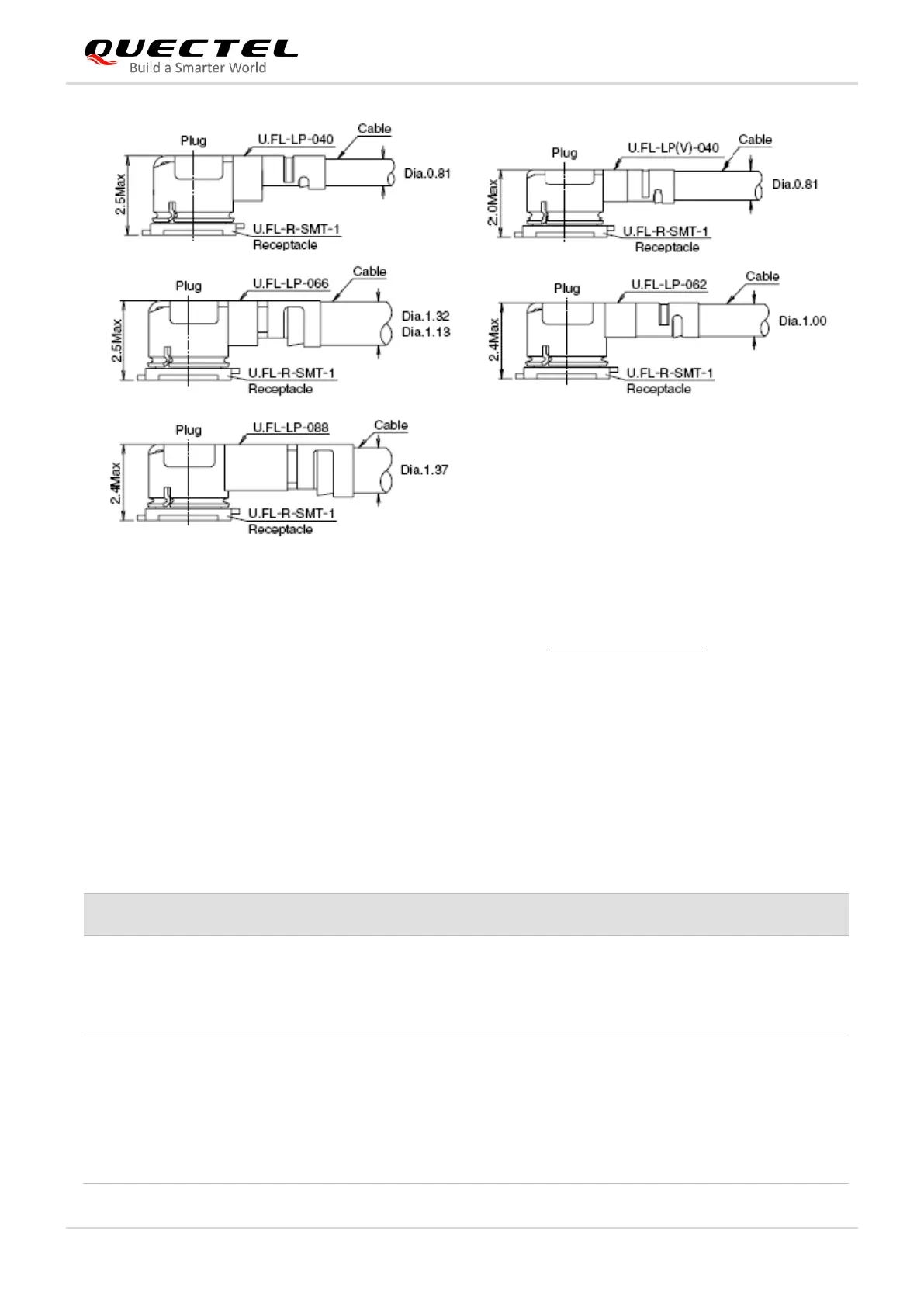

Figure 15: Space Factor of Mating Plugs (Unit: mm)
For more details of the recommended mating plugs, please visit http://www.hirose.com.
5.4. Antenna Requirements
The following table shows the requirements on main antenna, Rx-diversity antenna and GNSS antenna.
Table 20: Antenna Requirements
Frequency Range: 1559–1609 MHz
Polarization: RHCP or linear
VSWR: < 2 (Typ.)
Passive Antenna Gain: > 0 dBi
VSWR: ≤ 2
Efficiency: >30 %
Max Input Power: 50 W
Input Impedance: 50 Ω
Cable Insertion Loss: <1 dB
