LTE-A Module Series
EP06 Series Hardware Design
EP06_Series_Hardware_Design 36 / 56

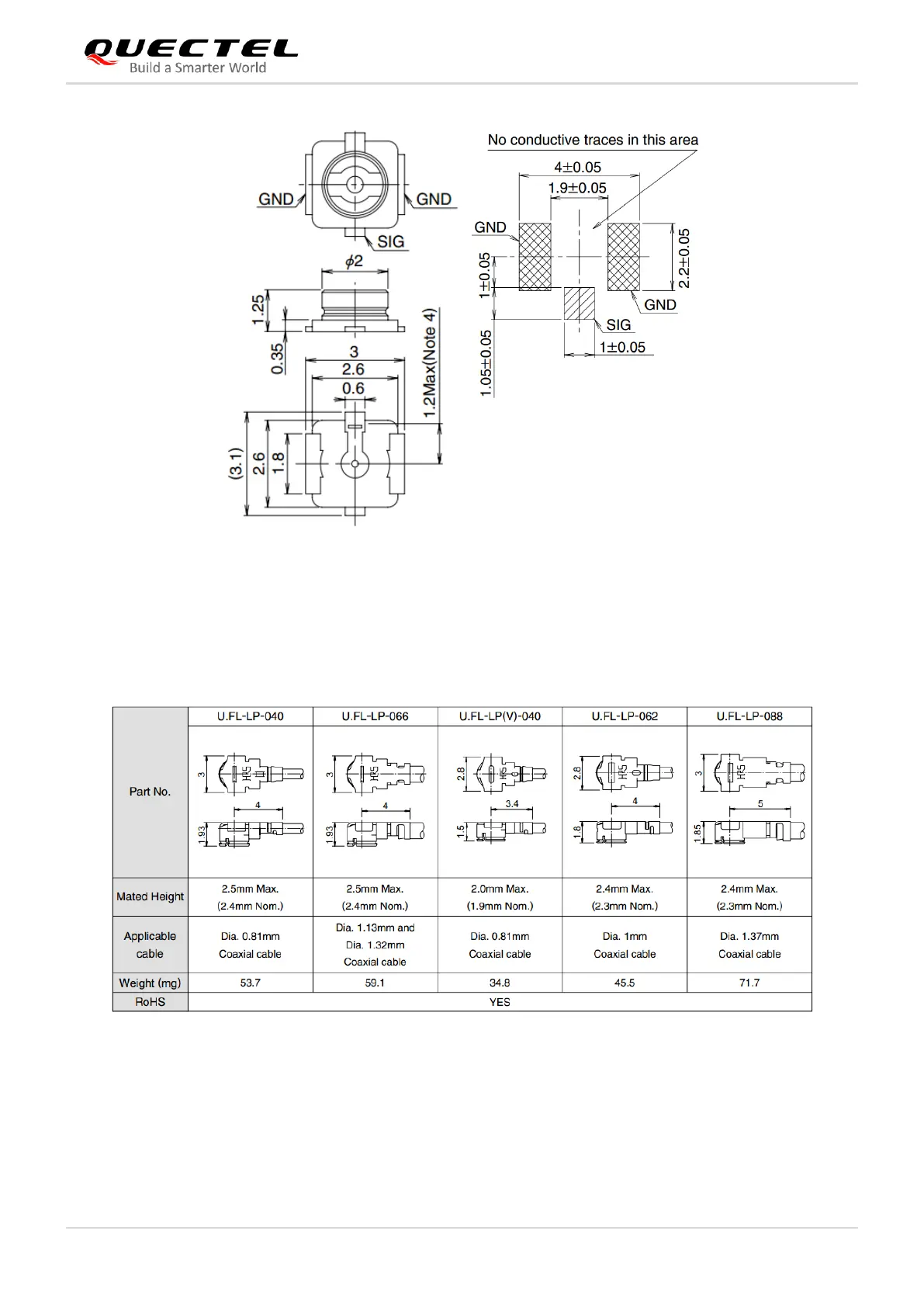

Figure 13: Dimensions of the Antenna Connectors (Unit: mm)
It is recommended to use U.FL-LP mating plugs listed in the following figure to match the antenna
connectors.
Figure 14: Mechanicals of U.FL-LP Mating Plugs
The following figure describes the space factor of mating plugs.
