7 Mechanical Dimensions
This chapter mainly describes the mechanical dimensions as well as packaging specifications of the
module. All dimensions are measured in millimeter (mm), and the dimensional tolerances are ±0.05 mm
unless otherwise specified.
7.1. Mechanical Dimensions

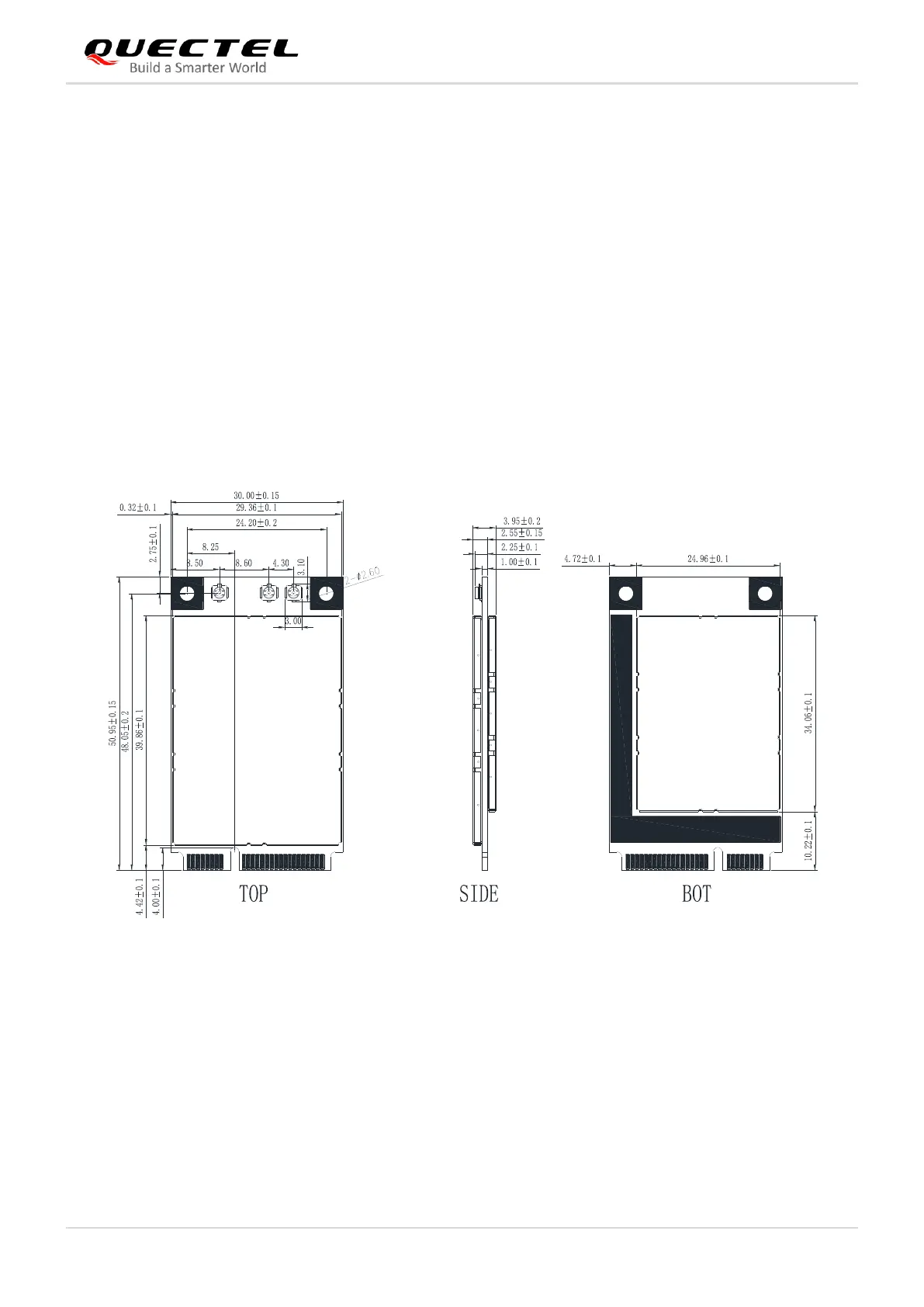

Figure 18: Mechanical Dimensions of EP06 Series
