2 Front and Rear Panels
This section provides information about front panel and rear panel. When you install
this DVR for the first time, please refer to this part to start off with.
2.1 Front Panel

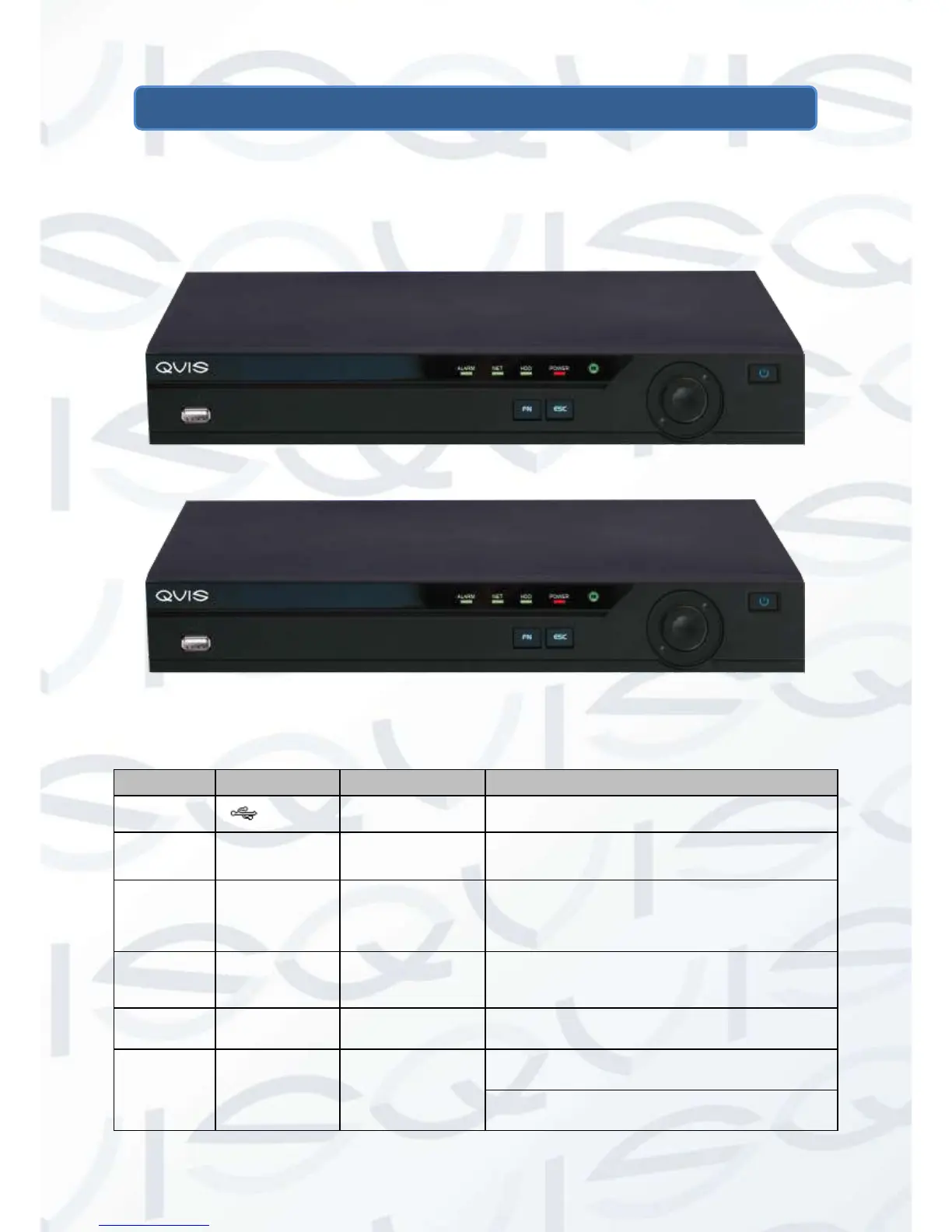

The Front panel is shown as below. See
Figure 2-1.
Figure 2-1
Please refer to the following sheet for detailed information:
SN
Icon
Name
Function
1
USB port
To connect a USB storage device, USB mouse,
etc.
2
Alarm
Alarm indicator
light
When an alarm is triggered, the light becomes red to
to alert you.
3
NET
Network abnormal
indicator light
Network error has occurred or there is no
network connection, the light becomes red to
alert you.
3
HDD
HDD abnormal
indicator light
HDD error has occurred or HDD capacity is
below specified threshold value, the light
becomes red to alert you.
5
IR
IR Receiver
This is to receive the signal from the
remote control.
6
ESC
ESC
Go to previous menu, or cancel current
operation.
During playback, click it to restore real-time
monitor mode.
