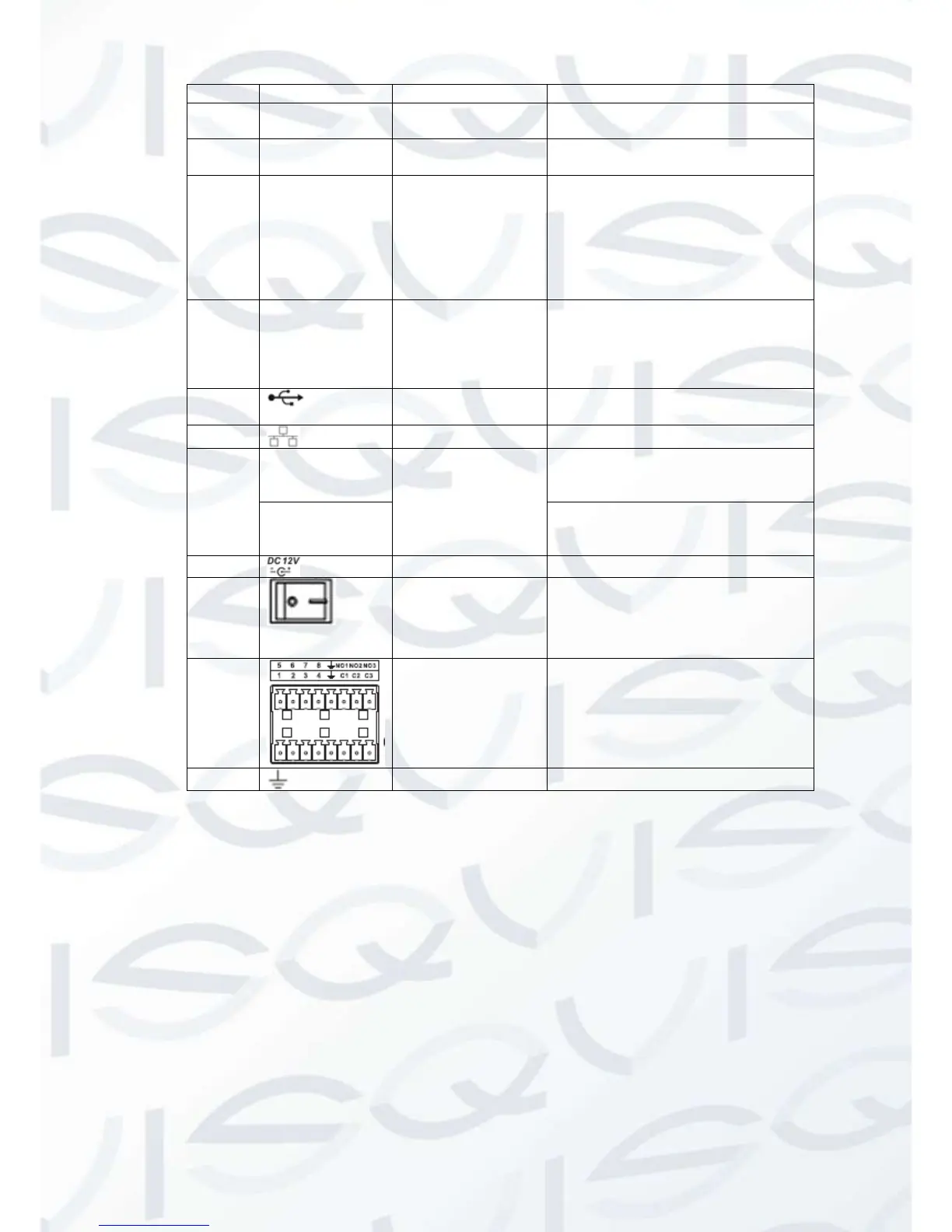

9
input signal.
2
AUDIO OUT
Audio output port
Connect to audio output device such
as a loud speaker.
3
AUDIO IN
Audio input port
Connect to audio input device such
as microphone.
4
VGA
VGA video output
port
VGA video output port. Output
analog video signal. you can
connect to the monitor to view
ananlog video output.
5
HDMI
High definition
media interface
High definition audio and video
signal output port. It transmits
uncompressed high definition video
and multiple-channel data to the
HDMI port of the display device.
6
USB2.0 port
To Connect a USB storage device,
mouse, DVD-ROM drive, etc.
7
Network port
100M Ethernet port
8
A
RS485（RS-485）
communication port
RS485_A port. It is the cable A. You
can connect to the control devices
such as speed dome PTZ.
B
RS485_B.It is the cable B. You can
connect to the control devices such
as speed dome PTZ.
9
Power input port
Input 12V DC.
10
Power on-off button
Power on/off button.
11
Alarm input/Alarm
output
Input/output alarm signal.
12
GND
Ground end
