3 SONIC 2024/2022 SONAR HEAD INSTALLATION – Surface Vessel
The Sonic 2024/2022 can be installed on an over-the-side pole, through a moon pool, or as a
permanent hull mount. The light weight, small size, and low power consumption makes the Sonic
2024/2022 ideal for underwater vehicle (ROV and AUV) installations.
WARNING
DECK LEAD MINIMUM BEND RADIUS =
150MM
3.1 Sonic 2024/2022 Receive Module Installation
The Sonic 2024/2022 sonar head is mounted on the standard R2Sonic mounting frame as shown
below.

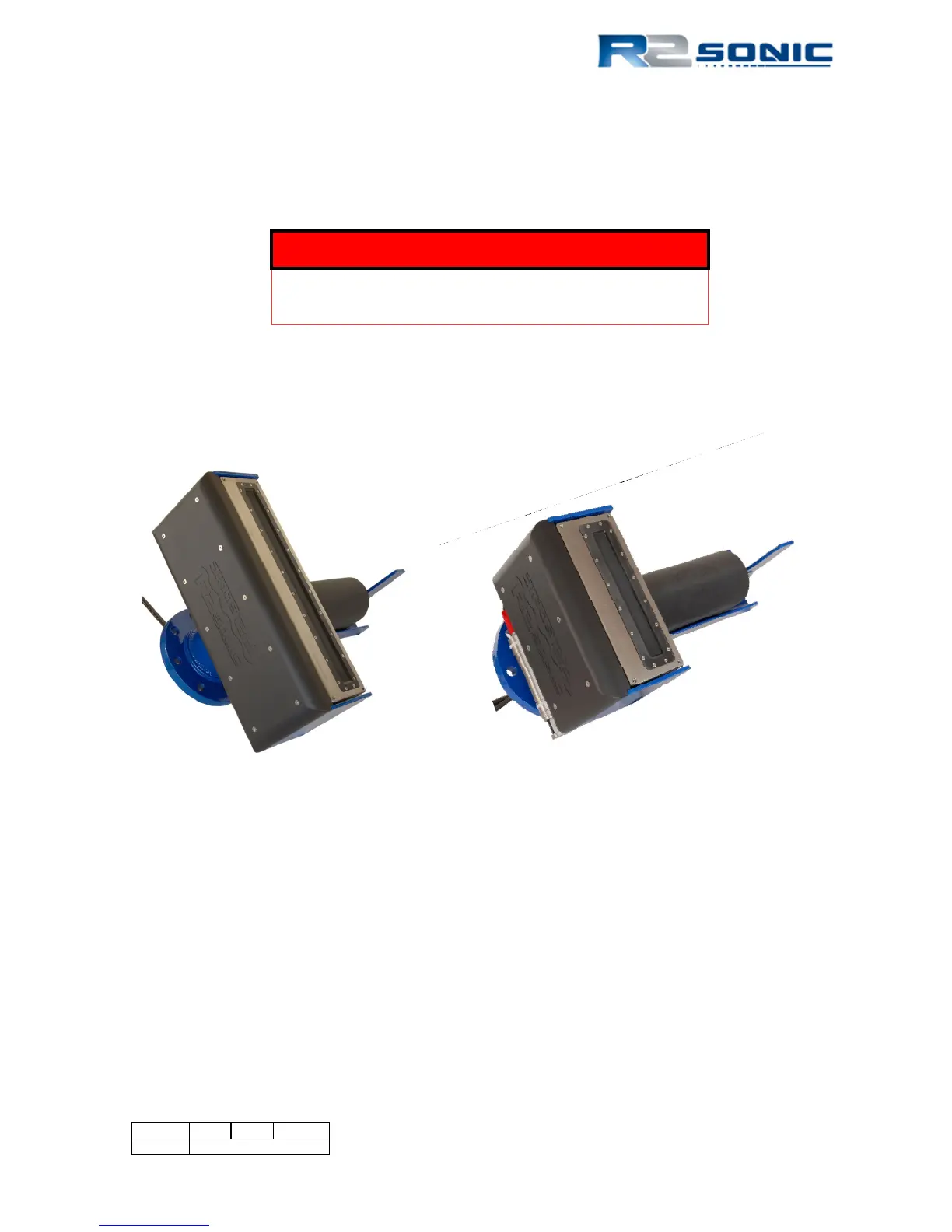

Figure 6: Sonic 2024 and Sonic 2022 on the mounting frame
If the Sonic 2024/2022 sonar head is not pre-mounted, the following guidelines must be followed
for proper operation of the system.
• The Receive Module is orientated with the narrow part of the face towards the projector
(see above).
• The projector is orientated with the connector towards the end with the protective fin.
• The Projector must be mounted with the correct 35mm standoffs in place.
