6 OPERATION OF THE SONIC 2024/2022 VIA SONIC CONTROL
The Sonic 2024/2022 multibeam echosounders are controlled by the Sonic Control software. The
Sonic Control GUI does not require a dedicated computer and is usually installed on the user’s data
collection computer.
6.1 Installing Sonic Control Graphical User Interface
Sonic Control is supplied on a CD or as an attached file. There is no installation program, merely
decompress the program to a folder in a root directory of the computer. Send the R2Sonic.exe to
the desktop, as short cut,

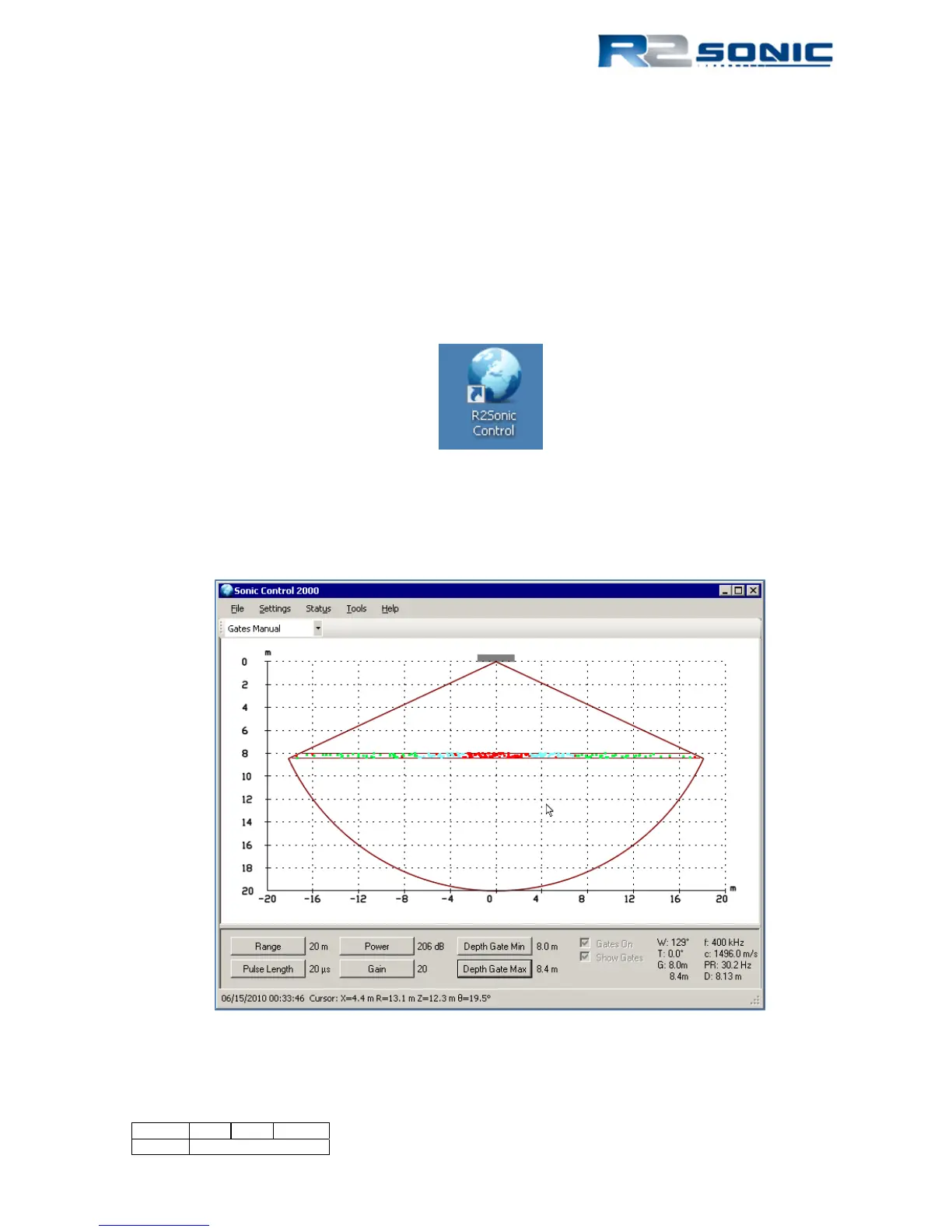

Figure 30: Sonic Control Icon on desktop
Figure 31: Sonic Control 2000
