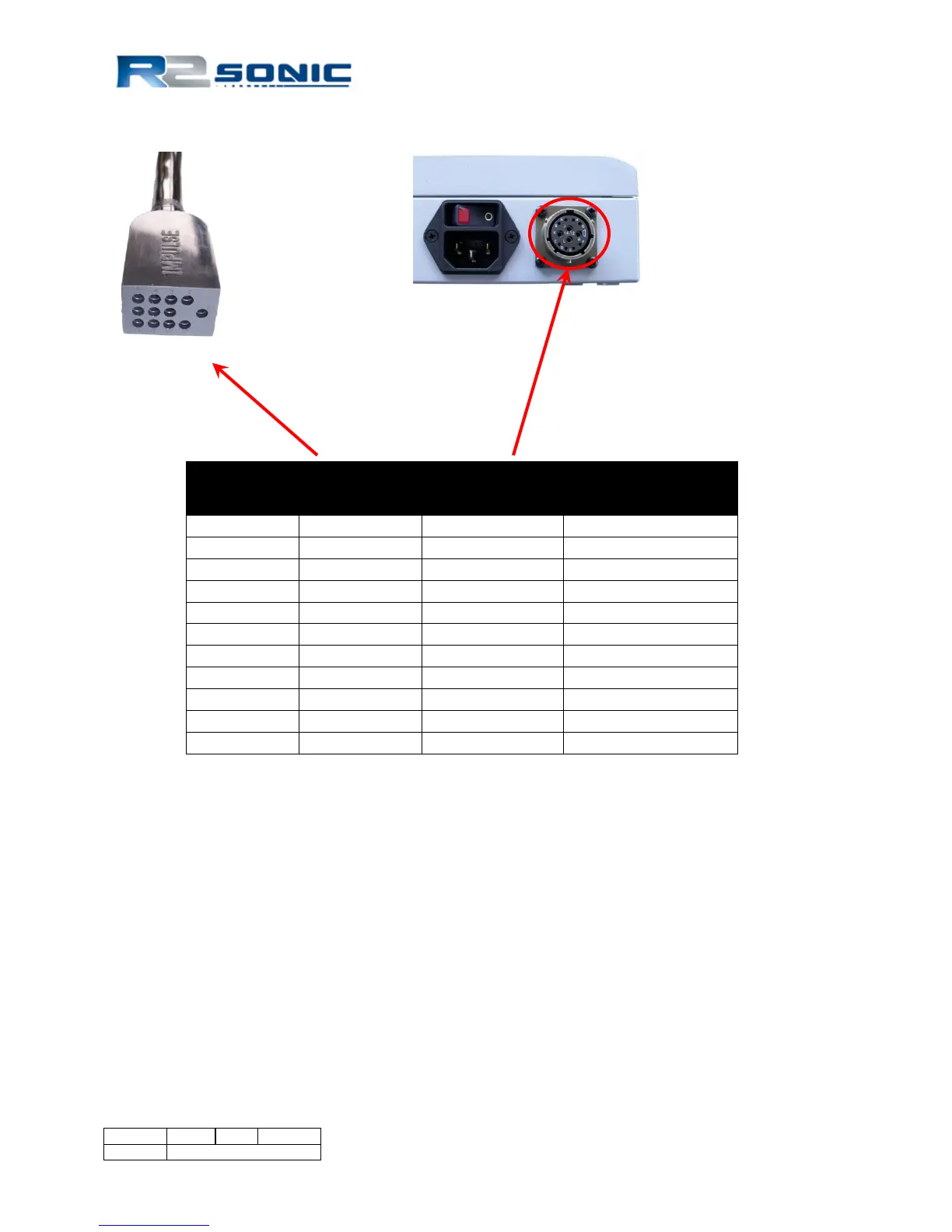

Figure 28: SIM IEC mains connection and deck lead Amphenol connector
Function
Impulse
Pin Number
Amphenol MS
Pin Number
R2Sonic 10013A
Wire Colour
Data 1+ 4 A Blue
Data 1- 5 B Blue/White
Data 2+ 7 C Green
Data 2- 8 D Green/White
Data 3+ 11 E Brown
Data 3- 12 F Brown/White
Data 4+ 9 G Orange
Data 4- 10 H Orange/White
Data Shield 6 n/c Drain Wire
Power + 1 J,M Red, Yellow (#18AWG)
Power Return 2 K,L Black, Blue (#18 AWG)
Table 6: Deck Lead Pin Assignment (Gigabit Ethernet and Power)
Figure 29: Impulse connector
