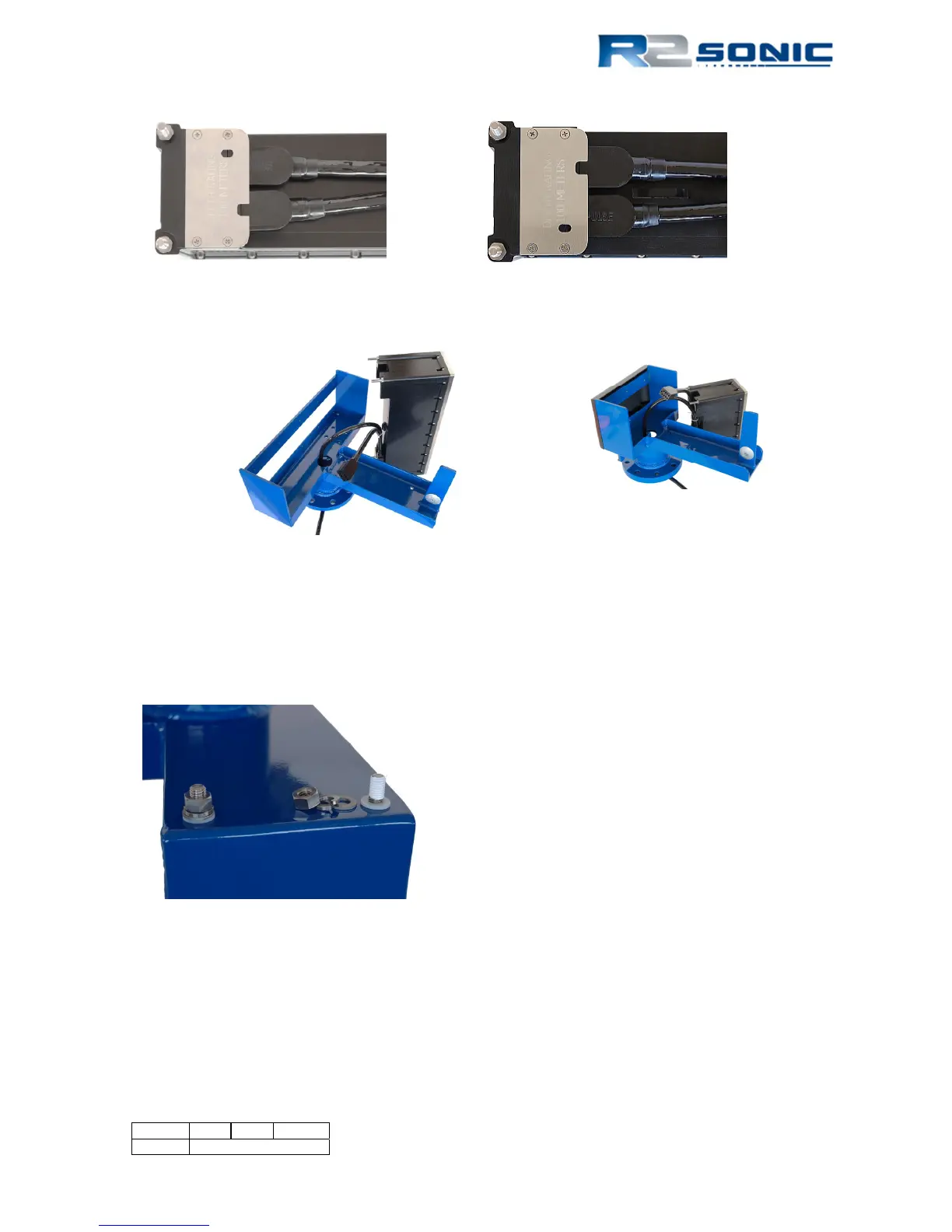

Figure 11: Seated connectors (Sonic 2024 on left and Sonic 2022 on right)
Figure 12: Receive Module with cables connected
Next, mount the Receive Module in the mounting frame. This can be most easily done by putting
the receive module face on a piece of cardboard or other material and then lowing the mounting
frame down with the threaded bolts passing through the mounting frame. The securing bolts, after
passing through the frame, should be wrapped with 2 wraps of Teflon™ tape.
Figure 13: Position the insulating bushing, then wrap threads with Teflon tape, then secure with flat washer, locking
washer and then nut.
Sonic 2024
Sonic 2022
