6.4.8 Dual Head Mode
The selections are: Single Head, Simultaneous Ping or Alternating Ping. When the dual head mode is
selected, a second wedge display will be available in Sonic Control 2000.

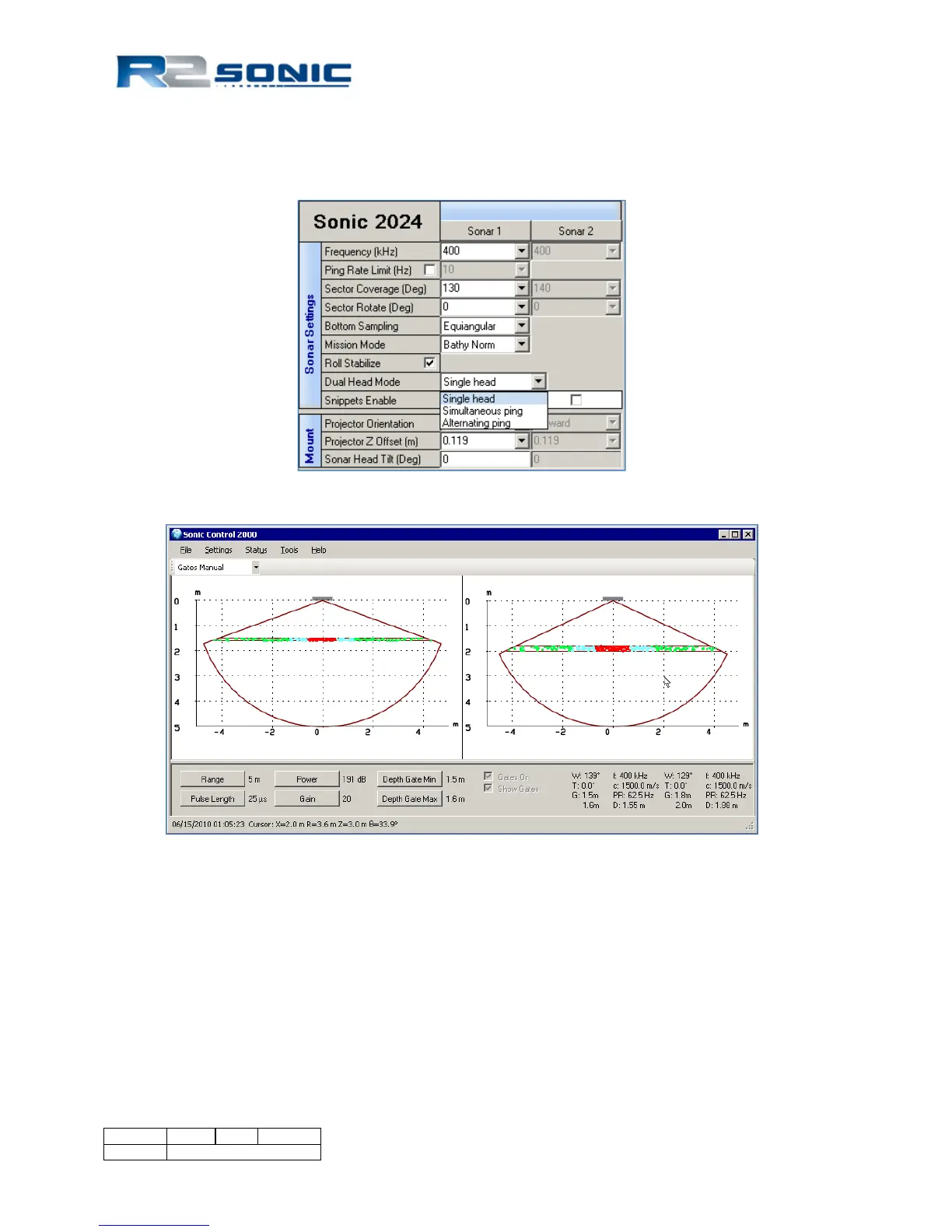

Figure 44: Dual Head Mode
Figure 45: Dual Head Mode active
In dual head mode, certain controls: Range, Power, Pulse Length, and Gain set both sonar heads.
NB. For a dual head system, the Discover function will only list the systems. Discover does not auto-
fill the serial numbers for a dual head system. Correct serial numbers must be entered by hand for
both systems.
6.4.8.1 Dual Head default settings
To make it easier to set up the system for dual head operation, there is a specific settings file that
can be loaded that will set all of the defaults for a dual head configuration. Under the File menu
selection, select Load Settings.
