1 = select screen based on pwm ranges specified for each screen.
2 = switch to next screen after low to high transition and every 1s while channel value is high.

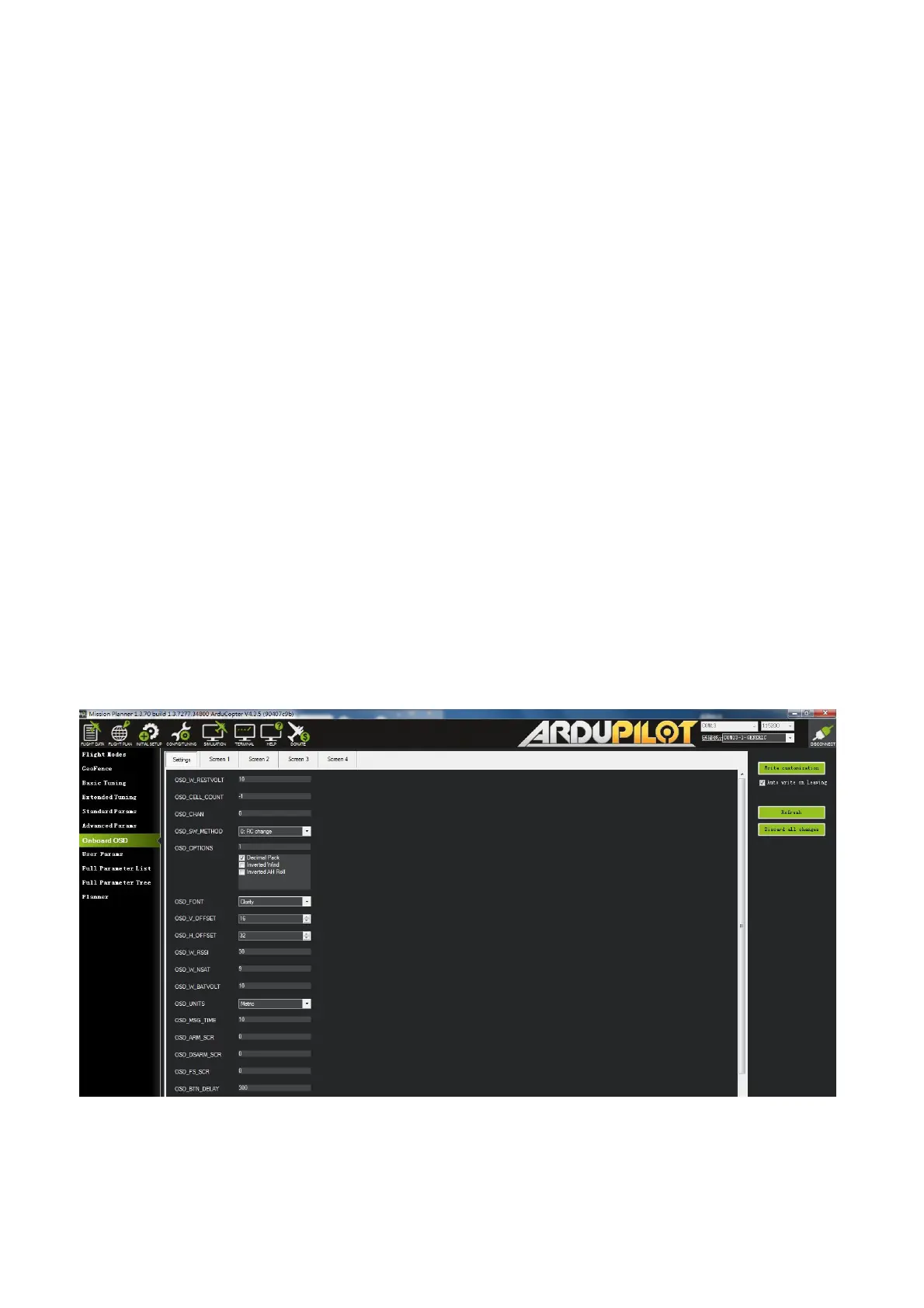

OSD_OPTIONS: OSD Options. This sets options that change the display, including Decimal pack, Inverted
Wind, Inverted AH Roll.
OSD_FONT: OSD Font. This sets which OSD font to use. It is an integer from 0 to the number of fonts
available.
OSD_V_OFFSET: OSD vertical offset. Sets vertical offset of the osd inside image.
OSD_H_OFFSET: OSD horizontal offset. Sets horizontal offset of the osd inside image.
OSD_W_RSSI: RSSI warn level. Set level at which RSSI item will flash. The range is from 0 to 99.
OSD_W_NSAT: NSAT warn level. Set level at which NSAT item will flash. The range is from 0 to 30.
OSD_W_BATVOLT: BAT_VOLT warn level. Set level at which BAT_VOLT item will flash. The range is from 0
to 100V.
OSD_UNITS: Display Units. Sets the units to use in displaying items.
0 = Metric (m, km, m/s, km/h)
1 = Imperial (feet, miles, feet per second, miles per hour)
2 = ArduPilot Native (m, km, m/s)
3 = Aviation (feet, nautical miles, feet per minute, knots)
OSD_MSG_TIME: Message display duration in seconds. Sets message duration seconds.
OSD_ARM_SCR: Arm screen. Screen to be shown on Arm event. Zero to disable the feature.
OSD_DSARM_SCR: Disarm screen. Screen to be shown on disarm event. Zero to disable the feature.
OSD_FS_SCR: Failsafe screen. Screen to be shown on failsafe event. Zero to disable the feature.
OSD_BTN_DELAY: Button delay. Debounce time in ms for stick commanded parameter navigation.
OSD_W_TERR: Terrain warn level. Set level below which TER_HGT item will flash. -1 disables.
OSD_W_AVGCELLV: AVGCELLV warn level. Set level at which AVGCELLV item will flash.
OSD_TYPE: 1 means the chip of OSD is MAX7456.
