RADWAG AS R2 PLUS

- 11 -
AS R2.PLUS
•

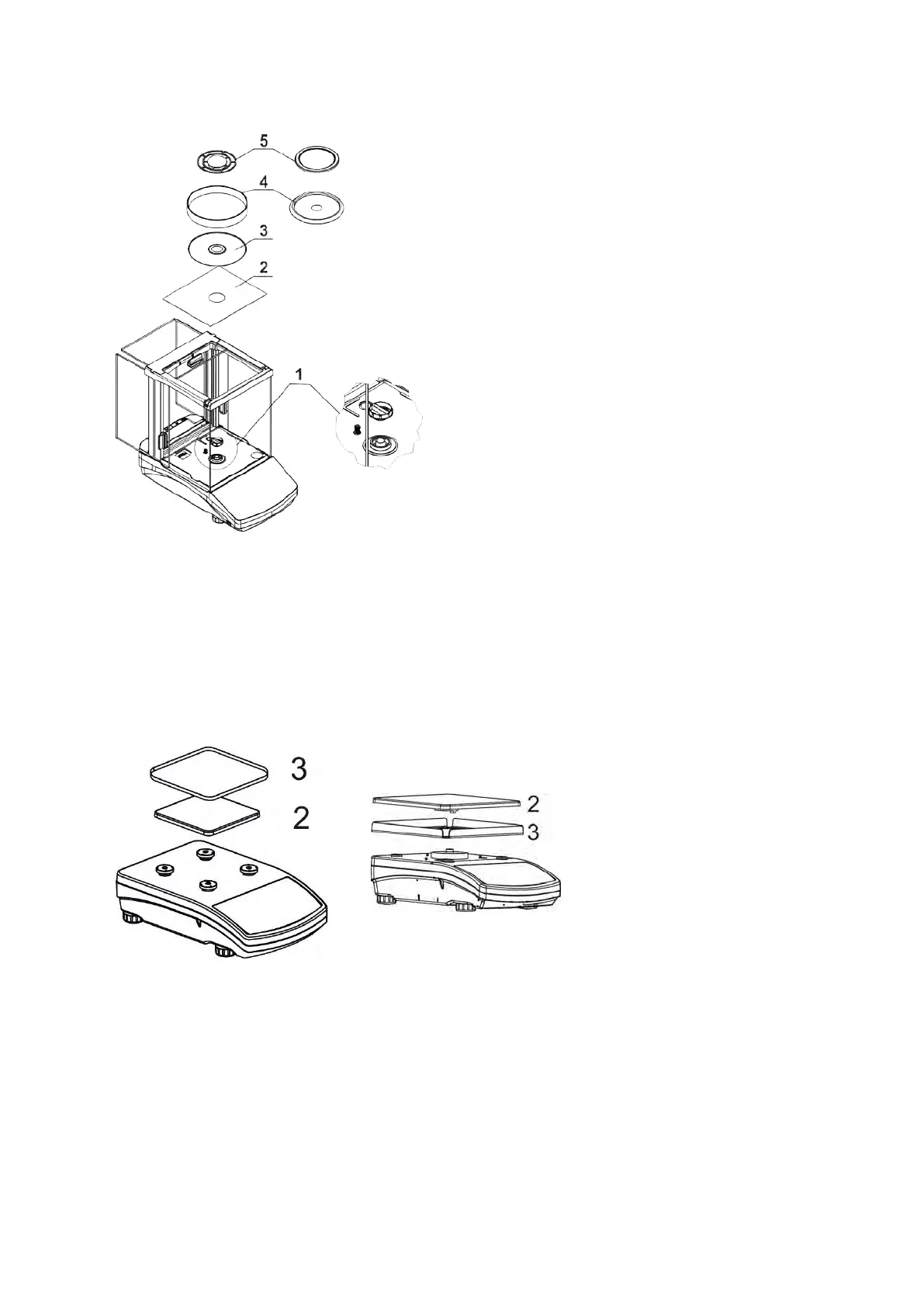

remove a transport lock (1) – gently press the transport lock and turn it accordingly to
<OPEN> instruction, keep the transport lock should your balan
ce be transported in the
future.
• Install components following the above diagram:
• bottom insert (2),
• centring ring [embossment side up] (3),
• draft shield (4).
• weighing pan (5),
PS 200/2000-PS 1000
PS 2100-PS 10100
•
remove tape protecting the grounding spring, located on one of the rubber mandrels
• install components following the above diagram:
• weighing pan (2),
•
glass draft shield (3).
