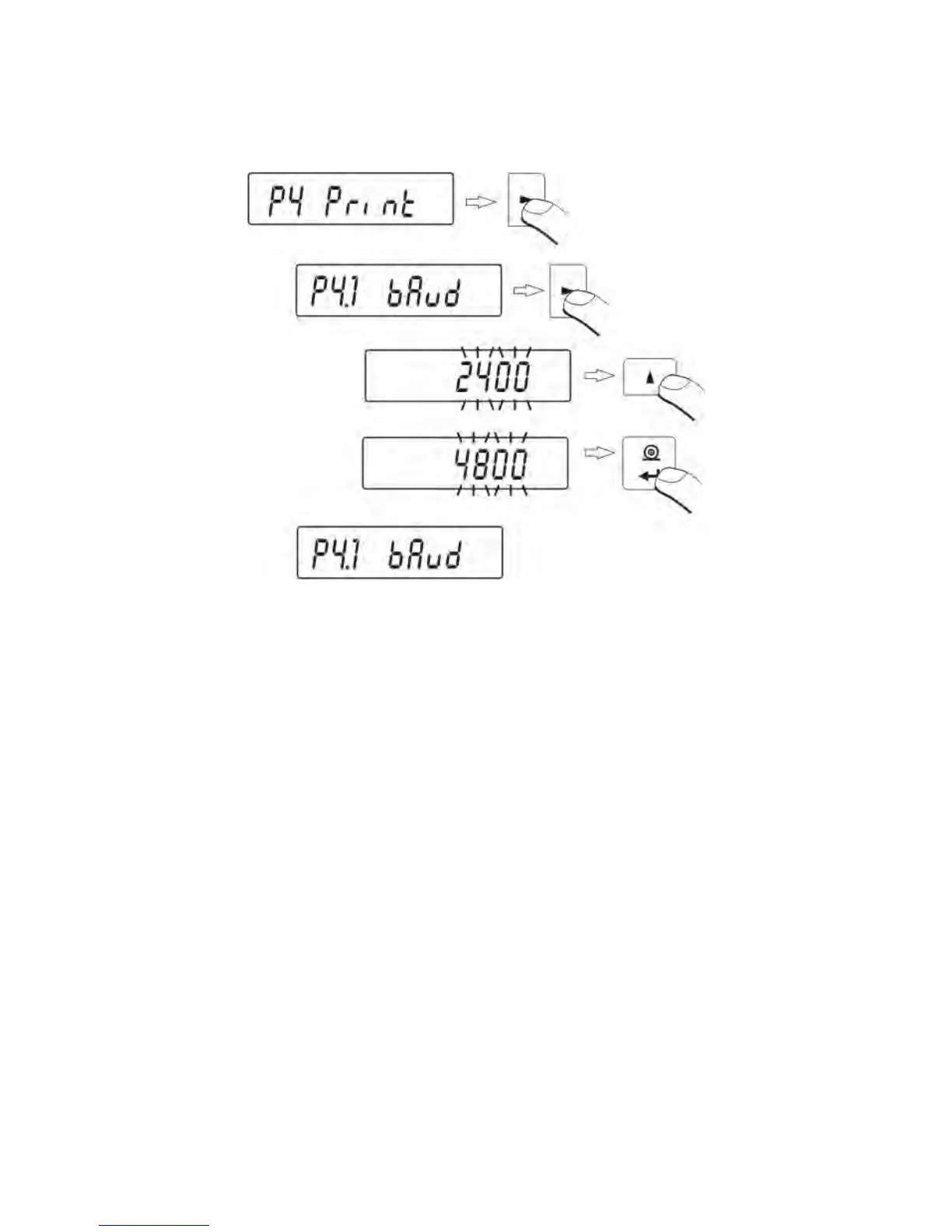

15.1. Baud rate

Select required baud rate value

- 2400 bit/s

- 4800 bit/s

- 9600 bit/s

- 19200 bit/s.

Return to weighing

(see point 8.2. – return to weighing).
