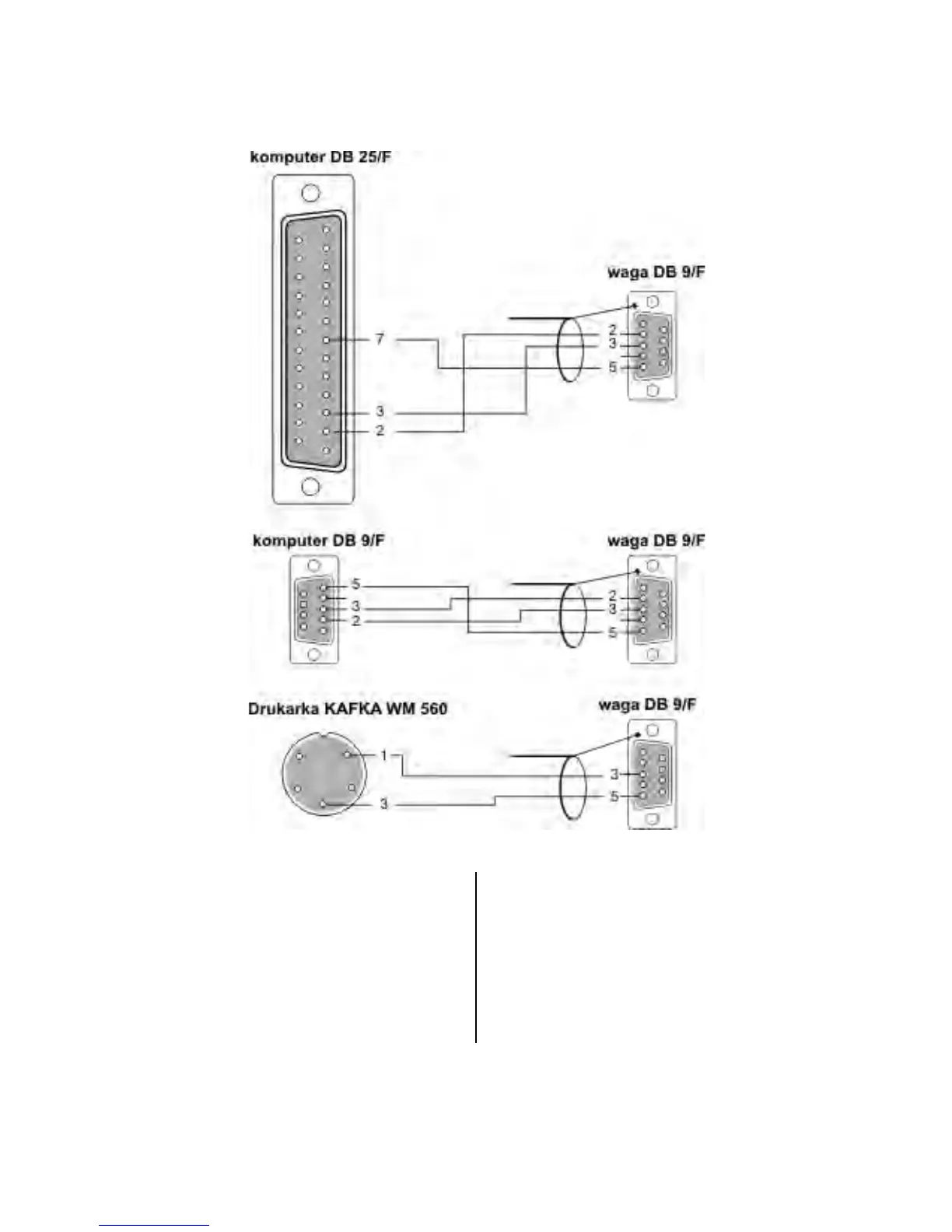

16.1. Cross-section through connecting conductors

BALANCE

COMPUTER

2 (RxD)

3 (TxD)

3 (TxD)

2 (RxD)

4 (DTR)

6 (DSR)

5 (GND)

5 (GND)

6 (DSR)

6 (DTR)

7 (RTS)

8 (CTS)

8 (CTS)

7 (RTS)
