RME EAGLE User Manual Rain Master Irrigation Systems
Page 18 Chapter 3 Mounting and Installation
Valve and Pump Electrical Connections with Isolation Relay. During configuration SETUP, select
the Normally Closed Valve type for all programs which require the Master Valve and Pump. DO
NOT select pump operation.
If the Pump starter requires 120 VAC power, you will also need to use an isolation relay (RMIS part
# RLY1). Contact your local distributor or Rain Master Irrigation Systems for installation assistance
of this configuration.
If more than one RME EAGLE controller will control the Master Valve and Pump, the controllers
must be isolated from one another. Contact your local distributor or Rain Master Irrigation Systems
for a pamphlet on multiple controller installations (RMIS Technical Bulletin 018).

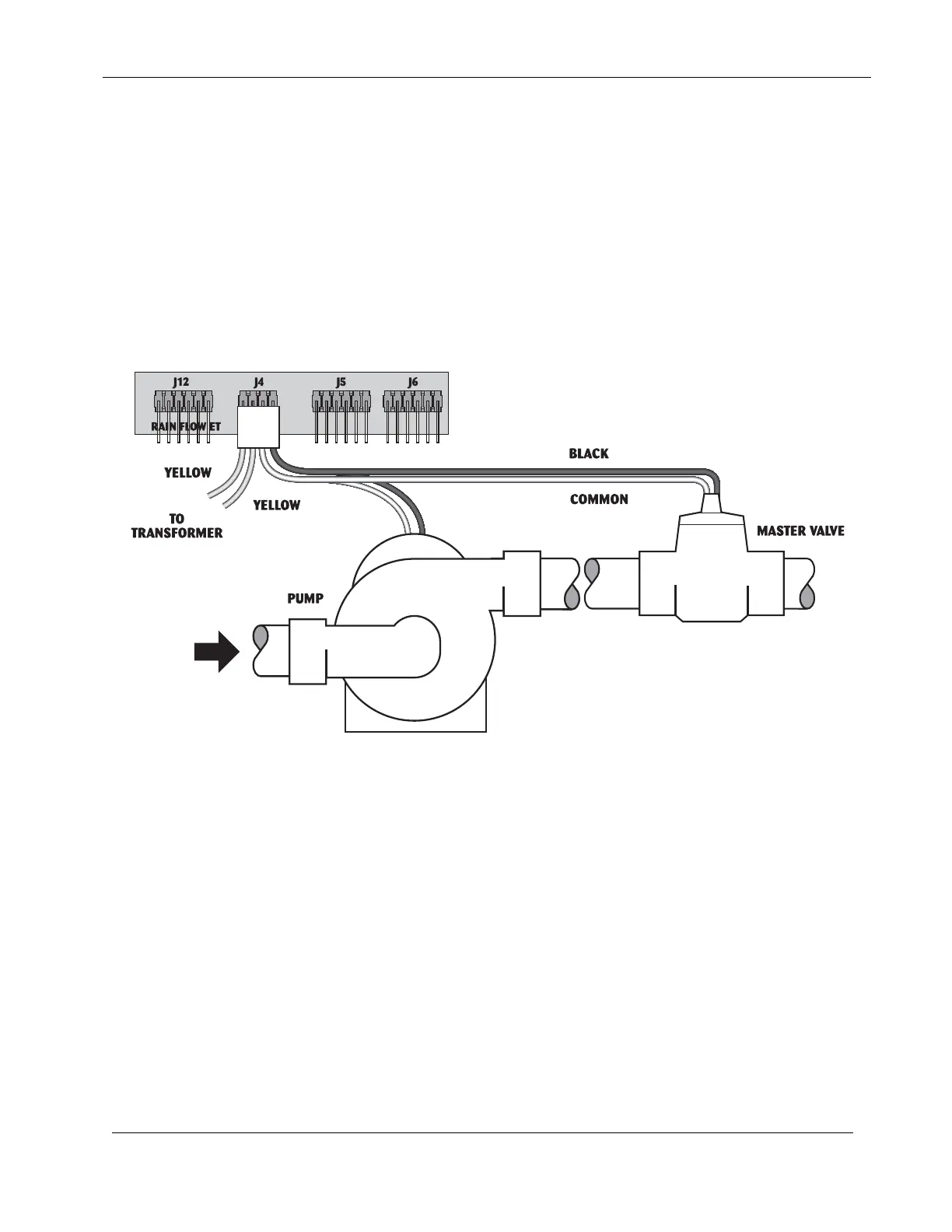

Figure 6 – Master Valve and Pump Electrical Connections
