RME EAGLE User Manual Rain Master Irrigation Systems
Page 24 Chapter 3 Mounting and Installation
RAIN
SENSOR
ET
DEVICE
FLOW
J12 J4 J5
123456
INPUT (SILVER)
24VAC (COPPER)
ET – (WHITE WITH
BLUE STRIPES)
ET + (BLUE)
+ (WHT)
– (BLK)

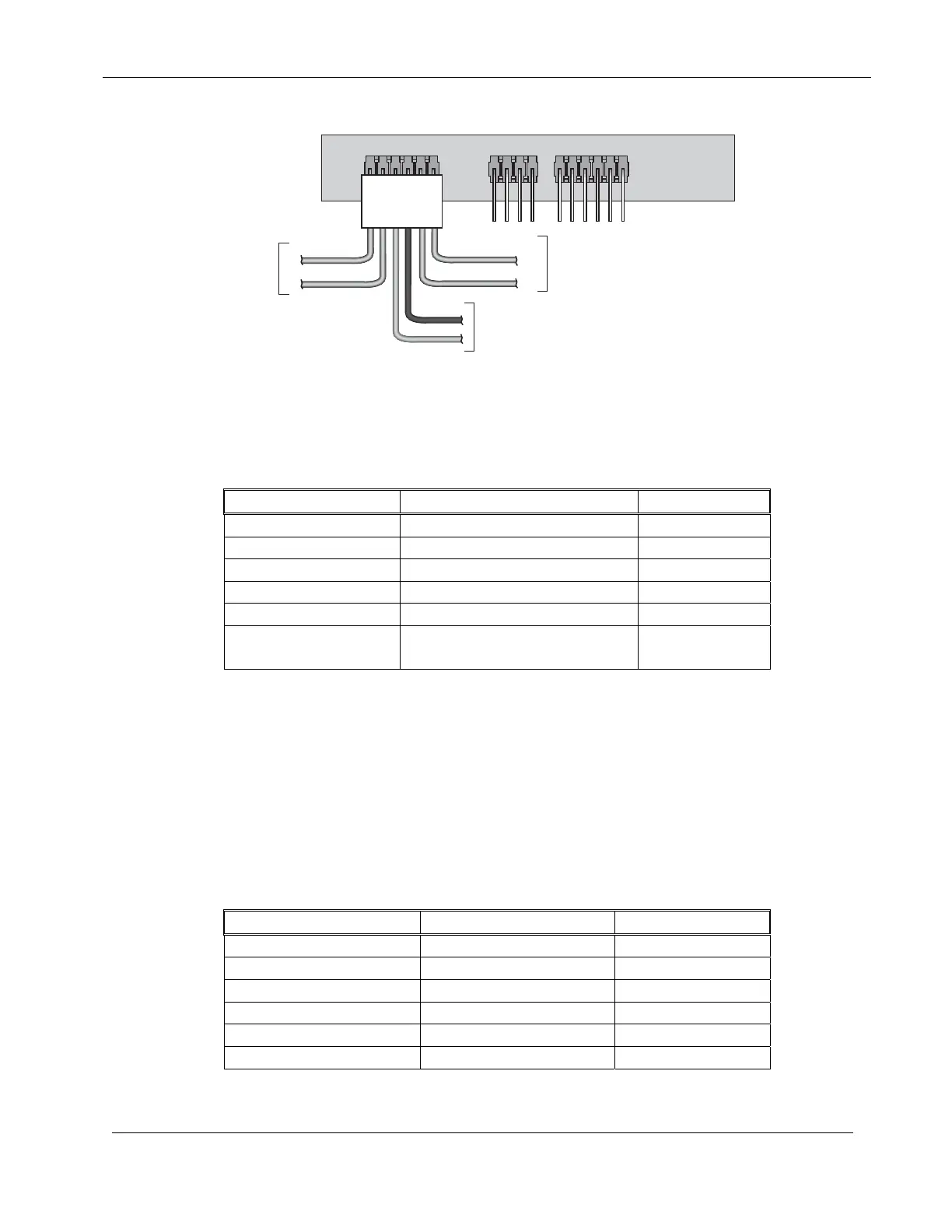

Figure 11 – Sensor Interface Electrical Connections
Table 3 - Sensor Connections
Sensor Name Connector Number (J12) Color Code
Rain Input 1 Silver
Rain 24 VAC 2 Copper
Flow + 3 White
Flow - 4 Black
ET + 5 Blue
ET - 6 White w/Blue
Stripe
WARNING: ALWAYS TURN-OFF POWER before changing or modifying field, senor
or power wiring within the controller. Dangerous voltage and current exist
within the controller which may damage the controller if improperly
connected or shorted.
3.2.4 Valve Wiring
Table 4 - Valve Color Code
Valve Number Connector Number Color Code
1 – 6 J –5 Red
7 – 12 J – 6 Orange
13 – 18 J – 7 Yellow
19 – 24 J – 8 Green
25 – 30 J – 9 Blue
31 – 36 J – 10 Violet
