Rain Master Irrigation Systems RME EAGLE User Manual
Chapter 3 Mounting and Installation Page 21
During configuration SETUP, select valve type Normally Open (NO). The Master Valve will only
activate when the controller detects a Main Line Break fault or an Unscheduled Flow condition. In
this case, a fault condition will exist until manually cleared by the operator.
TO
TRANSFORMER
YELLOW
YELLOW
WHITE
BLACK
MASTER
VALVE
PUMP
TO
STATIONS
(1-6)
J12
RAIN FLOW ET
J4 J5 J6

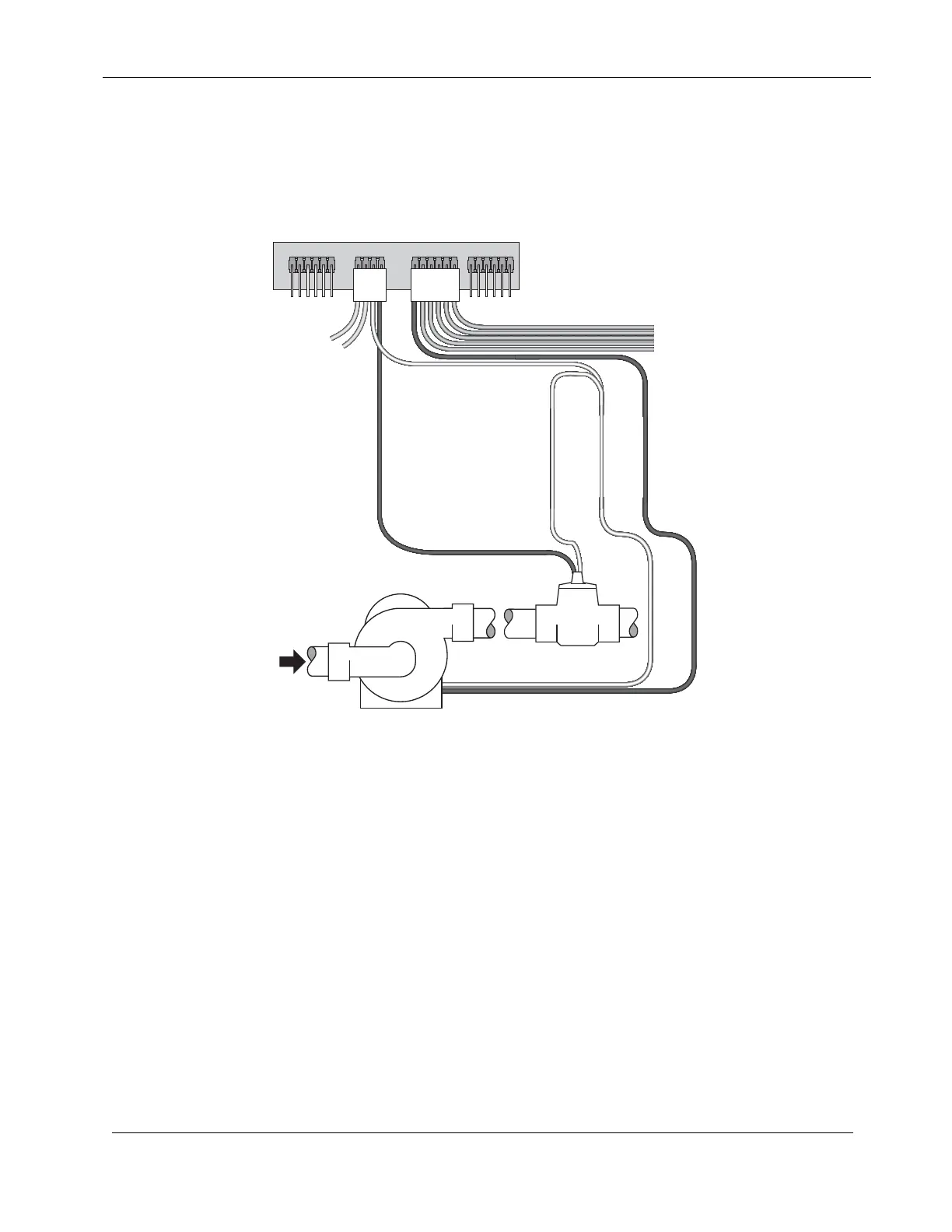

Figure 9 - Normally Open Master Valve and Pump
WARNING: ALWAYS TURN-OFF POWER before changing or modifying field, senor
or power wiring within the controller. Dangerous voltage and current exist
within the controller which may damage the controller if improperly
connected or shorted.
3.2.1.3.1 Simultaneous Use - Normally Open Master Valve and Pump
If you have a Master Valve which is Normally Open until energized and you utilize a pump,
connect the solenoid to the MV and Master Valve Common terminals and the Pump to Station 1 as
depicted in Figure 9 - Normally Open Master Valve and Pump.
During configuration SETUP, select valve type Normally Open (NO). The Master Valve will only
be activated when the controller detects a Main Line Break fault or an Unscheduled Flow condition.
