ISCOM2600 (B) Series Product Description
2 System structure
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
21

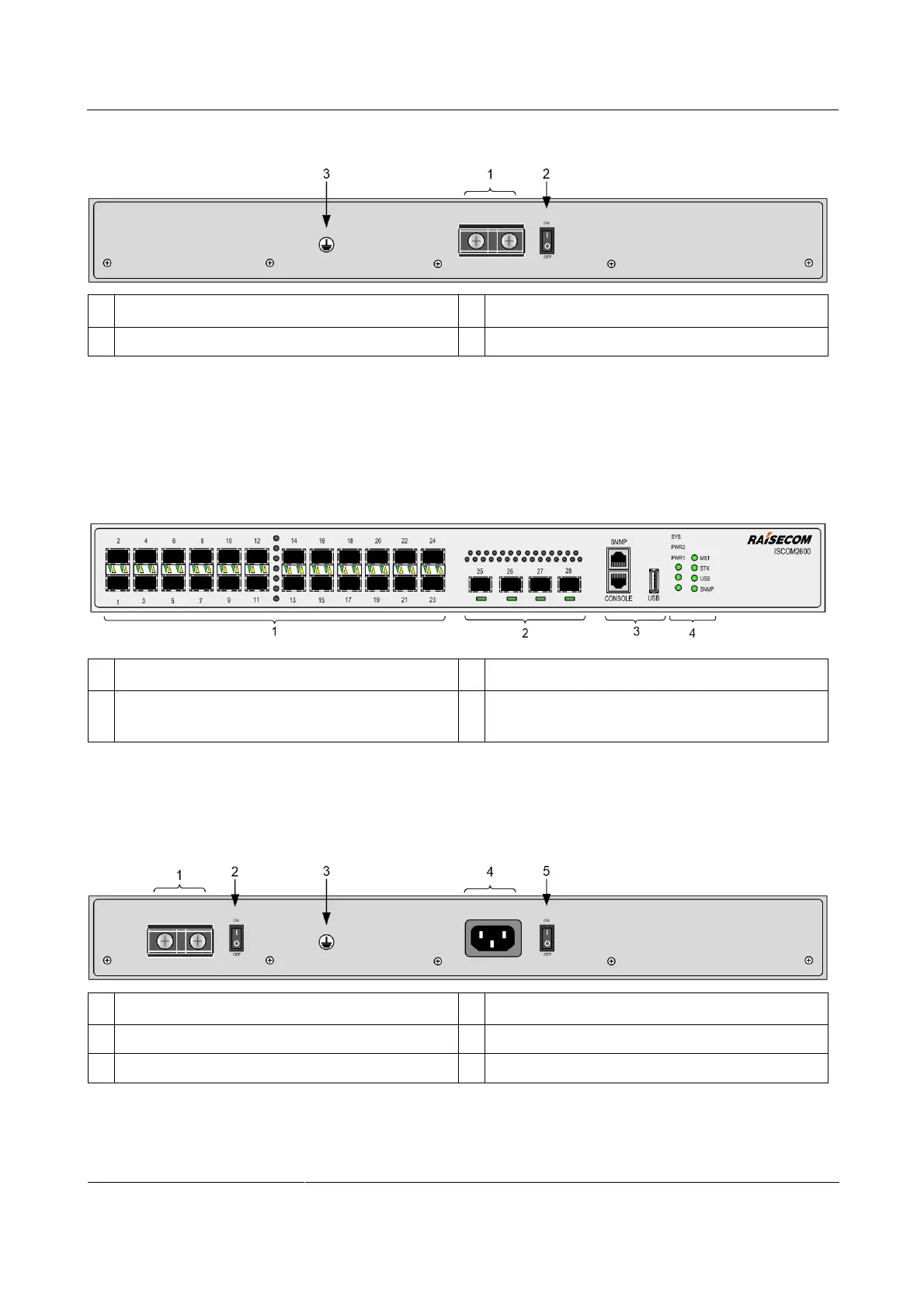

Figure 2-24 Rear panel of the ISCOM2600-28X-24F-DC/S
1
Power interface 1
2
Switch for power interface
3
Ground terminal
ISCOM2600-28X-24F-AC_DC
Figure 2-25 shows the front panel of the ISCOM2600-28X-24F-AC_DC.
Figure 2-25 Front panel of the ISCOM2600-28X-24F-AC_DC
1
Service downlink interfaces (1–24) and LEDs
2
Service uplink interfaces (25–28) and LEDs
3
SNMP interface, Console interface, and USB
interface
4
SYS, PWR1, PWR2, MST, STK, USB, and
SNMP LEDs
Figure 2-26 shows the rear panel of the ISCOM2600-28X-24F-AC_DC.
Figure 2-26 Rear panel of the ISCOM2600-28X-24F-AC_DC
1
Power interface 1
2
Switch for power interface 1
3
Ground terminal
4
Power interface 2
5
Switch for power interface 2
