The ground cable cannot be longer than 30 m and should be as short as possible;
otherwise, a ground bar should be used.
2.6.4 DC power cable
Introduction
The DC power cable transmits -48 VDC power to the power interface on the ISCOM2600
series switch, and supplies power for the whole device.
Appearance

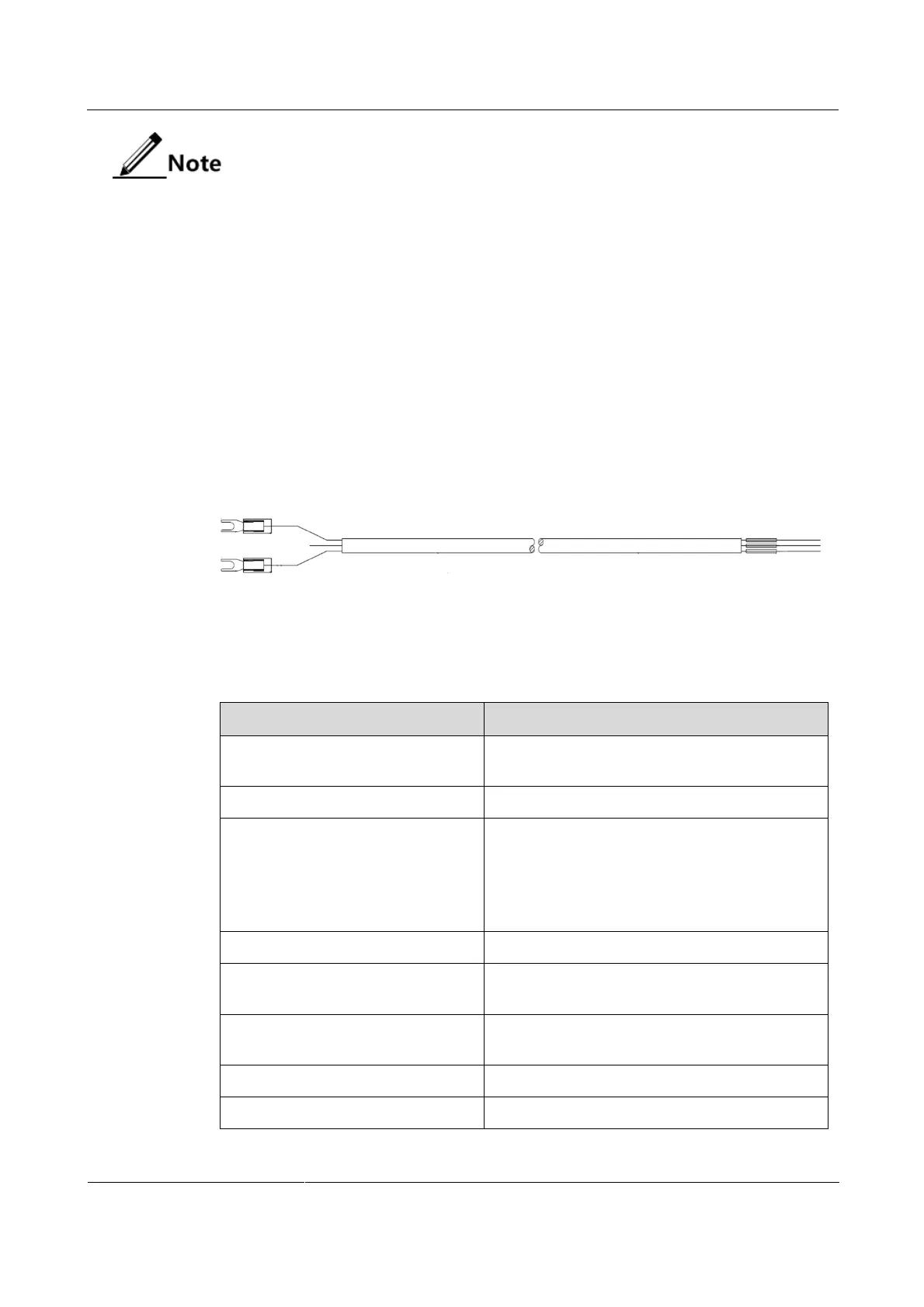

A DC power cable is composed of DC connectors and conducting wire, as shown in Figure 2-
45.
Figure 2-45 DC power cable
Technical specifications
Table 2-18 lists technical specifications of the DC power cable.
Table 2-18 Technical specifications of the DC power cable
Parameter
Description
Name
POL-DC (2 cores)-stripped wire/U-type terminal-
0.75 mm
2
-1.5 m/RoHS
Connector
U-type terminal (flame-retardant tube)
Cable

2-core PVC-sheathed cord

2 × 0.75mm
2
60227 IEC 53 (RVV)

The stripped wire is equipped with a flame-
retardant tube.

+Vin positive wire: brown

-Vin negative wire: blue
Rated voltage (V)
300/500
Insulation and withstanding voltage
(sheathe of cable core pairs)
2000 VAC, 5min
Insulation and withstanding voltage
(cable core)
1500 VAC, 5min
Certification
CCC
RoHS
Compliant
