Appearance

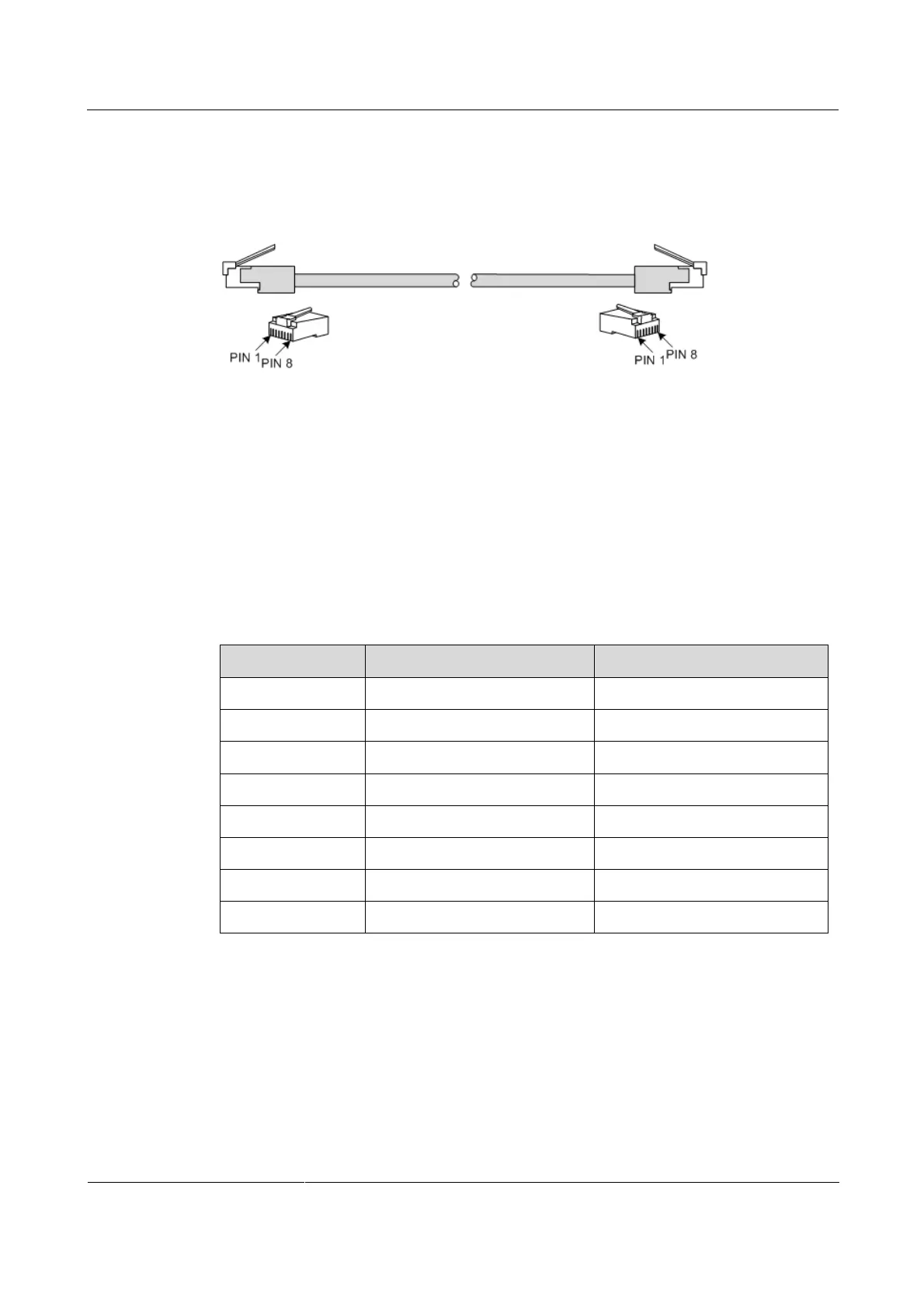

Figure 2-39 shows the Ethernet cable.
Figure 2-39 Ethernet cable
Technical specifications
The Ethernet cables are divided into two types:

Straight-through cable: used to connect devices of different type, such as between a PC
and a switch, or between a switch and a router

Crossover cable: used to connect devices of the same type, such as between PCs,
between switches, between routers, or between a PC and a router (they are of the same
type)
Table 2-15 lists wiring of EIA/TIA 568A and EIA/TIA 568B standards.
Table 2-15 Wiring of EIA/TIA 568A and EIA/TIA 568B standards
Connector (RJ45)
EIA/TIA 568A
EIA/TIA 568B
PIN 1
White/Green
White/Orange
PIN 2
Green
Orange
PIN 3
White/Orange
White/Green
PIN 4
Blue
Blue
PIN 5
White/Blue
White/Blue
PIN 6
Orange
Green
PIN 7
White/Brown
White/Brown
PIN 8
Brown
Brown
Both two RJ45 connectors of the 10/100/1000 Mbit/s straight-through cable follow
EIA/TIA568B standard wiring.
Figure 2-40 shows wiring of the 10/100/1000 Mbit/s straight-through cable.
