Raisecom ISCOM2600 (B) Series User Manual

Raisecom
ISCOM2600 (B) Series Product Description
2 System structure
Raisecom Proprietary and Confidential
Copyright © Raisecom Technology Co., Ltd.
34
Appearance
Figure 2-38 shows the LC/PC fiber connector.

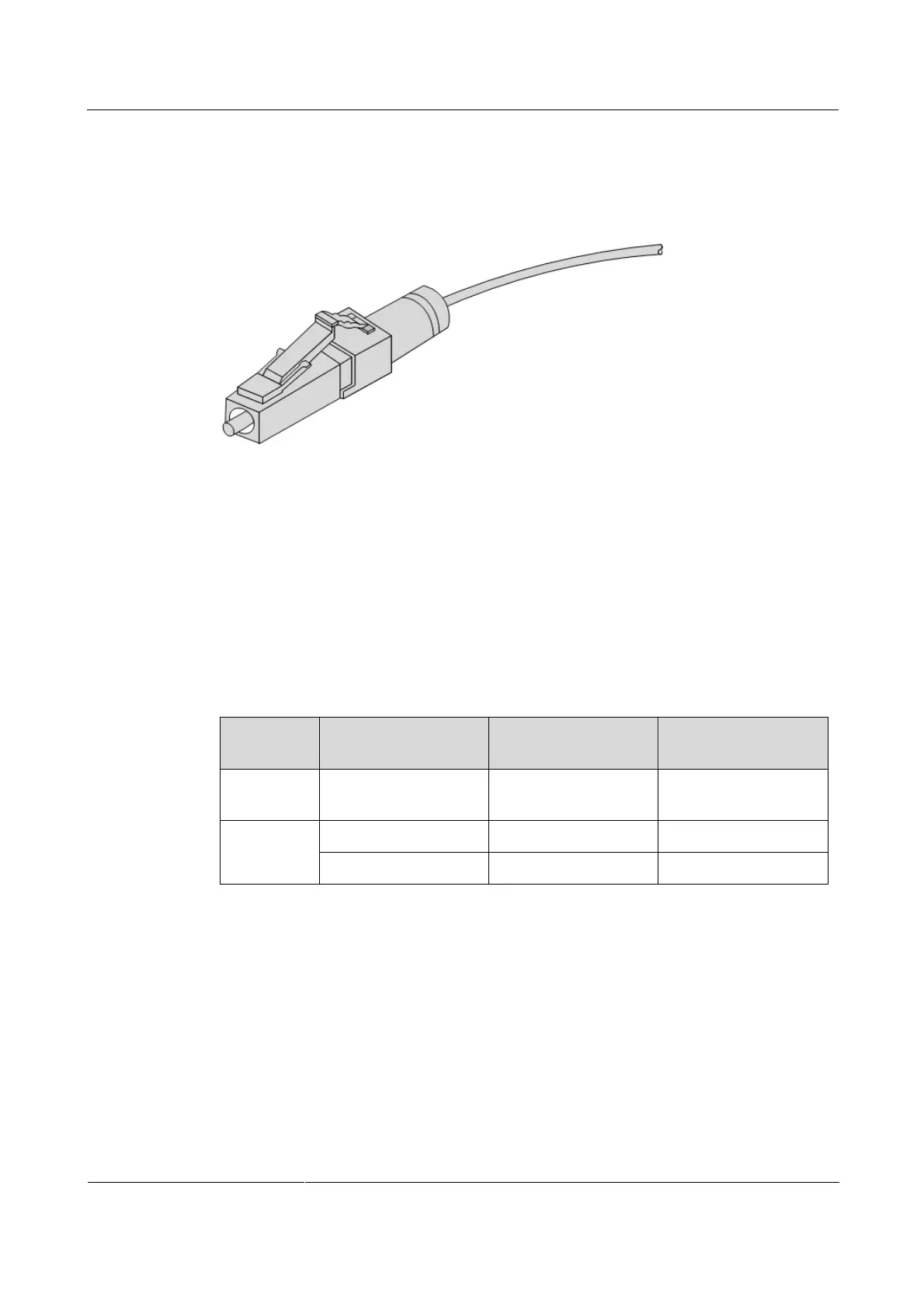

Figure 2-38 LC/PC fiber connector
When connecting or removing the LC/PC optical connector, align the connector with the
optical interface, and do not rotate the fiber. Operate the fiber as below:

Align the head of the fiber jumper with the optical interface and insert the optical fiber
into the interface gently.

To remove the fiber, press the latch on the connector, press the fiber head inwards
slightly, and pull the fiber out.
Wiring
Table 2-14 lists wiring of the fiber.
Table 2-14 Wiring of fiber
Wiring
Optical interface on
local device
Direction of optical
signals
Optical interface on
peer device
Single-fiber
wiring
Optical interface
<->
Optical interface
Dual-fiber
wiring
Tx optical interface
->
Rx optical interface
Rx optical interface
<-
Tx optical interface
2.6.2 Ethernet cable
Introduction
The Ethernet cable connects the Ethernet electrical interface and SFP electrical interface on
the ISCOM2600 series switch.
The Ethernet interface on the ISCOM2600 series switch is adaptive to straight-through cable
mode and crossover cable mode.
