4.1.4 Placing or Mounting the Instrument
The R&S SMW is designed for use under laboratory conditions, either on a bench
top or in a rack using the standard rackmount kit.
Bench top operation
If the R&S SMW is operated on a bench top, the surface must be flat. The instru-
ment can be used in horizontal position, standing on its feet, or with the support
feet on the bottom extended.

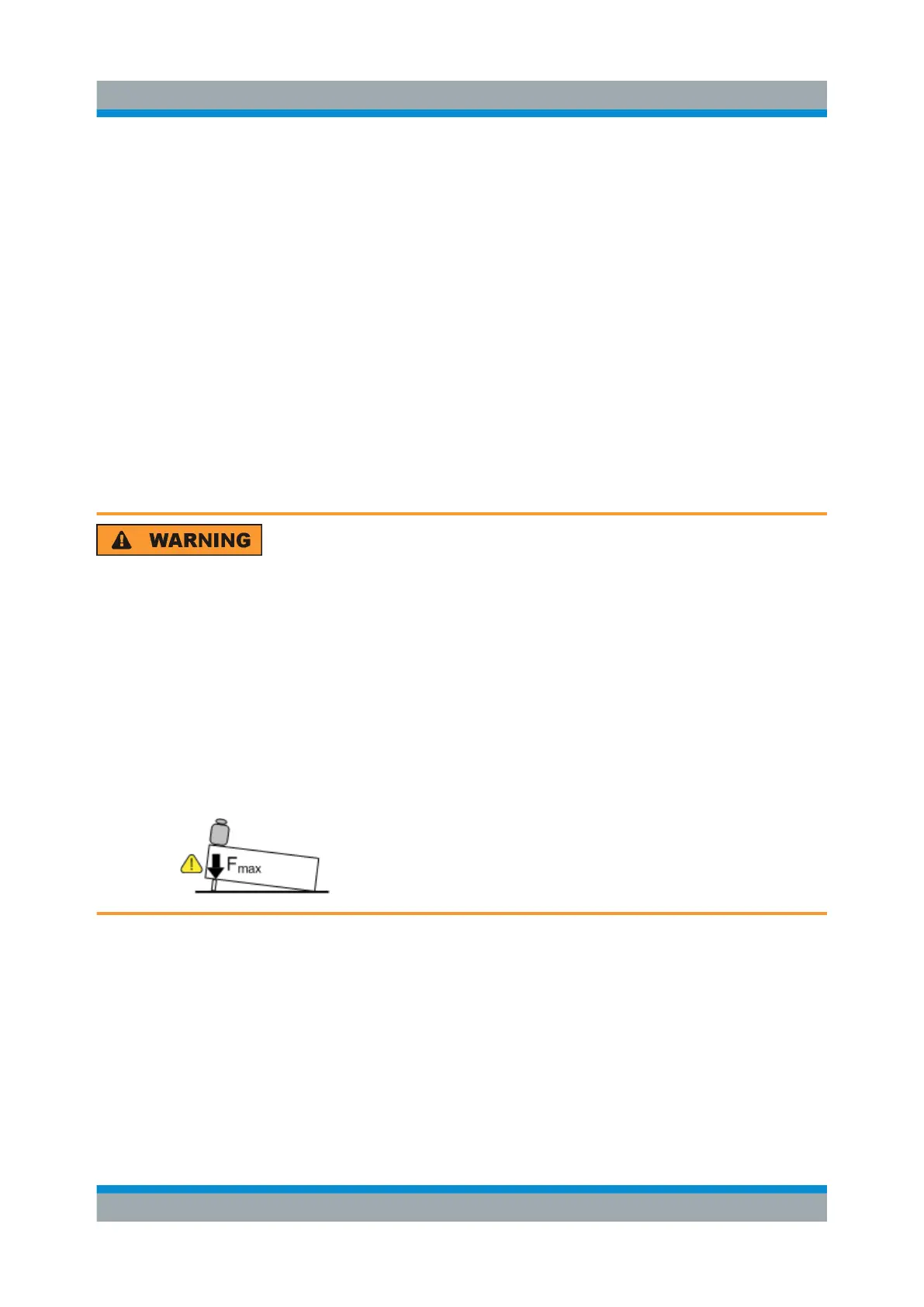

Risk of injury if feet are folded out
The feet can fold in if they are not folded out completely or if the instrument
is shifted. Collapsing feet can cause injury or damage the instrument.
●
Fold the feet completely in or out to ensure stability of the instrument.
Never shift the instrument when the feet are folded out.
●
When the feet are folded out, do not work under the instrument or place
anything underneath.
●
The feet can break if they are overloaded. The overall load on the fol-
ded-out feet must not exceed 500 N.
