Trying Out the Instrument
R&S
®
SMW200A
66Getting Started 1412.9220.02 ─ 21

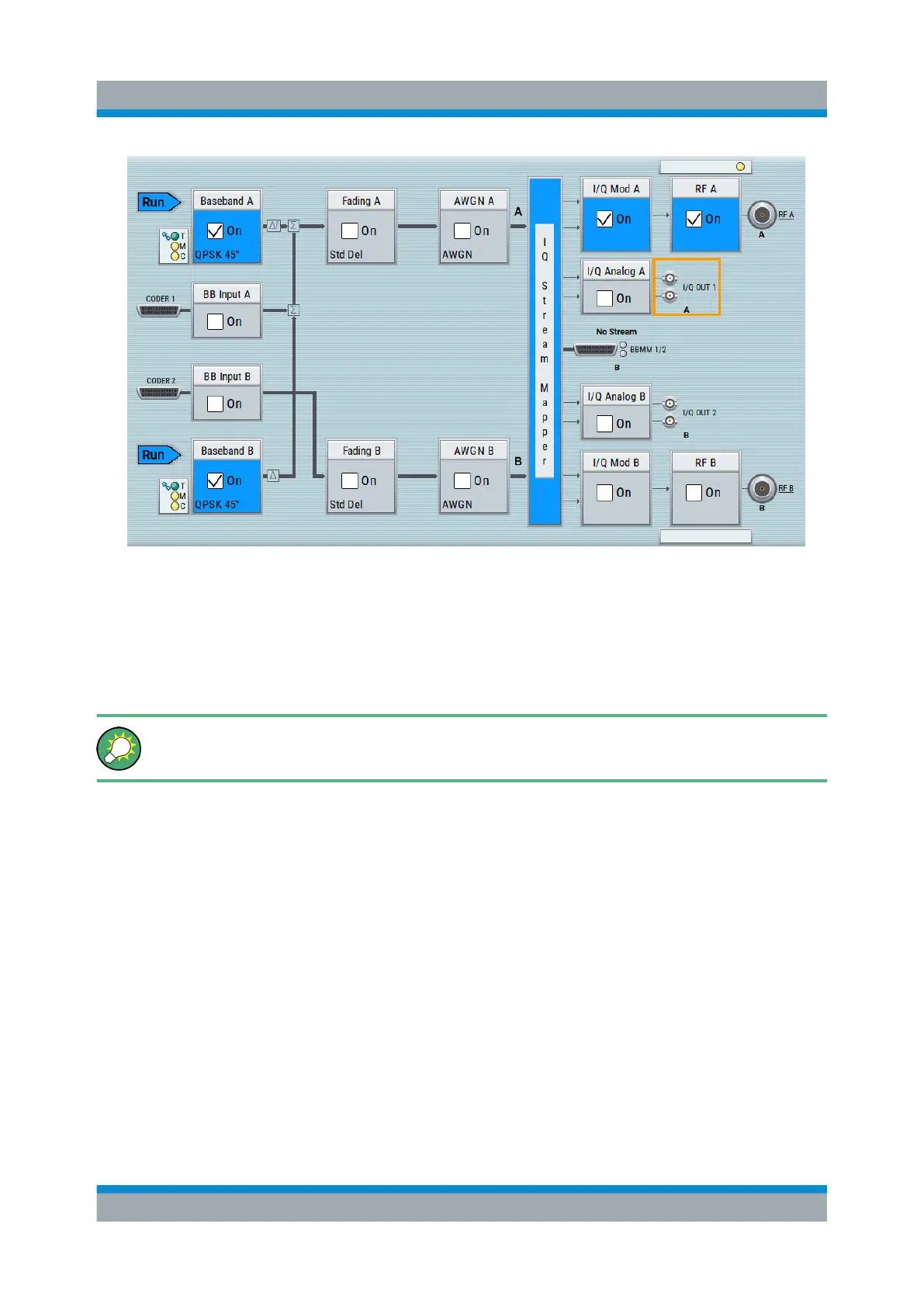

The generated composed signal (stream A) is output at the analog RF A con-
nector and routed to the I/Q Out 1 connector. The block diagram confirms this
routing and displays the letter "A" next to the symbols of the output connec-
tors.
Consider however that the I/Q connectors are disabled.
To learn more and to explore the whole range of the routing capability, refer
to chapter "Signal Routing and System Configuration" in the user manual.
6.6 Verifying the Generated Signal with the Graph-
ics Display
It is often useful to check the spectra of the configured signals, before you enable
the RF output of the instrument.
The R&S SMW provides a build-in function to represent the generated signal on a
graphical signal display. We demonstrate this feature by showing the characteris-
tics at one particular point of the signal processing chain. You can, however, dis-
play the signal characteristics at other different stages.
Verifying the Generated Signal with the Graphics Display
