R&S SMW200A User Manual

Instrument Tour
R&S
®
SMW200A
39Getting Started 1412.9220.02 ─ 21
1
2
4
5
6
7
8
3
9
10 11 12 13 14
21
16
17a
18 19
20a
16 16 16
17a
17b
20b
15
BBMM
17b
22

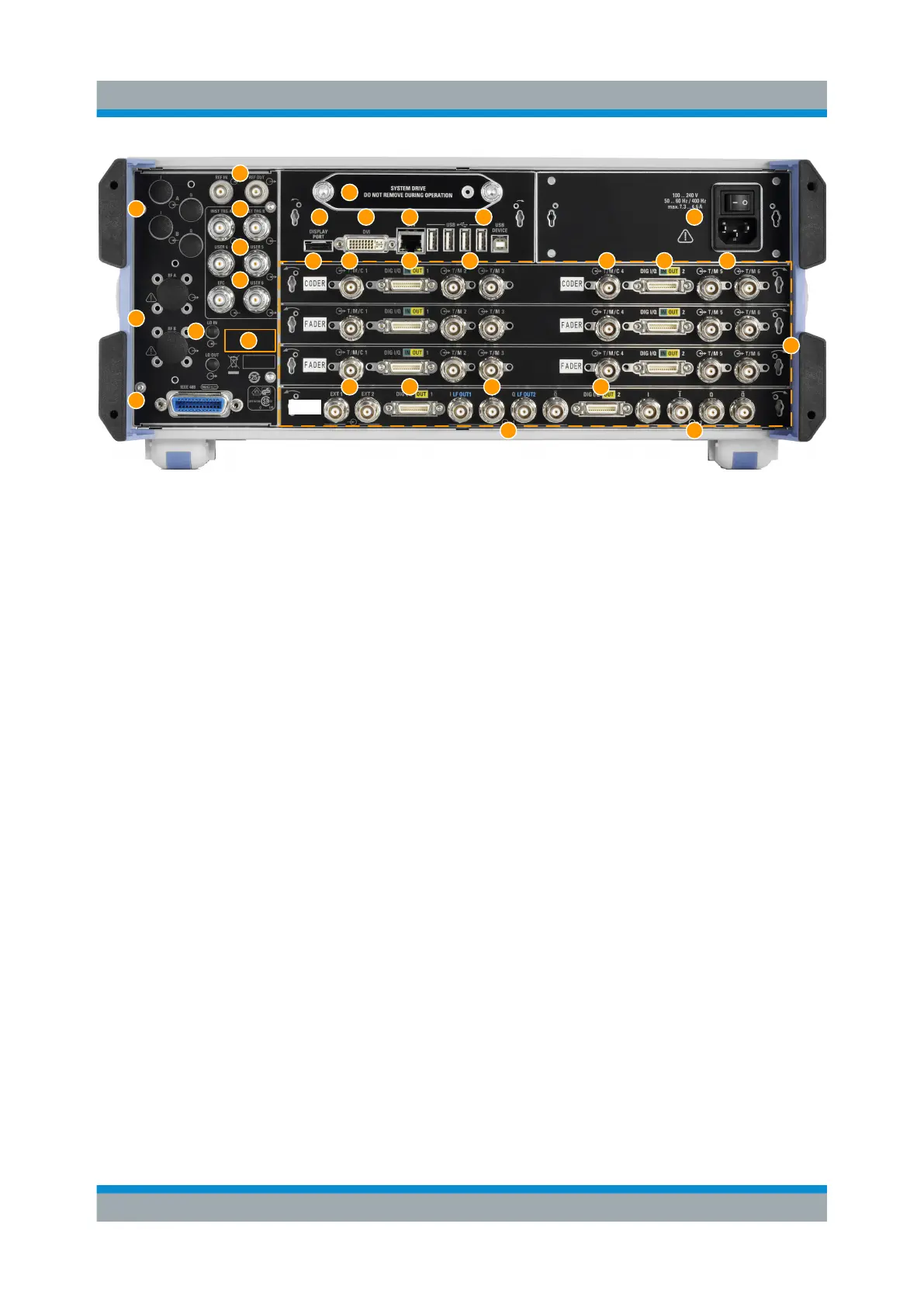

Figure 5-3: Rear panel view of instrument equipped with R&S SMW-B10 and R&S SMW-
B13T (standard baseband)
1, 2 = Connectors for use in a rack
3 = IEC 625/IEEE 488 connector
4 = REF IN/REF OUT connectors
5 = INST TRIG x connectors
6 = USER x connectors
7 = EFC connectors
8 = LO IN/LO OUT connectors
9 = HDD/SSD system drive
10, 11 = Display Port, DVI connectors
12 = LAN connectors
13 = USB/USB Device connectors
14 = AC power supply connection and main power switch
15 = Board designation (CODER, FADER, BBMM)
16 = T/M/C and T/M connectors
17a, 17b = DIG I/Q connectors
18 = EXT x connectors
19 = LF OUT x connectors
20a, b = I/Q, I/Q Bar connectors
21 = Serial number (six digits in the string 1412.0000.02-<serial number>-<checksum>)
22 = R&S SMW-B10, R&S SMW-B13T and R&S SMW-B14 boards location
The rear panel view differs in particular if the standard or wideband baseband
options are installed. The Figure 5-4 shows a detail view of the rear panel. Shown
are only the different boards.
Rear Panel Tour
