Trying Out the Instrument
R&S
®
SMW200A
52Getting Started 1412.9220.02 ─ 21
4. Select the "Modulation" tab and observe the used "Modulation Type".

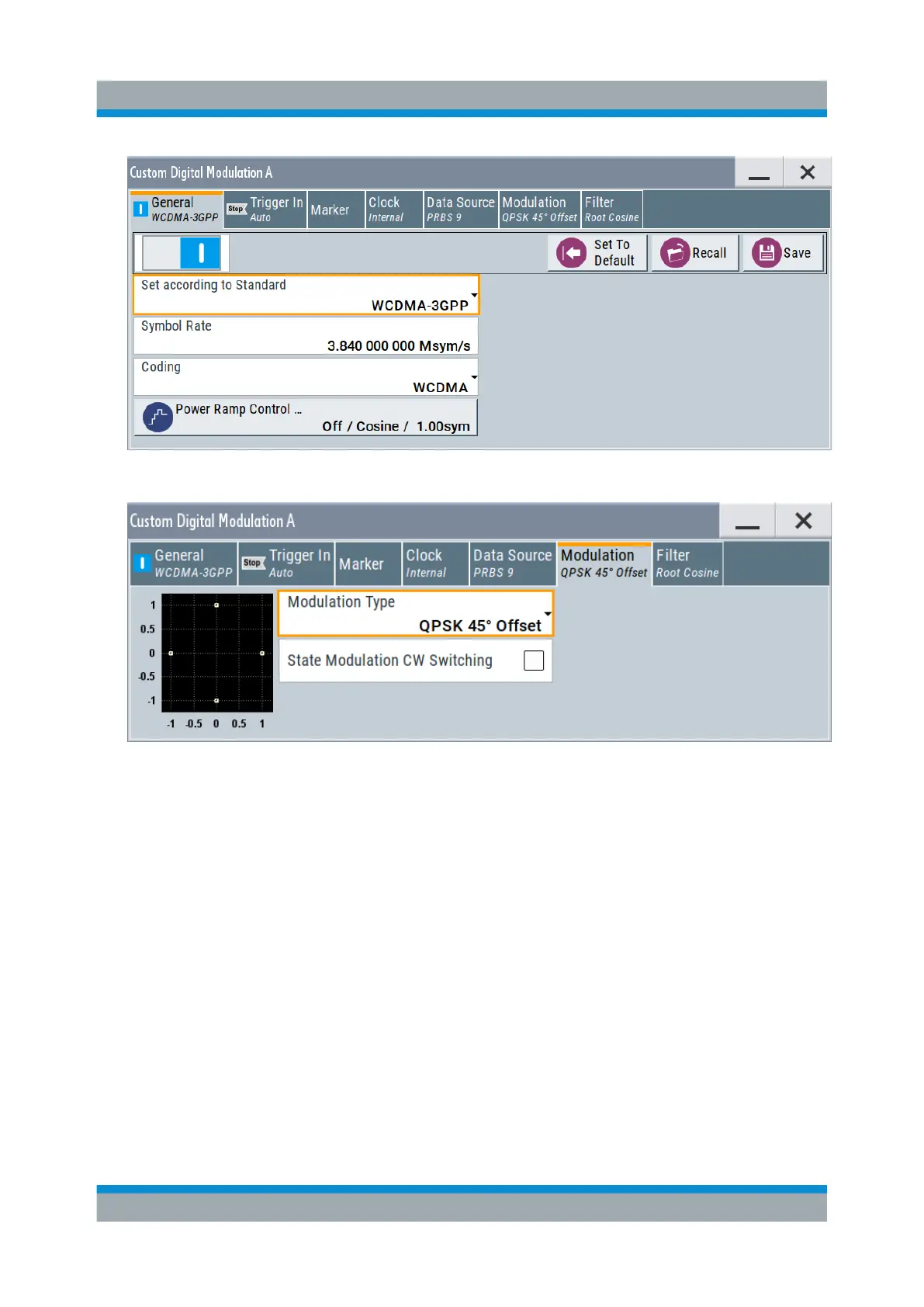

Figure 6-3: Display of the used modulation type
The instrument activates automatically "I/Q Mod A", uses the internal trigger
and clock signals, and generates a WCDMA-3GPP signal, modulated with a
QPSK 45° offset modulation.
Generating a Digitally Modulated Signal
