5 CONTROLS

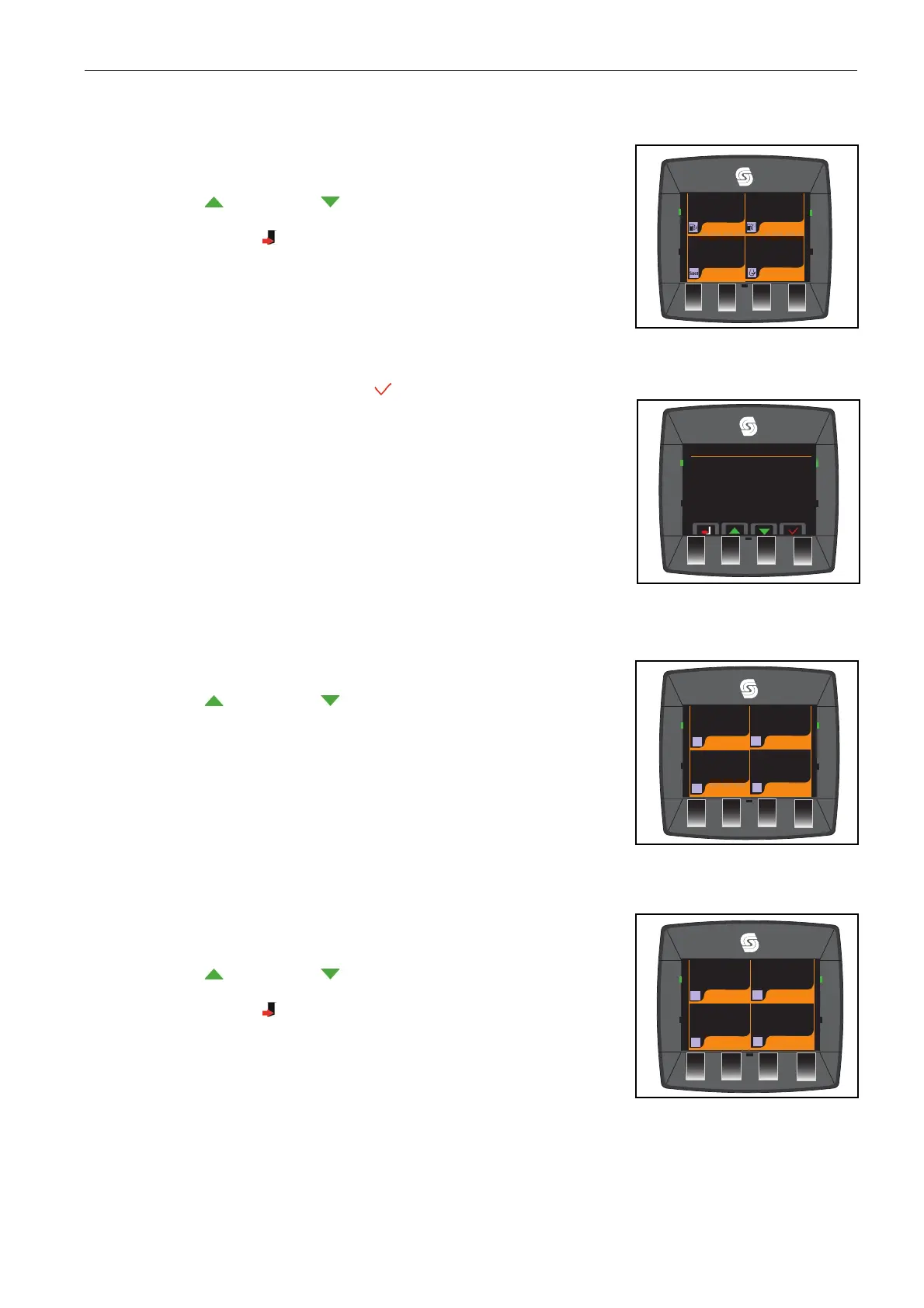

5.2.Z.32 INFORMATION SCREEN TWO _______________________________________
This screen displays, engine total fuel used (liter) engine fuel rate (l/h), DPF
soot (%) and drive engine torque (%)
Press the button up and down to move between screen one and two.
Press the left side button to return to the previous menu.
5.2.Z.33 ECU MONITOR RESERVED (J1939)___________________________________
Select the J1931 Reserved  and accept
5.2.Z.34 RESERVED SCREEN ONE __________________________________________
This screens displays, engine air inlet temperature (°C), intake manifold
temperature (°C), engine torque percent (%) and engine oil pressure (KPa).
Press the button up and down to move between screen one and two.
5.2.Z.35 RESERVED SCREEN TWO __________________________________________
This screen displays, engine speed (rpm), engine throttle postion (%), engine
coolant temperature (°C) and battery voltage (Volt).
Press the button up and down to move between screen one and two.
Press the left side button to return to the previous menu.
%
