Ransomes HM600 - Cab Controls

en-49

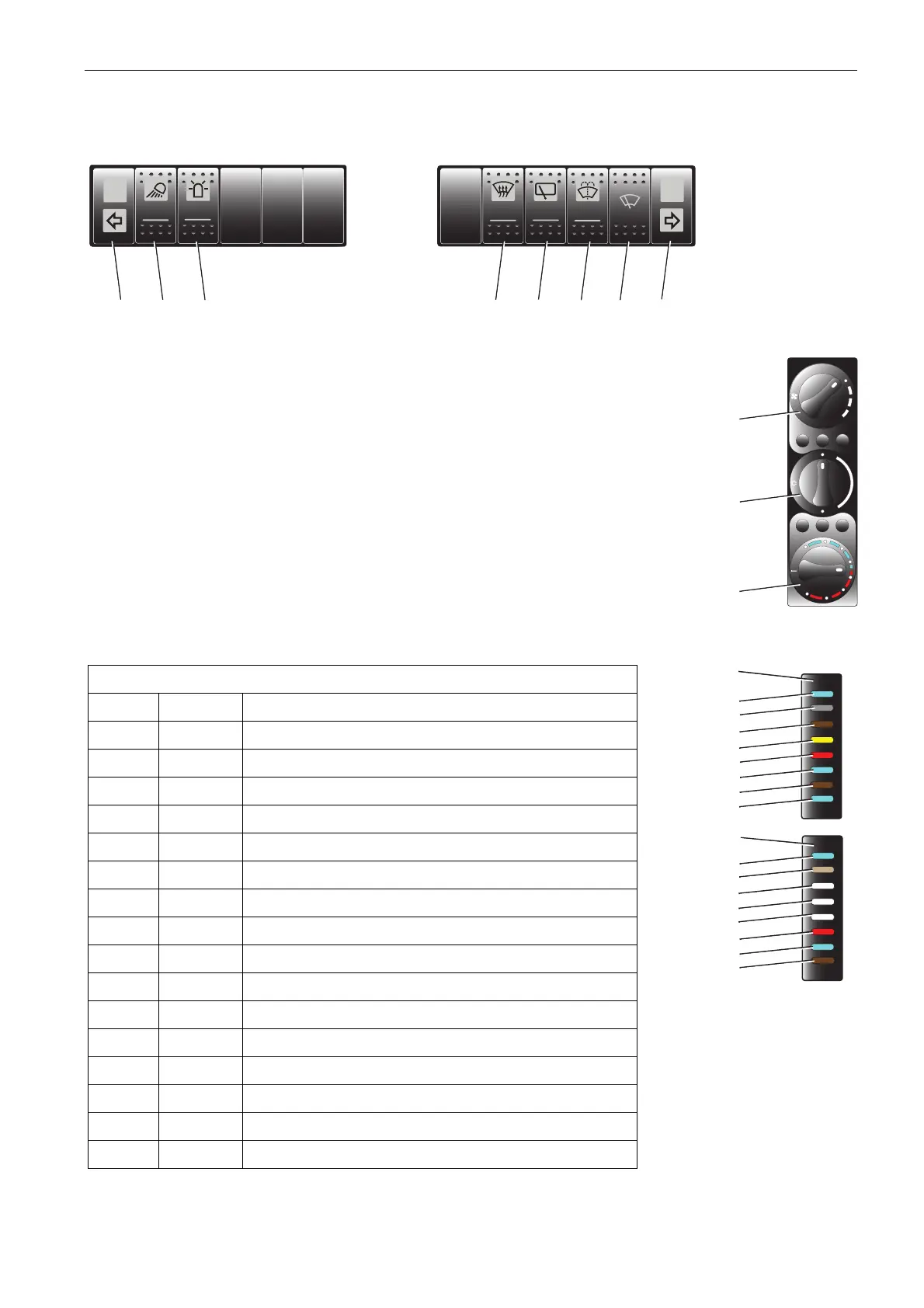

5 CONTROLS
A Left turn signal
B Working lights switch (optional)
C Beacon switch
D Front screen de-mist switch
E Rear screen wiper switch (optional)
F Front screen wash switch
G Front screen wiper switch
H Right turn signal
J Fan control
K Air conditioning control
L Temperature control
M Fuse holder
N Fuse holder
FUSE HOLDER
Fuse Rating Protected Circuits
M8 15A Wiper front
M7 25A Front screen heating
M6 7.5A Radio (15)
M5 20A Working lights / locater lighting left
M4 10A Wiper rear / marker lights
M3 15A Air condition (Fan condenser)
M2 7.5A Air condition
M1 15A Air condition (Fan)
N8 15A Low beam
N7 5A Parking lights (15)
N6 - -
N5 - -
N4 - -
N3 10A Radio (30) / Interior light
N2 15A Beacon
N1 7.5A Air condition (enable signal compressor)
A
B
CH
G
F
E
D
3
2
1
0
A
/
C
O
F
F
F
O
F
15
25
7.5
20
10
15
7.5
15
15
5
10
15
7.5
J
K
L
N
8
7
6
5
4
3
2
1
8
7
3
2
1
6
5
4
M
5 11. CAB CONTROLS ____________________________________________________
