GB-F-NL-20

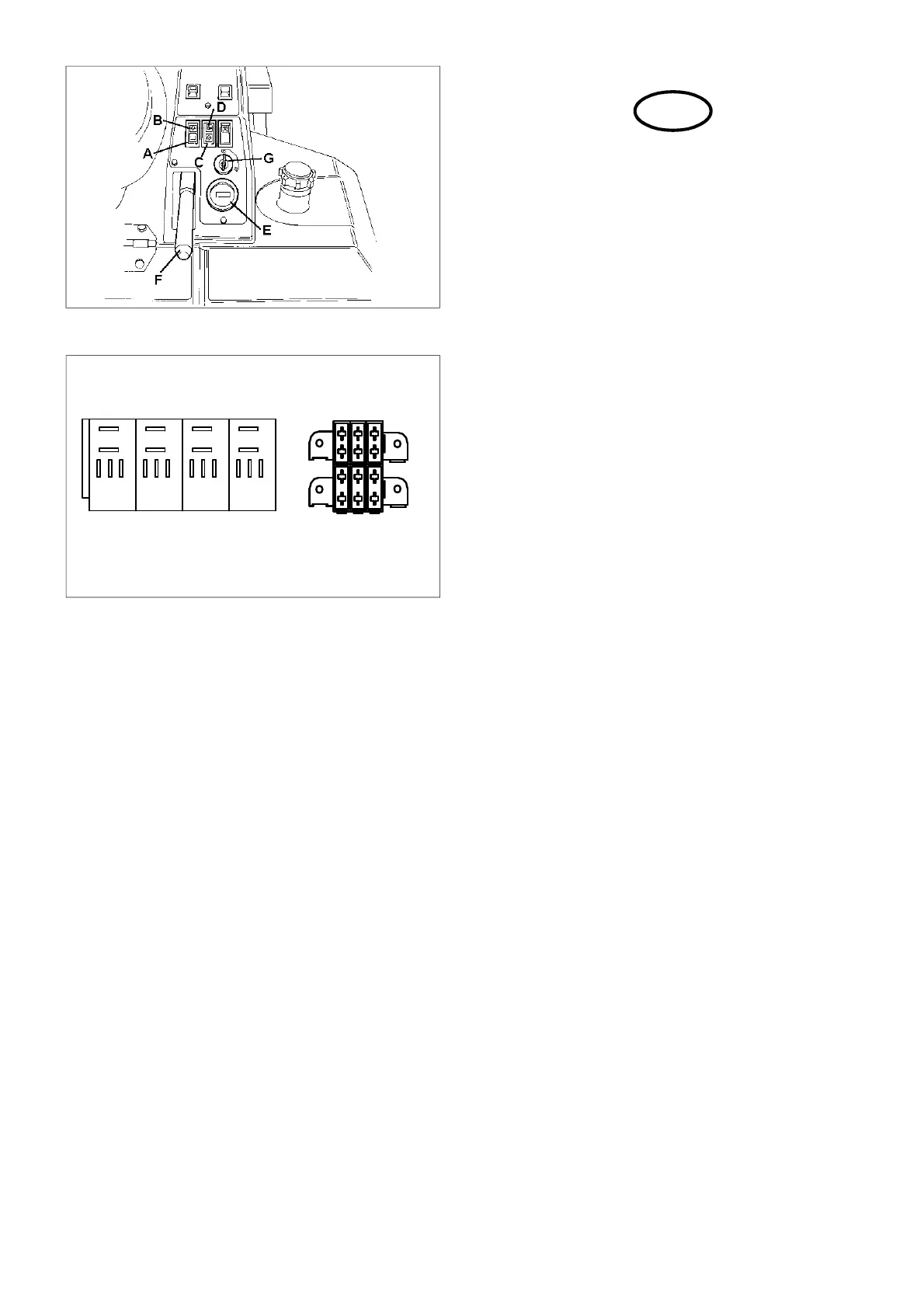

CONTROL PANEL (Fig.10)
A. CHARGING WARNING LAMP
Colour red, on when ignition is switched on and will go
out when the engine is started. If the light comes on
while the engine is running, the fan belt may be
slipping or broken or a fault in the electrical system is
indicated and should be investigated. STOP
IMMEDIATELY.
B. ENGINE OIL PRESSURE WARNING LAMP
Colour red, on when the ignition is switched on, and
will go out once the engine has started. If the light
comes on while the engine is running - STOP
IMMEDIATELY as this indicates that the engine oil
pressure is too low. Check the level of oil in the sump
and top up as necessary. Check the oil pressure
sender switch. Continued operation may cause
extensive damage to the engine.
C. ENGINE OVERHEAT WARNING LAMP
Colour red, on when the engine temperature reaches a
preset level. If the lamp comes on and a warning
horn is sounded STOP IMMEDIATELY and investigate
the cause.
D. ENGINE PREHEAT INDICATOR LAMP
Colour amber, on when the ignition switch is turned
clockwise to the pre-heat position. Once the lamp
goes out the engine can be started.
E. HOURMETER
Records engine running hours
FUSES AND RELAYS (Fig.11)
The fuse and relay box is situated under the seat
plate. To gain access to the fuses and relays raise the
seat and remove the cover.
GB
Fig.10
Fig.11
