Raven RS1 Calibration & Operation Manual

CHAPTER 3
16 Raven RS1™ Guidance and Steering Calibration & Operation Manual

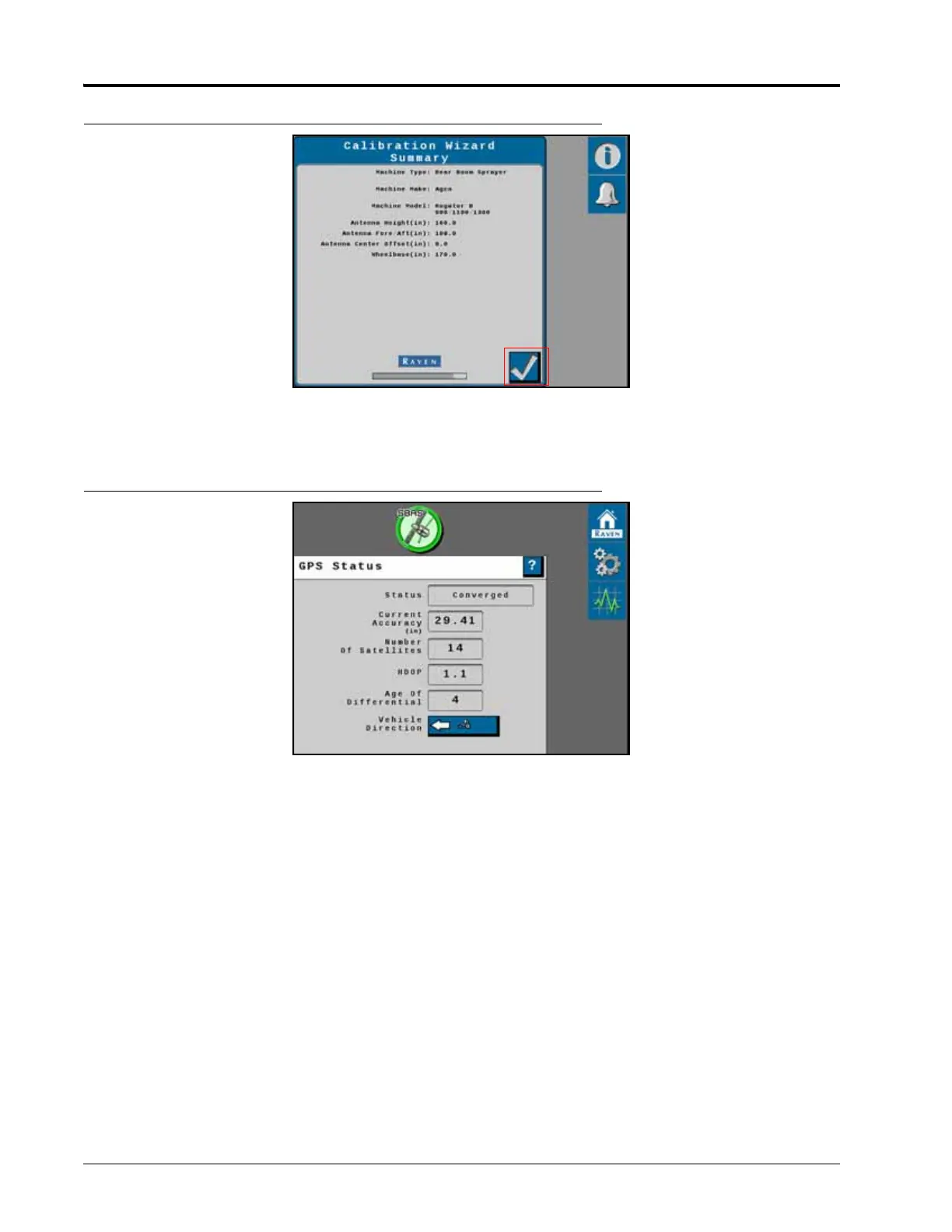

FIGURE 20. Calibration Complete
10. Select the Accept arrow to complete the calibration process. Once calibration is complete, the following screen
will appear:
FIGURE 21. GPS Only Home Screen
GPS AND STEERING CALIBRATION
NOTE: The System Information, DTC, and Machine Test screens can be viewed during calibration. For further
information on these settings, refer to the following sections of this manual:
• “System Information” on page 68
• “Diagnostic Trouble Codes (DTC)” on page 61
• “Machine Test” on page 65
