Raven RS1 Calibration & Operation Manual

P/N 016-4010-001 Rev. A 71
DIAGNOSTICS AND TROUBLESHOOTING
• The machine uses two tire configurations (floater vs. row crop tires)
• Different soil types
• Different speeds (planting vs. spraying)

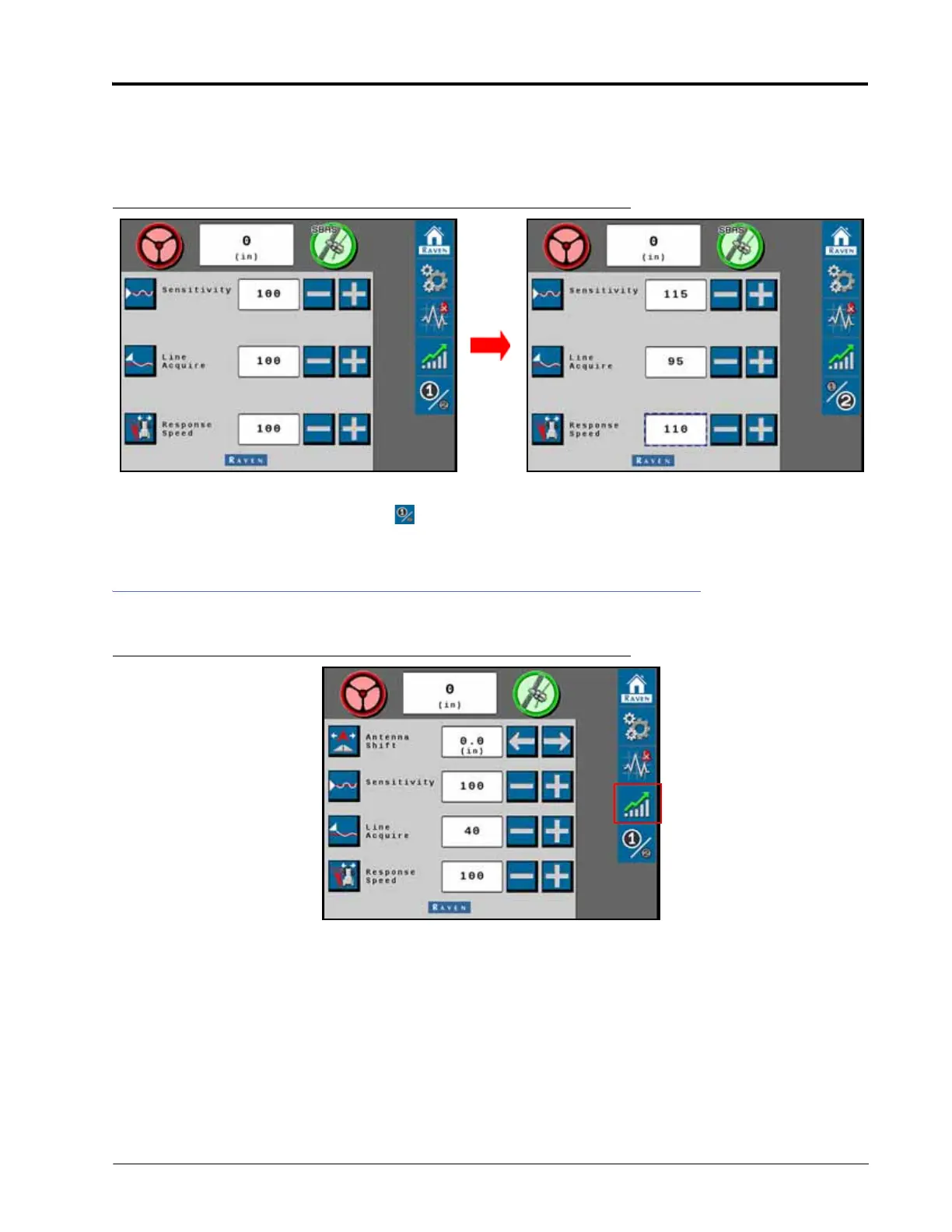

FIGURE 20. Preset Gains Settings
To toggle between the settings, press the button.
PERFORMANCE MONITOR
FIGURE 21. RS1 Home Screen
1. Select the Performance icon on the right side of the Machine Settings screen to view the short-term system
performance.
