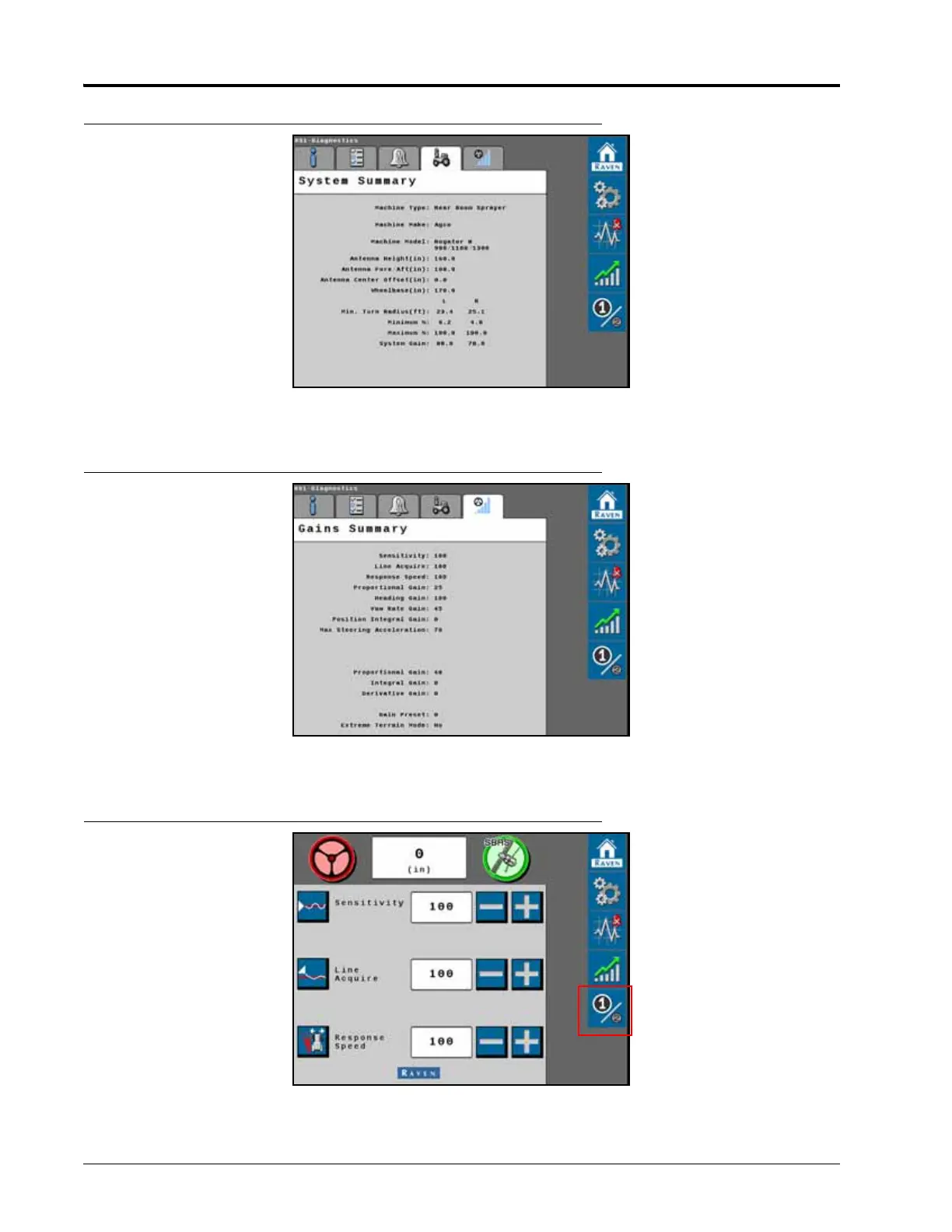

FIGURE 17. System Summary Screen
The System Summary screen displays the machine settings and calibrated steering settings for the RS1 system.
FIGURE 18. Gains Summary Screen
The Gains Summary screen displays all of the advanced steering settings used to steer the machine.
FIGURE 19. Preset Steering Gains
The Preset Gains option allows the operator to switch back and forth between two sets of steering gain settings.
Different sets of settings may be useful when:
