STEERING SETUP
WHEEL ANGLE SENSOR SETTINGS

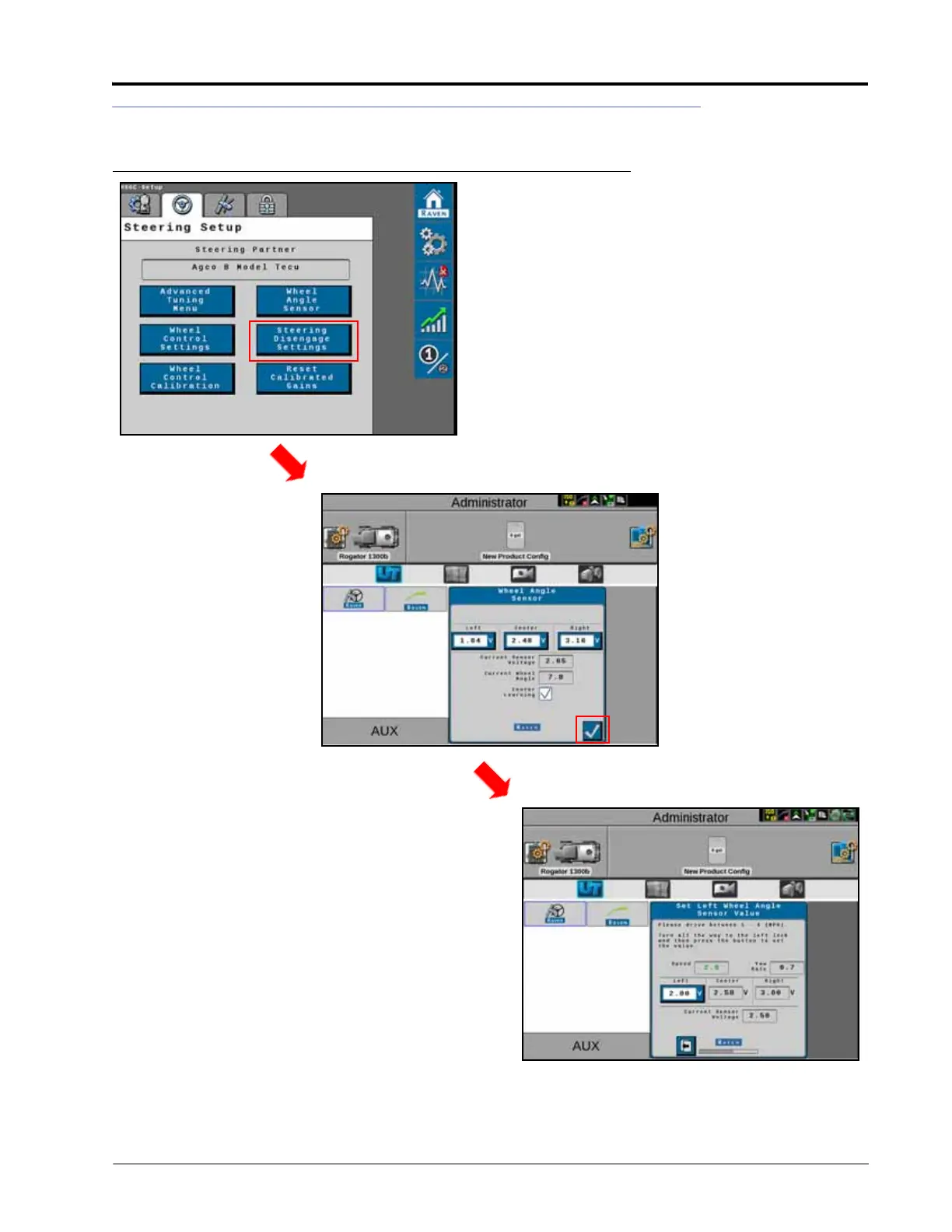

FIGURE 9. Wheel Angle Sensor Calibration Screen
• Left/Center/Right - Displays the current calibration values. These values can be modified by selecting the
desired WAS value to be changed, moving the wheels to the correct position, and pressing the Accept button.
• Current Sensor Voltage - Displays the sensor voltage detected during calibration.
