Raven RS1 - Chapter 10 Diagnostics and Troubleshooting; Button Definitions; Steering Status

CHAPTER
10
P/N 016-4010-001 Rev. A 57
CHAPTER 10 DIAGNOSTICS AND
TROUBLESHOOTING
BUTTON DEFINITIONS
STEERING STATUS

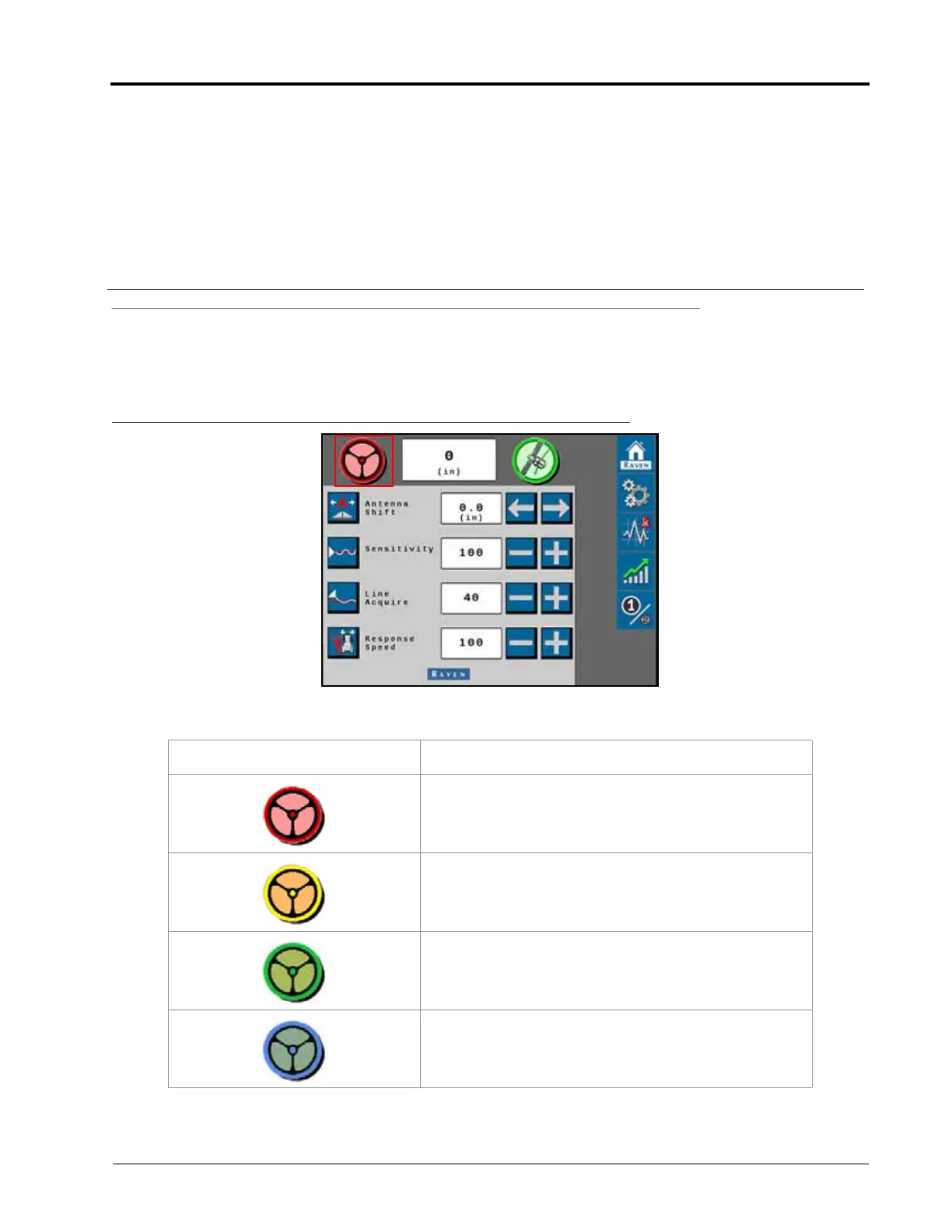

FIGURE 1. Home Screen
The following are common steering status or mode messages which may occur while the RS1 system is engaged:
Display Message
Active diagnostic and troubleshooting codes are
present. The RS1 system cannot be engaged in this
state.
Active diagnostic and troubleshooting codes are
present. The RS1 system can be engaged in this state,
but performance quality may be degraded.
No active diagnostic or troubleshooting codes are
present. The RS1 system is ready to be engaged.
NOTE: Both the steering wheel and GPS icons must be
green in order to engage the RS1 system.
Steering is engaged, with no active diagnostic or
troubleshooting codes present in the RS1 system.
