CALIBRATION
TERRAIN COMPENSATION CALIBRATION

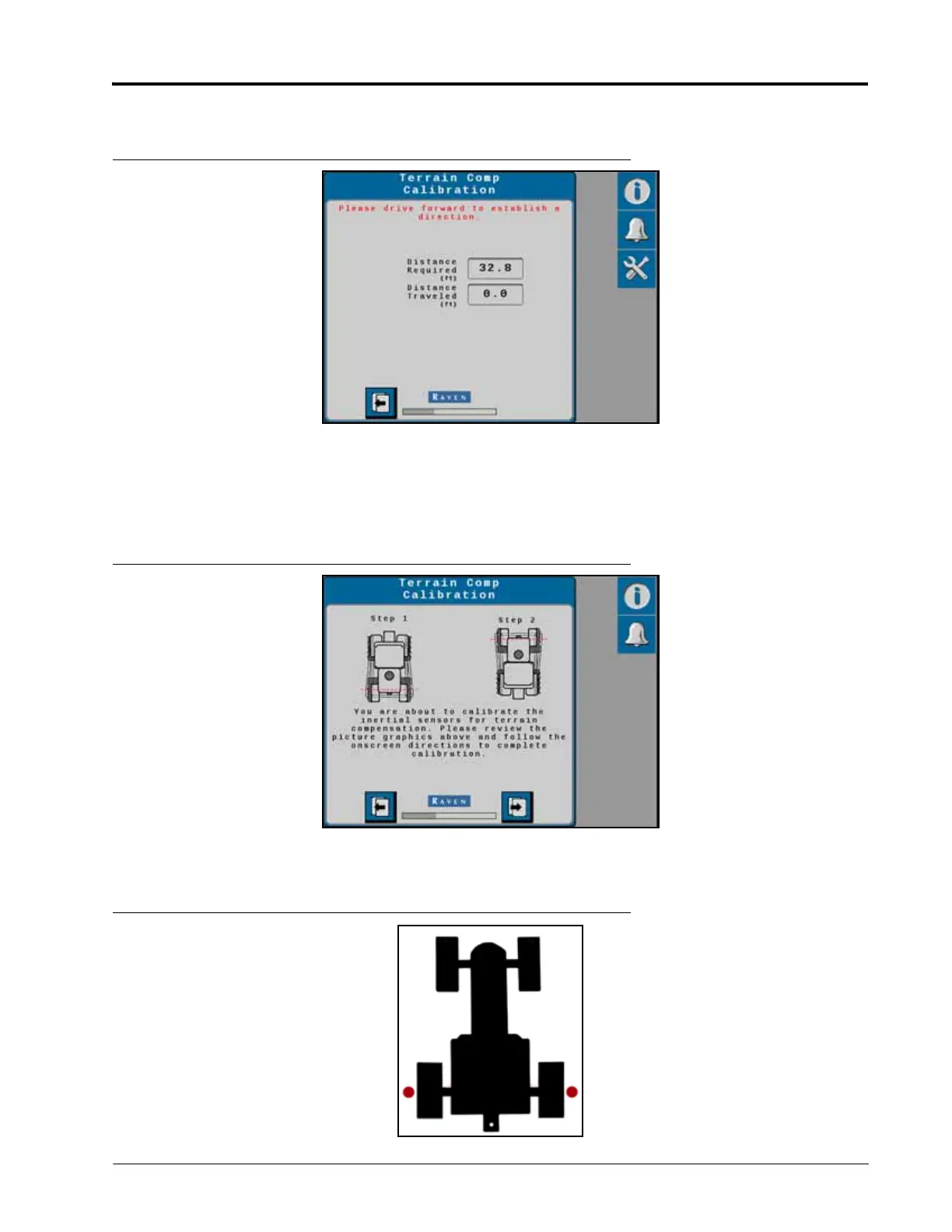

FIGURE 30. Terrain Compensation Calibration Wizard
1. Drive the machine forward 33 feet and park on a flat surface.
NOTE: The machine must detect a forward motion prior to calibration to determine which direction is
forward.
FIGURE 31. Terrain Compensation Calibration Wizard
2. Follow the on-screen instructions to begin the calibration process.
FIGURE 32. Machine’s Rear Axle Marked Before Terrain Comp Calibration
