Raven RS1 - Master Switch; Resume Switch

CHAPTER 10
58 Raven RS1™ Guidance and Steering Calibration & Operation Manual

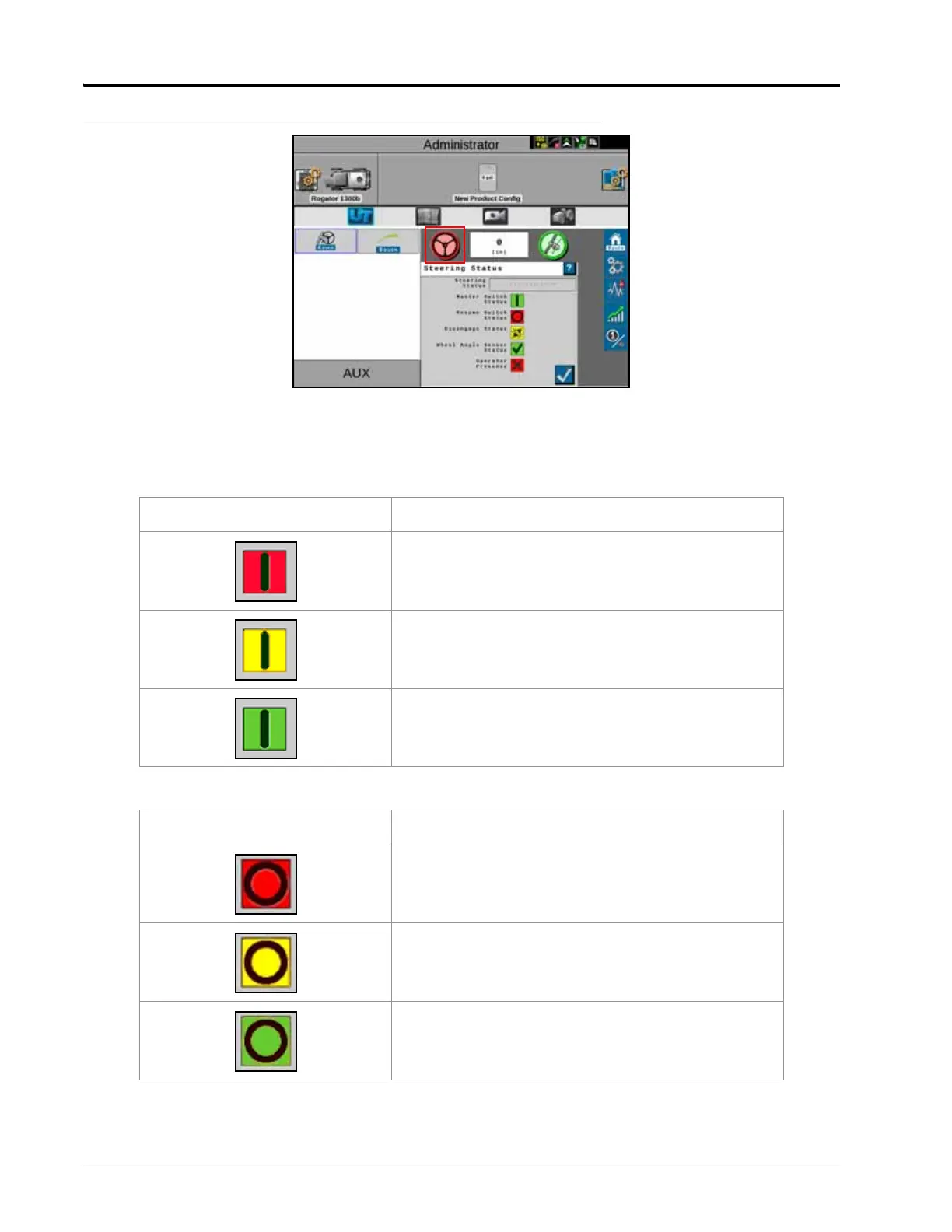

FIGURE 2. Steering Status Screen
Press the steering wheel icon to display the Steering Status screen. The Steering Status field displays the last exit
code and the reason why steering was disabled.
MASTER SWITCH
RESUME SWITCH
Display Message
The master switch is set to “road mode.” The RS1 system
cannot be enabled until the master switch is toggled to
“field mode.”
The master switch is disconnected. The RS1 system
cannot be enabled until the master switch is
reconnected.
The master switch is set to “field mode” and the RS1
system can be enabled.
Display Message
The resume switch is set in the OFF position.
The resume switch is disconnected.
The resume switch is in the ON position.
