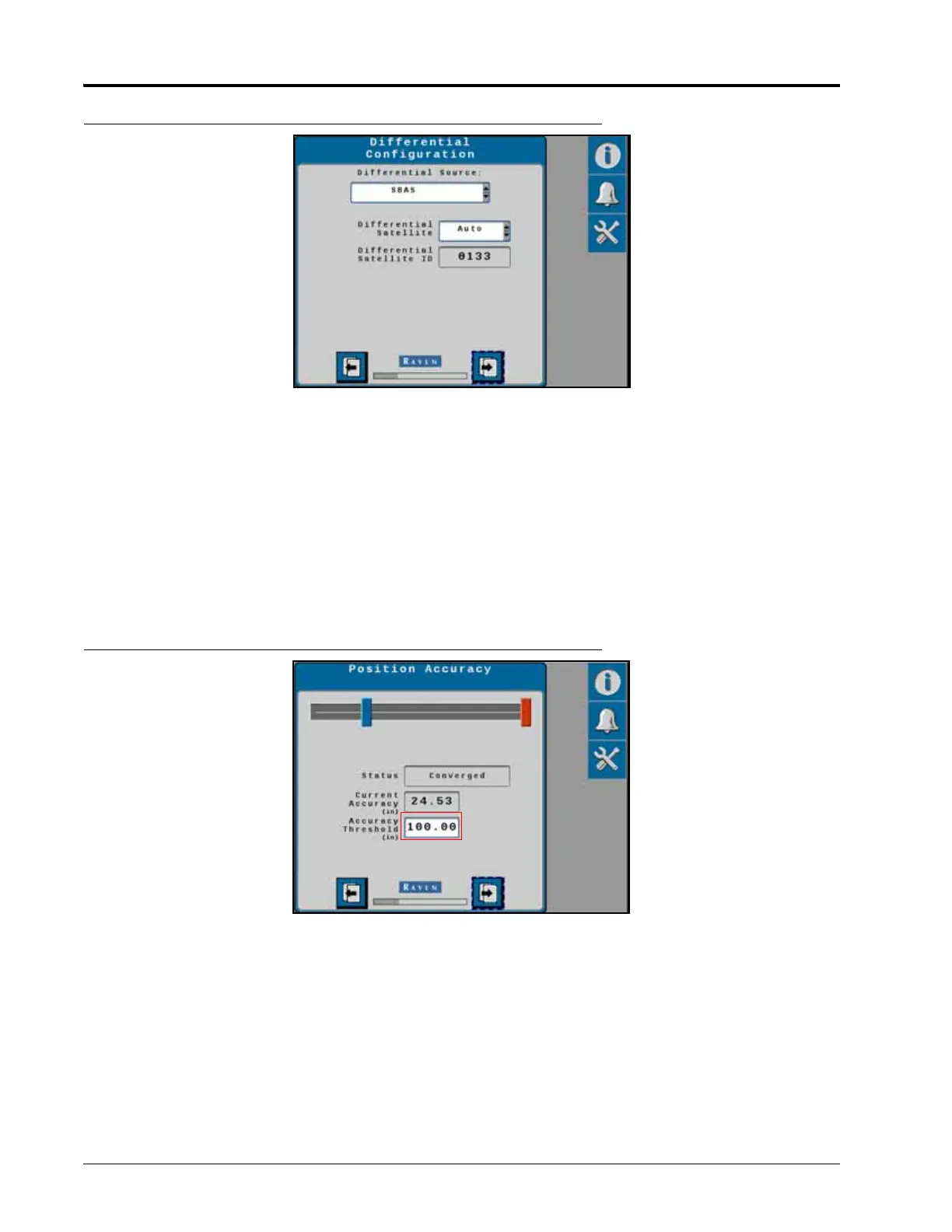

FIGURE 28. GPS Differential Configuration Screen
12. Select the appropriate GPS Differential Configuration from the drop-down box:
•GL1DE
•SBAS
•Satellite GS
•RTK
NOTE: Depending on the number of feature unlocks purchased, all options may not be available for
selection in the drop-down box. Contact your local Raven dealer to purchase additional unlock codes.
13. Select the Next arrow.
FIGURE 29. Position Accuracy Screen
14. Enter the desired Accuracy Threshold.
NOTE: The Accuracy Threshold will be populated with a default value that can be changed during the
calibration process. If the GPS solution falls outside the set Accuracy Threshold, a diagnostic trouble
code (DTC) will be recorded in the Diagnostic Trouble Codes screen.
15. Select the Next arrow.
